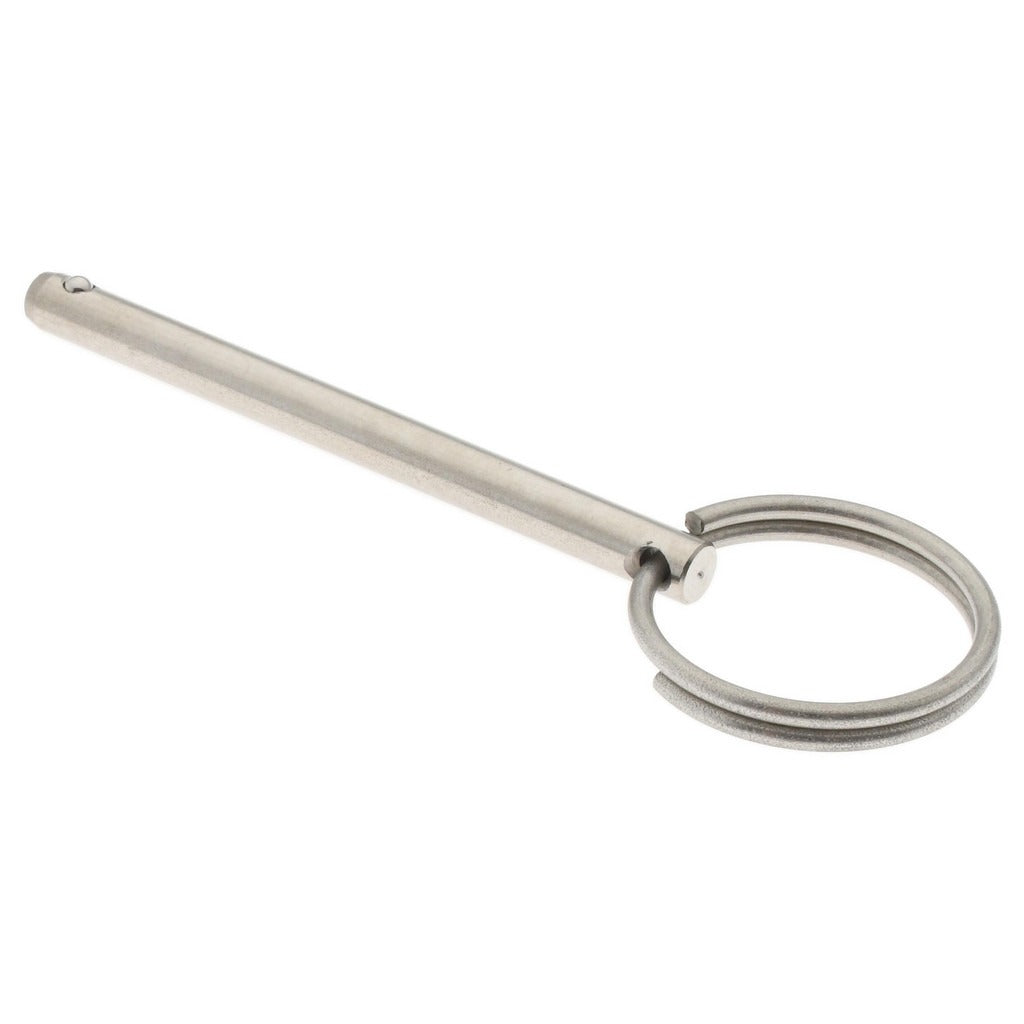

Gibraltar mrq-ss-1017 Ball Lock Hitch Pin 3/16 in

Product Description

The GIBRALTAR mrq-ss-1017 is a ball lock hitch pin designed for quick-connect and quick-release fastening applications in industrial, mechanical, and trade service environments. The pin measures 0.1875 inches in diameter and 2.1875 inches in overall length, with 2 inches of usable length for reliable engagement. Constructed from stainless steel with a zinc finish, it delivers corrosion resistance suited to both indoor and outdoor use. The ball lock mechanism allows tool-free insertion and removal, making it practical for repetitive assembly, jigs, fixtures, and equipment linkages where fast part changes are required.

This hitch pin is suited for use in general mechanical assemblies, maintenance fixtures, agricultural equipment connections, and industrial tooling setups. Its compact 3/16-inch diameter profile fits lighter-duty pin holes and clevis-style connections commonly found in HVAC equipment panels, pool equipment linkages, and plumbing access fixtures. Installers and technicians who work with removable panels, gates, or linkage arms will find the ball lock design reduces installation time compared to traditional cotter pin configurations.

Key Features

• Ball lock mechanism allows tool-free, quick-release operation
• Stainless steel construction with zinc finish for corrosion resistance
• 3/16 inch pin diameter fits standard light-duty clevis and hitch applications
• 2 inches of usable length with 2.1875 inches overall length
• Hardness rated 25-34 HRC for reliable wear resistance under repeated use
• Sold individually, no minimum quantity bundle required

Compatibility

Designed as a standard ball lock hitch pin for light-duty mechanical and industrial applications requiring a 3/16 inch diameter pin with 2 inches of usable engagement length.

Installation Notes

Installation requires no special tools — insert the pin through aligned holes and verify the ball lock has seated fully before applying load. Before servicing any equipment, power down electrical systems and relieve any pressure or mechanical tension as required by applicable safety standards. Inspect the ball lock detent and pin shank for wear or deformation before each use. Replace the pin if the ball lock does not seat positively or if the pin shows signs of bending or corrosion damage.
