Gibraltar MLLS-3-PT-G Locking L Handle Plunger M10x1.5

Product Description

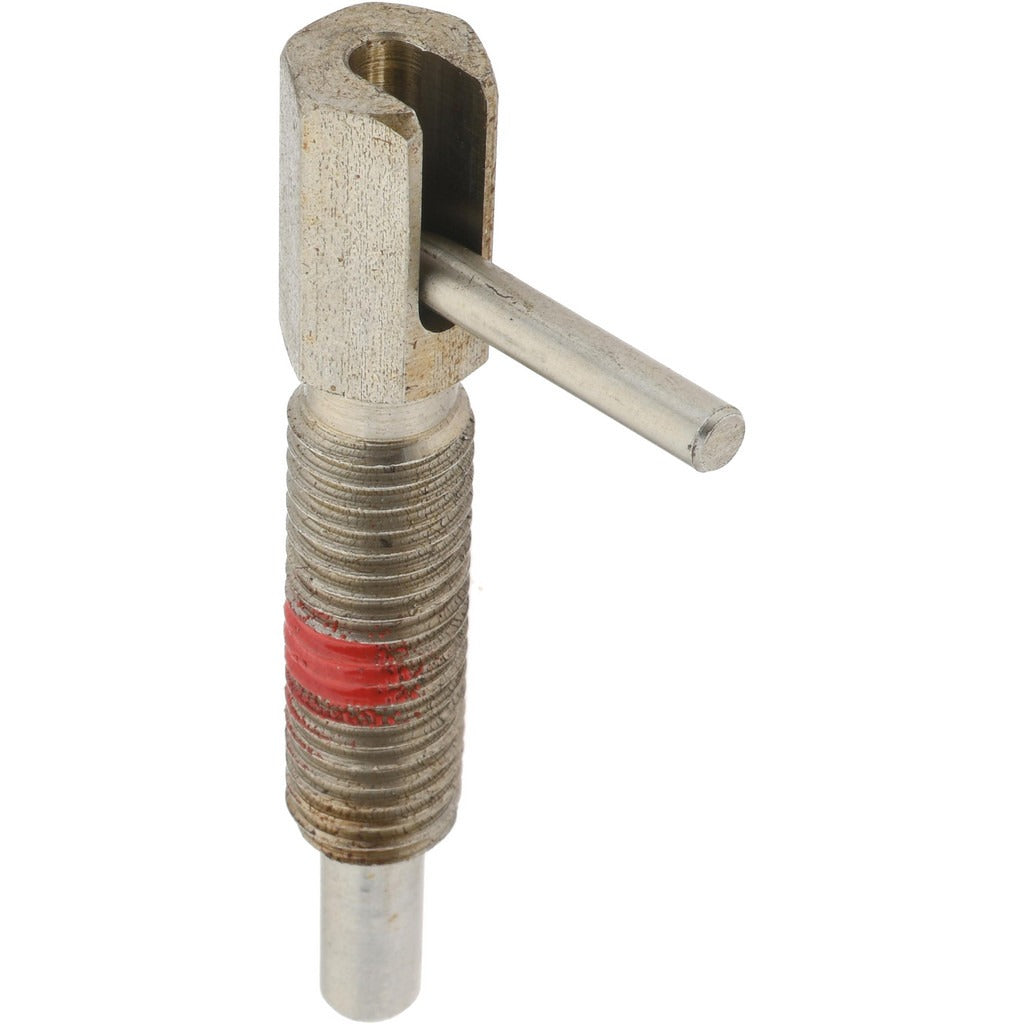

The GIBRALTAR MLLS-3-PT-G is a stainless steel locking L handle plunger designed for use in industrial positioning, fixturing, and clamping applications. The plunger features an M10x1.5 threaded body with a 1.17-inch thread length and a 6mm plunger diameter. The locking mechanism holds the plunger in the retracted position until released, providing controlled engagement with an initial end force of 3.3 N and a final end force of 16.7 N. This component is typically installed by machinists, toolmakers, and maintenance technicians working with jigs, fixtures, or machine enclosures requiring a secure, repeatable plunger stop.

This locking L handle plunger is suited for light industrial machinery, fabrication fixtures, enclosure panels, and tooling applications where a compact, corrosion-resistant plunger with a positive locking feature is required. The stainless steel construction makes it appropriate for environments with exposure to moisture, mild chemicals, or washdown conditions. Its compact body length of 51mm and 14mm plunger projection suit tight-clearance installations.

Key Features

• Locking plunger type holds retracted position until manually released
• Stainless steel handle and body construction for corrosion resistance
• M10x1.5 thread with 1.17-inch thread length for standard metric fastening
• 6mm plunger diameter with 14mm plunger projection
• Initial end force of 3.3 N, final end force of 16.7 N
• Compact 51mm body length and 33mm length under head for tight-clearance use

Compatibility

Designed as a standard metric locking plunger for industrial jigs, fixtures, enclosures, and machinery panels accepting an M10x1.5 threaded plunger with a 6mm plunger diameter.

Installation Notes

Installation is performed by threading the plunger body into a tapped M10x1.5 hole to the specified engagement depth. Ensure the mating hole is properly tapped and free of debris before installation. A 10mm hex is provided for tightening with a wrench. Disengage the locking element and verify free plunger movement after installation before returning the assembly to service.
