Gibraltar MLLS-3-G Locking L Handle Plunger M10x1.5

Product Description

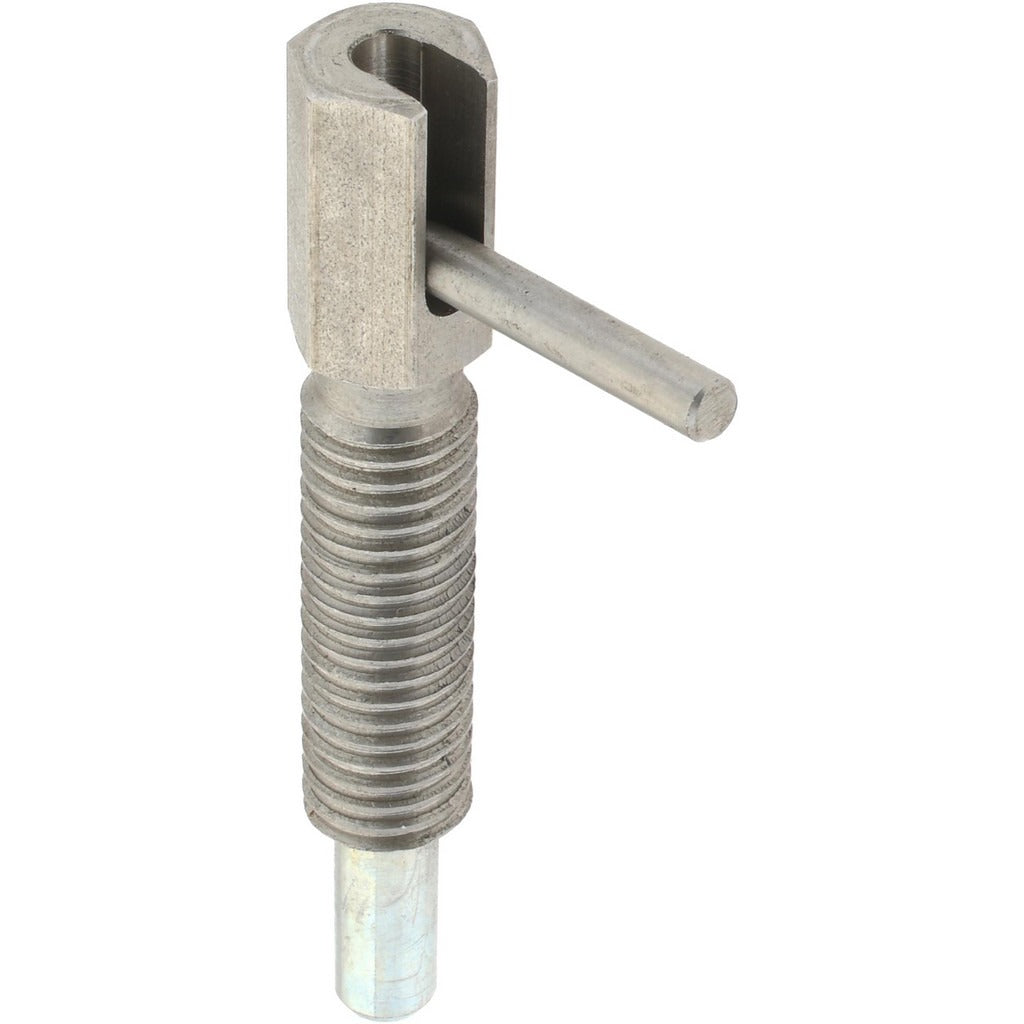

The GIBRALTAR MLLS-3-G is a locking L handle plunger with an M10x1.5 thread and a stainless steel handle, designed for use in mechanical assemblies, fixtures, and industrial equipment where a secure, hand-adjustable locking action is required. The plunger delivers an initial end force of 3.3 N and a final end force of 16.7 N, providing firm, controlled engagement. With a 6mm plunger diameter and a total body length of 51mm, this plunger is sized for compact mounting applications. Mechanical technicians and maintenance professionals install this type of hardware in positioning, clamping, and indexing mechanisms across a range of industrial settings.

The MLLS-3-G is suited for light industrial and precision mechanical applications where a hand-operated, threaded plunger is needed to lock a component in position. The locking L handle style allows the user to apply torque by hand for positive retention without additional tools. The stainless steel handle construction makes it appropriate for environments where corrosion resistance is a factor, such as wet or washdown areas, food-grade equipment frames, or outdoor-exposed assemblies.

Key Features

• M10x1.5 thread with 1.17 inches (29.72mm) thread length for secure threaded engagement
• 6mm plunger diameter with 14mm plunger projection for controlled depth actuation
• Locking L handle in stainless steel for corrosion resistance and hand-tightening capability
• Initial end force of 3.3 N ramping to final end force of 16.7 N for firm, consistent locking
• 51mm body length and 33mm length under head for compact installation in tight assemblies
• Lightweight at 0.05 pounds, minimizing added mass in sensitive equipment

Compatibility

Designed as a direct-fit threaded plunger for mechanical assemblies, fixtures, and indexing equipment accepting an M10x1.5 threaded locking plunger with a 6mm plunger diameter.

Installation Notes

Installation is performed by threading the MLLS-3-G into a tapped M10x1.5 hole to the required depth, then tightening the L handle by hand. Ensure the mating thread is clean and free of debris before installation. Verify the plunger projection and body length are compatible with the assembly clearance before fully seating the component. No power tools are required for standard installation; apply only hand torque through the L handle to avoid thread damage.
