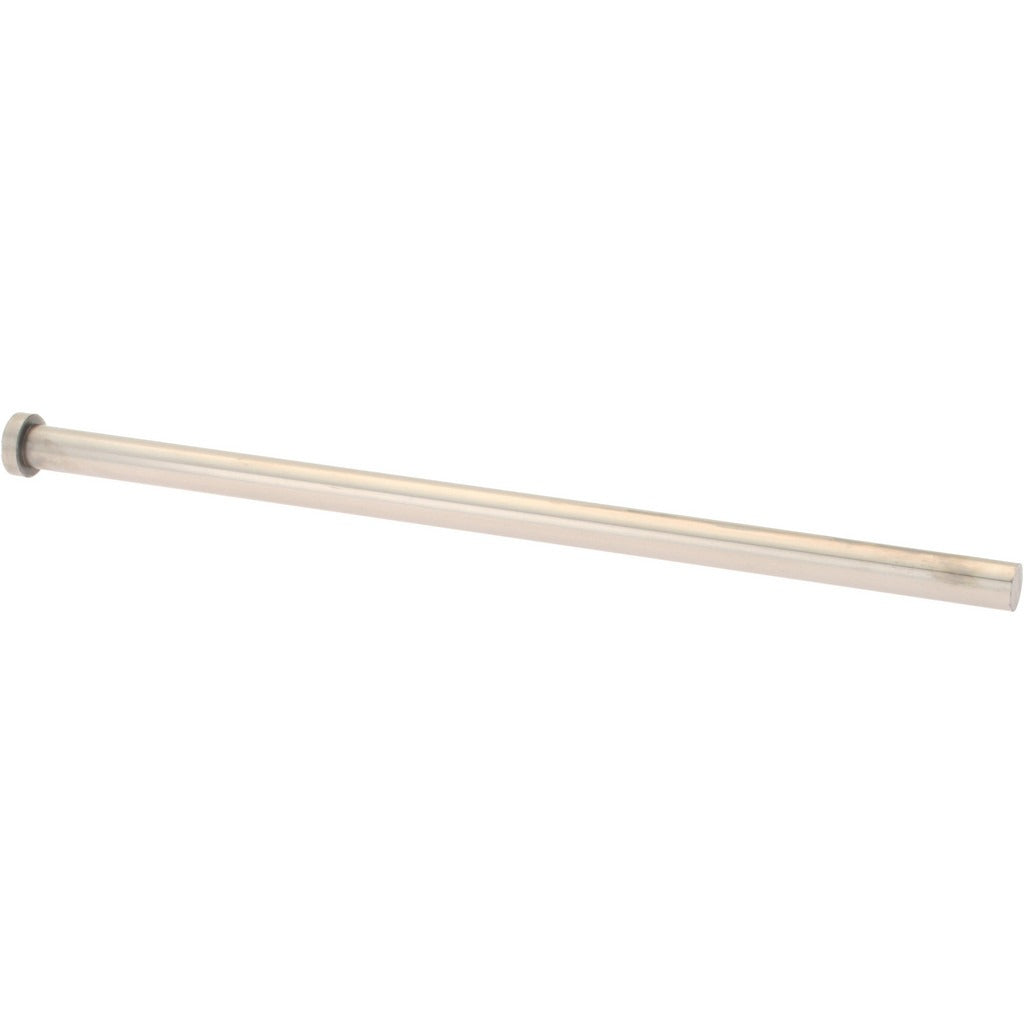

Gibraltar MEP1092-G Straight Ejector Pin 11mm 250mm Steel

Product Description

The GIBRALTAR MEP1092-G is a straight ejector pin used in injection mold tooling to push finished parts out of a mold cavity at the end of each cycle. The pin measures 11 mm (0.433 inches) in diameter with an overall length of 250 mm (9.84 inches), a head diameter of 16 mm (0.630 inches), and a head height of 5 mm (0.197 inches). It is manufactured from steel with a nitride finish, which increases surface hardness and wear resistance for extended service in high-cycle mold applications. This component is installed by moldmakers, toolroom machinists, and mold maintenance technicians working on plastic injection molds.

This ejector pin is suited for use in injection mold bases and tooling where a straight ejector pin with an 11 mm shank diameter and 245 mm pin length is specified. Typical applications include production injection molds in both prototype and production environments. The nitride finish makes this pin appropriate for molds running abrasive or glass-filled resins where wear on ejector components is accelerated. Toolroom personnel will find this pin dimensioned to standard mold component specifications for straightforward drop-in replacement or new mold builds.

Key Features

• 11 mm pin diameter for precise fit in standard ejector pin bores
• 250 mm overall length with 245 mm usable pin length
• 16 mm head diameter and 5 mm head height for positive retention in ejector plates
• Steel construction with nitride finish for improved surface hardness and wear resistance
• Straight ejector pin geometry for direct-push part ejection

Compatibility

Designed as a standard straight ejector pin for injection mold tooling requiring an 11 mm pin diameter and 250 mm overall length. Confirm bore diameter, pin length, head diameter, and head height against the mold drawing before installation.

Installation Notes

Ejector pins are installed and replaced by qualified moldmakers or toolroom technicians. Before servicing an injection mold, ensure the mold is fully cooled, the molding machine is locked out and tagged out per facility LOTO procedures, and all hydraulic or pneumatic ejector circuits are depressurized. Check the ejector pin bore for wear or galling before installing a replacement pin, and verify the pin slides freely without binding through the full ejection stroke.
