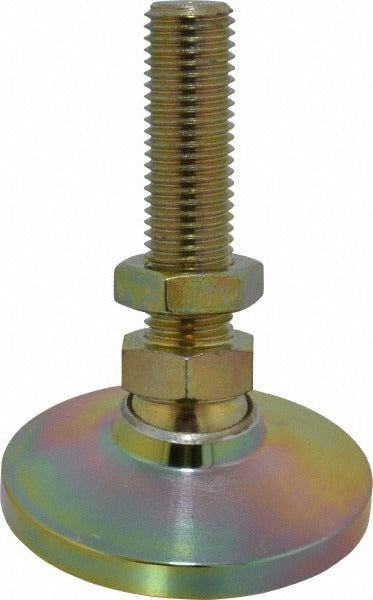

Gibraltar MB-SW5-G Studded Pivotal Leveling Mount M24

Product Description

The GIBRALTAR MB-SW5-G is a studded pivotal leveling mount designed to provide stable, adjustable support for industrial machinery, equipment frames, and fabricated assemblies. It features a steel pad base with a steel stud and accepts an M24 bolt thread. The mount offers a load capacity of 9,072 kg with a 101 mm base diameter and a total length of 136 mm, including an 89 mm thread length. The pivotal design allows for angular adjustment to compensate for uneven floors or misaligned mounting surfaces. This type of hardware is typically installed by millwrights, maintenance technicians, and industrial contractors during equipment installation or relocation.

This leveling mount is suited for use in industrial and commercial settings where heavy equipment must be leveled and stabilized on concrete or finished floor surfaces. Typical applications include machine tools, conveyors, compressors, fabrication tables, and other stationary equipment that requires vibration isolation or precise floor-level alignment. The steel pad and stud construction is appropriate for environments with moderate to heavy static loads and regular access for periodic adjustment.

Key Features

• Pivotal pad design allows angular adjustment to accommodate uneven or sloped floor surfaces
• 9,072 kg load capacity supports heavy industrial machinery and equipment frames
• M24 bolt thread is a standard metric size compatible with common machine bases and frames
• 101 mm steel base pad distributes load across the floor contact area
• 136 mm total length with 89 mm thread length provides sufficient height adjustment range
• Steel pad and stud construction for durability in industrial environments

Compatibility

Designed as an OEM-style replacement or direct-use leveling mount for industrial equipment requiring M24 studded pivotal mounts with a 101 mm base diameter and 9,072 kg load capacity.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using standard metric wrenches. Before installing or adjusting leveling mounts, de-energize and lock out any associated equipment per applicable OSHA lockout/tagout procedures. Ensure the floor surface is capable of supporting the rated load before final positioning. Periodically re-check leveling and fastener torque after initial equipment startup as settling may occur.
