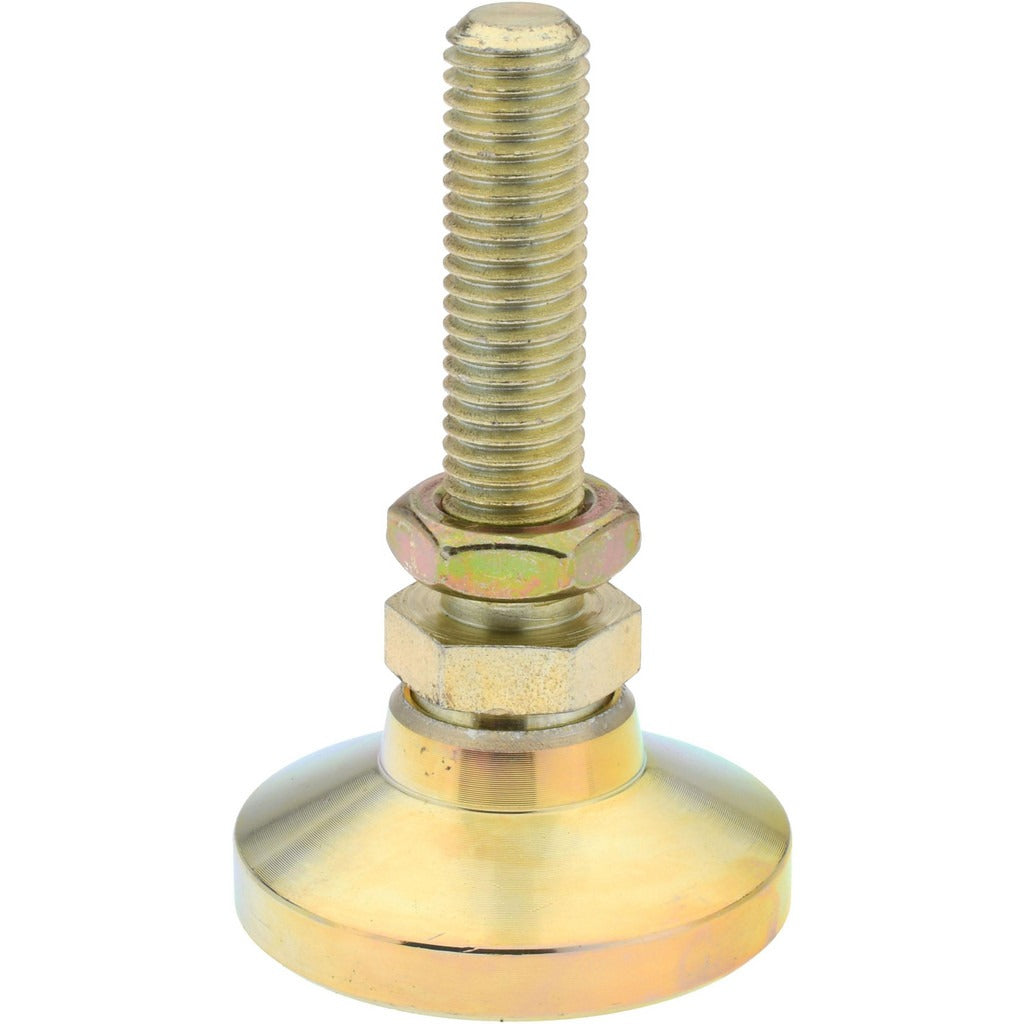

Gibraltar MB-SW2-G Studded Pivotal Leveling Mount M12

Product Description

The GIBRALTAR MB-SW2-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The pivotal base allows angular adjustment so the mount compensates for uneven or sloped mounting surfaces without shimming. Built from steel with a steel stud and steel pad, this mount handles a load capacity of 2,268 kilograms. The M12 bolt thread size fits standard metric fastener patterns. With an overall length of 79.0 inches and a thread length of approximately 51 millimeters, it offers meaningful height adjustment range for leveling applications. Millwrights, machine installers, and maintenance technicians are the primary installers of this hardware.

The MB-SW2-G is suited for use in industrial and commercial settings where equipment must be leveled on concrete floors, steel bases, or structural platforms. Typical applications include machine tool bases, conveyor supports, pump skids, compressor frames, and similar mechanical equipment installations. The 47.6-millimeter base diameter provides a compact footprint while the pivotal pad design maintains full contact with the floor surface even when the stud is not perfectly vertical. This mount ships as a single unit.

Key Features

• Pivotal base pad maintains full surface contact on uneven or angled floors
• M12 threaded steel stud for compatibility with standard metric fastener patterns
• 2,268 kg load capacity for heavy industrial equipment support
• Steel construction throughout for durability in industrial environments
• 47.6 mm base diameter provides a stable, compact footprint
• Single-piece unit with no assembly required before installation

Compatibility

Designed as an OEM-style leveling mount for industrial machinery, equipment frames, and structural bases requiring M12 metric threaded leveling hardware.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians during machine commissioning or relocation. De-energize and lock out all power sources to the equipment before positioning or adjusting leveling mounts. Use an appropriate metric wrench or socket on the M12 stud to set height, and tighten jam nuts or locking hardware per the equipment manufacturer's specifications. Verify level in two axes with a precision level before final lockdown.
