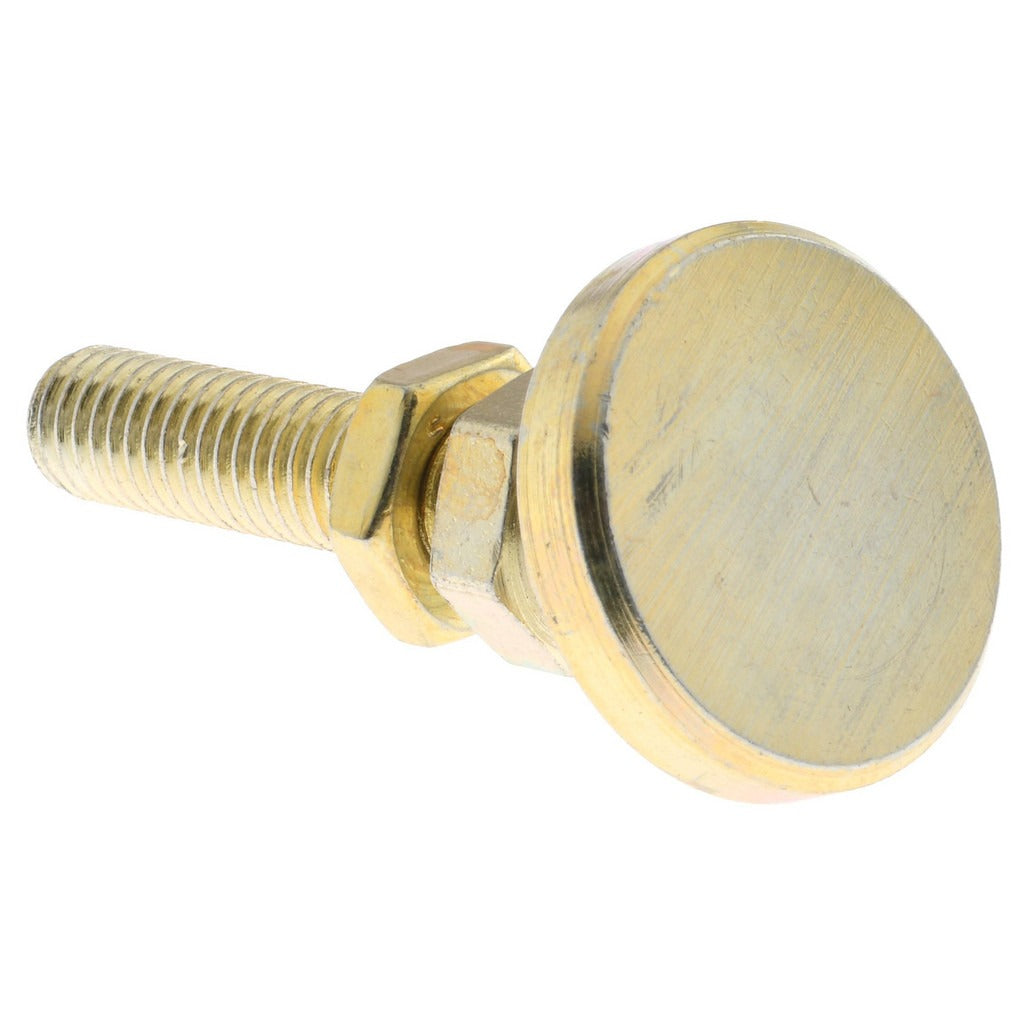

Gibraltar MB-SW0-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR MB-SW0-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. It features a steel pad base and a threaded steel stud, allowing technicians to fine-tune equipment level on uneven surfaces. The base diameter measures approximately 1 inch (25.5 mm) and the overall length is 49.6 mm. With a load capacity of 453 kg, this mount is built for demanding environments where reliable equipment positioning is required. Installation is handled by millwrights, maintenance technicians, or industrial mechanics as part of equipment setup and alignment work.

This leveling mount is suited for use in light to medium industrial applications where machinery, enclosures, or structural frames require height adjustment and vibration isolation at the base. The pivotal pad design allows the mount to self-adjust to minor floor irregularities, maintaining firm contact across the base footprint. The M8 bolt thread size makes integration with standard metric-threaded equipment feet and mounting plates straightforward.

Key Features

• 453 kg load capacity for reliable support of machinery and equipment
• Steel pad and steel stud construction for durability in industrial environments
• Pivotal base self-adjusts to minor floor surface variations
• M8 thread size for compatibility with standard metric mounting configurations
• 25.5 mm base diameter with a 49.6 mm overall length for compact fitment
• Sold individually, one mount per package

Compatibility

Designed as a general-purpose metric leveling mount for use with machinery, equipment bases, and structural frames requiring M8 threaded leveling feet.

Installation Notes

Installation is typically performed by maintenance technicians or millwrights during equipment setup or realignment. Power down and de-energize any associated equipment before beginning leveling work. Use appropriate metric wrenches for threading the stud into the equipment base plate and securing the lock nut once level is achieved. Verify floor surface condition and load distribution across all mount points before returning equipment to service.
