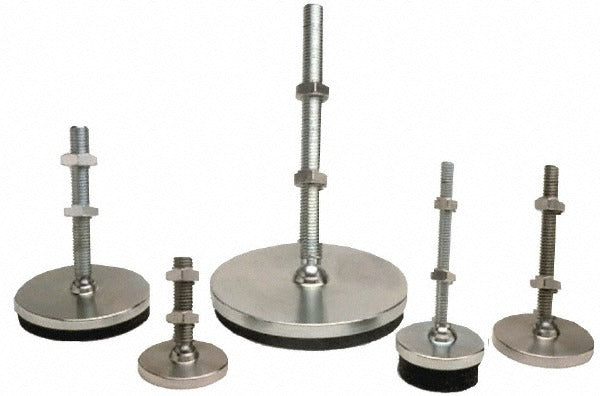

Gibraltar LP4-C6L-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP4-C6L-G is a studded pivotal leveling mount designed to support and level industrial equipment, machinery bases, and fabricated assemblies. Rated for 4,500 pounds of load capacity, it uses a rubber pad on a 4-inch diameter base to isolate vibration and protect flooring surfaces. The steel stud allows height and angle adjustment, accommodating uneven floors and reducing the need for shimming. This type of mount is commonly installed by millwrights, mechanical contractors, and maintenance technicians working on equipment positioning and alignment tasks.

The LP4-C6L-G is suited for use in manufacturing, mechanical rooms, and commercial facilities where heavy equipment must be leveled and stabilized on concrete or hard flooring. Its pivoting design compensates for minor angular misalignment between the floor surface and the equipment base. The rubber pad provides a non-slip contact point that also absorbs minor shock loads during operation. Overall assembly length is 7-43/64 inches. It is packaged individually and sold as a single unit.

Key Features

• 4,500 pound rated load capacity for heavy equipment support
• 4-inch diameter base distributes load across a wide contact area
• Rubber pad provides vibration isolation and floor protection
• Steel stud construction for durability under sustained static loads
• Pivoting design compensates for minor floor irregularities
• Adjustable height to eliminate shimming on uneven surfaces

Compatibility

Designed as a standard studded pivotal leveling mount suitable for machinery bases, equipment frames, and fabricated steel structures requiring a 5/8-11 bolt thread stud mount.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians using standard hand tools. Ensure the mating tapped hole or mounting plate is properly sized for the 5/8-11 thread before installing the stud. Confirm the equipment is fully de-energized and any stored mechanical energy is released before adjusting or positioning leveling mounts. Tighten lock hardware to secure final level position once alignment is confirmed.
