Gibraltar LP4-C3H-G Studded Pivotal Leveling Mount

Product Description

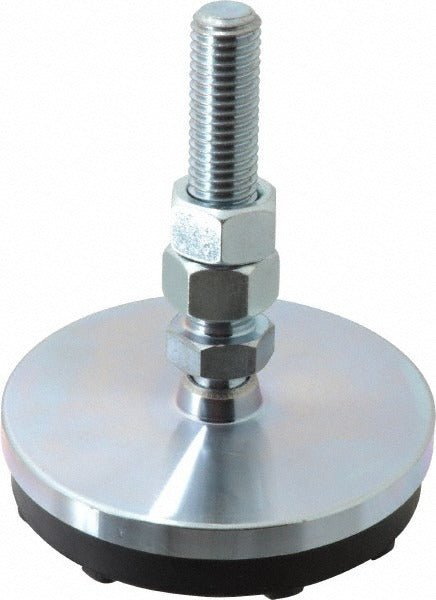

The GIBRALTAR LP4-C3H-G is a studded pivotal leveling mount designed to provide stable, adjustable support for industrial equipment, machinery, and fabricated assemblies. The pivoting rubber pad base allows the foot to self-align with uneven floor surfaces, reducing stress concentrations at the mounting point. The steel stud threads into the equipment frame or base plate, and the 4-inch diameter rubber pad distributes load across the contact surface. Rated for up to 5,000 lb load capacity, this mount suits heavy-duty stationary equipment installations. Millwrights, maintenance technicians, and fabricators are the typical installers.

This leveling mount is used in industrial and commercial settings where precise machine leveling is required on concrete or hard floor surfaces. The pivotal base design accommodates slight floor irregularities without requiring a perfectly flat installation surface. The 5/8-11 bolt thread size is a standard industrial fastener specification, making the mount compatible with common equipment base designs. It is appropriate for machine tools, compressors, generators, pumps, and similar stationary equipment requiring vibration isolation and level adjustment.

Key Features

• 5,000 lb rated load capacity for heavy stationary equipment support
• Pivoting rubber pad base self-aligns to uneven floor surfaces
• 4-inch base diameter distributes load across a broad contact area
• Steel stud with 5/8-11 thread size fits common industrial base plate configurations
• Overall length of 4-13/16 inches provides leveling range for standard equipment feet installations
• Rubber pad base helps dampen vibration transmission to the floor

Compatibility

Designed as a standard industrial leveling mount suitable for heavy machinery, compressors, generators, and fabricated equipment bases requiring a 5/8-11 threaded stud mount with a 4-inch diameter base pad.

Installation Notes

Installation is typically performed by a millwright or maintenance technician. De-energize and lock out all power to the equipment before lifting or repositioning to install or replace leveling mounts. Use a properly rated jack or lifting device when adjusting equipment height. Thread the steel stud into the equipment base plate to the required depth and secure with a jam nut where applicable, then adjust mount height to achieve level equipment positioning before applying full load.
