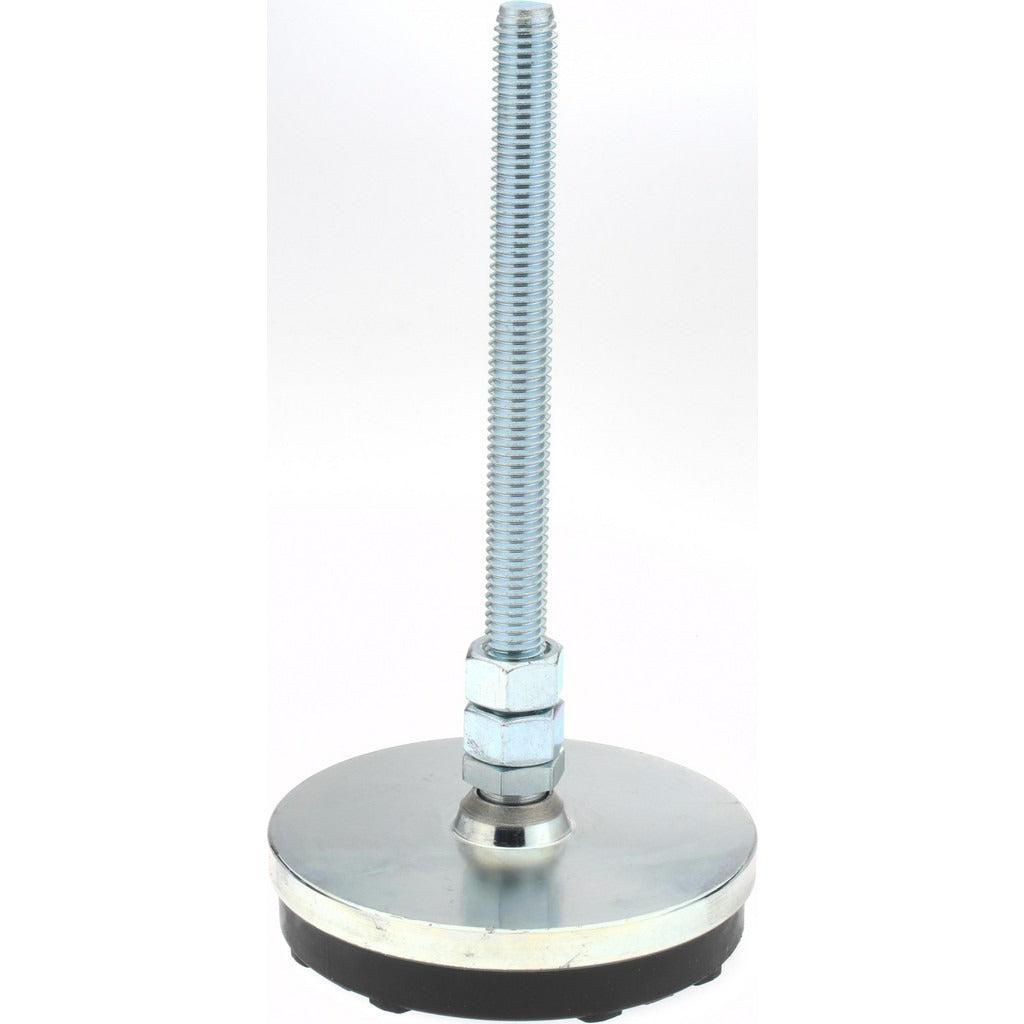

Gibraltar LP4-B6H-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP4-B6H-G is a studded pivotal leveling mount designed to support and level heavy equipment in industrial and commercial applications. The mount features a steel stud with a 1/2-13 bolt thread size and a rubber pad base that provides grip and vibration damping on contact surfaces. It carries a load capacity of 3,500 pounds and measures 7-13/16 inches in length with a 4-inch base diameter. The pivotal design allows for angular adjustment, making it useful where floors or mounting surfaces are not perfectly flat. Installers in maintenance, manufacturing, and facility management trades use this type of mount for machinery, enclosures, and equipment bases.

This leveling mount is suited for stationary equipment installations in industrial plants, commercial facilities, and heavy-duty service environments. The rubber pad helps protect finished or coated floor surfaces while maintaining stable contact under load. The steel stud threads into a tapped hole or nut in the equipment base, allowing height and angle adjustment during installation. It is sold individually and is appropriate for applications requiring precise leveling of equipment up to 3,500 pounds per mount point.

Key Features

• 3,500 lb load capacity per mount for heavy equipment support
• Pivotal base design allows angular adjustment on uneven surfaces
• Rubber pad base provides grip and reduces vibration transmission
• Steel stud construction for durability under sustained load
• 1/2-13 bolt thread size for compatibility with standard tapped hardware
• 4-inch base diameter distributes load across the contact surface

Compatibility

Designed as a general-purpose studded pivotal leveling mount for industrial and commercial equipment requiring a 1/2-13 threaded stud mount point and a 4-inch rubber pad base.

Installation Notes

Installation is typically performed by maintenance technicians or millwrights during equipment setup or repositioning. Power down and de-energize any connected equipment before adjusting or replacing leveling mounts. Thread the steel stud into a properly sized tapped hole or coupling nut in the equipment base, and use a wrench to lock the mount at the desired height. Verify load distribution across all mount points before returning equipment to service.
