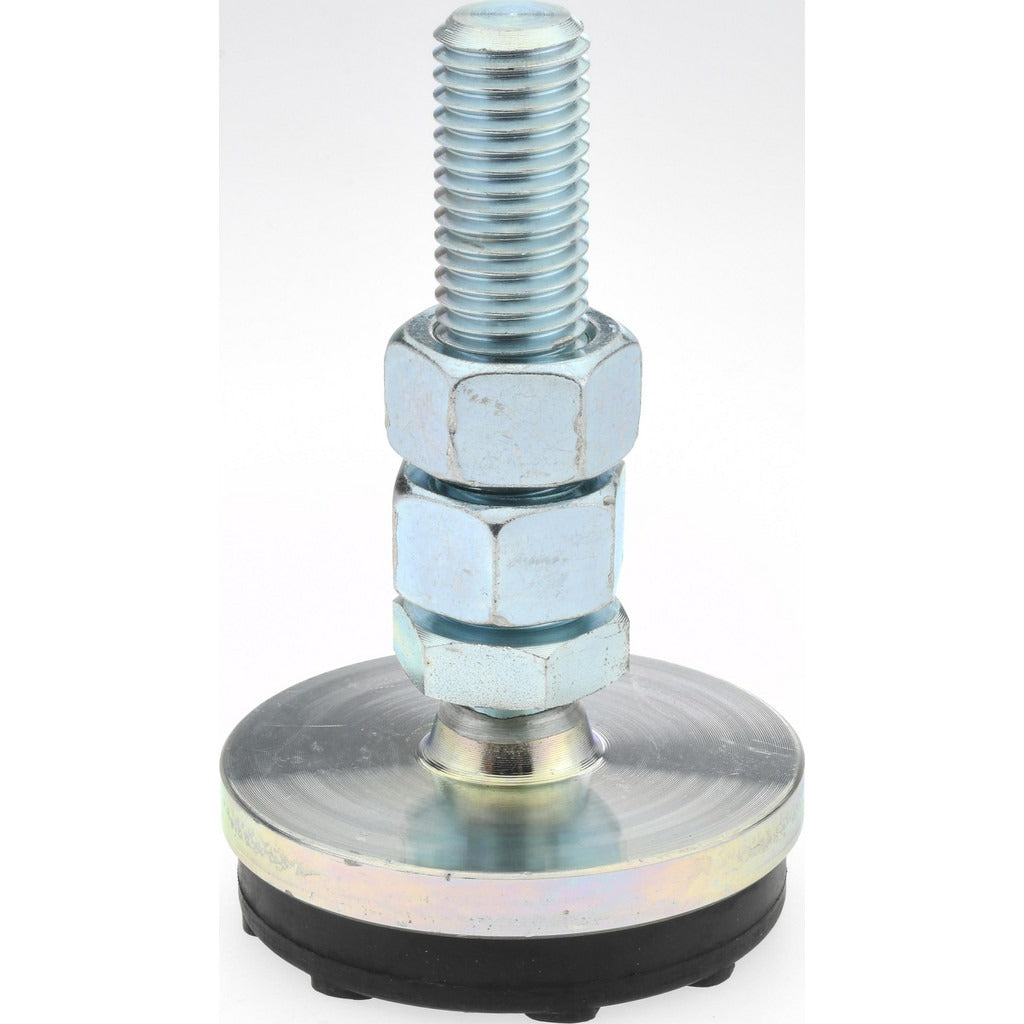

Gibraltar LP3-D3H-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP3-D3H-G is a studded pivotal leveling mount designed to support and level heavy equipment in industrial and commercial applications. It features a 3-inch base diameter rubber pad bonded to a steel stud, providing vibration damping and stable footing on hard floors. The mount carries a rated load capacity of 6,000 pounds and measures 4-13/16 inches in length. Licensed tradespeople and millwrights install these mounts beneath machinery, compressors, pumps, and structural frames where precise leveling and floor protection are required.

This leveling mount is suited for stationary equipment installations in manufacturing facilities, mechanical rooms, and equipment pads. The pivotal base allows for minor angular adjustment, compensating for uneven floor surfaces without requiring shims. The 3/4-10 bolt thread size accommodates standard mounting hole patterns on a wide range of heavy equipment bases. It is typically installed during initial equipment placement or during realignment service calls.

Key Features

• 6,000 lb rated load capacity for heavy industrial and commercial equipment
• 3-inch base diameter rubber pad reduces vibration transmission to floor surface
• Steel stud construction provides rigid, durable support under sustained load
• Pivotal base design compensates for minor floor irregularities
• 3/4-10 bolt thread size fits standard equipment mounting patterns
• 4-13/16 inch overall length accommodates typical equipment base clearances

Compatibility

Designed as a general-purpose OEM-style leveling mount for heavy machinery and equipment requiring a 3/4-10 studded mount with a 3-inch rubber base pad and a minimum 6,000 lb load rating.

Installation Notes

Installation is typically performed by millwrights or qualified maintenance technicians. De-energize and lock out all power to equipment before positioning or adjusting mounts. Use appropriate lifting equipment to raise the machinery before threading mounts into position, and confirm the stud is fully engaged and the rubber pad seats flush on a clean, dry floor surface. Verify level with a precision level instrument after final load is applied.
