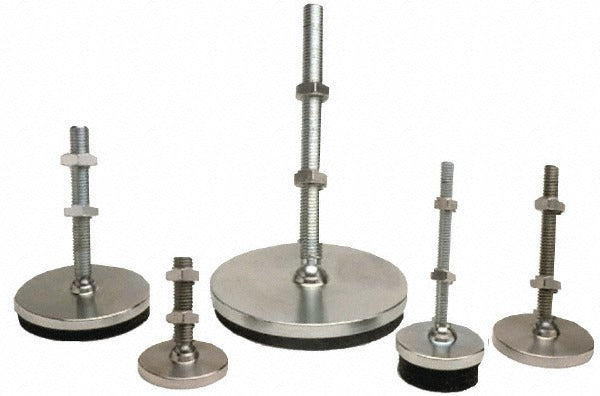

Gibraltar LP3-C6-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR LP3-C6-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial workstations. It features a 5,000 lb static load capacity, a 3-inch diameter steel pad base, and a steel stud measuring 7.25 inches in length with a 5/8-11 bolt thread size. The pivoting base allows the mount to compensate for uneven or slightly angled floor surfaces, maintaining level contact under load. This type of mount is installed by millwrights, maintenance technicians, and industrial mechanics during equipment setup and positioning.

This leveling mount is suited for use in commercial and industrial settings where heavy equipment must be anchored or leveled on concrete, steel, or finished floor surfaces. Typical applications include machine tool bases, conveyor frames, workbenches, compressors, and similar stationary equipment. The studded design threads directly into a tapped hole in the equipment base, eliminating the need for a separate mounting nut in many configurations. The pivotal pad helps distribute load evenly across irregular surfaces.

Key Features

• 5,000 lb static load capacity for heavy industrial equipment support
• Pivoting steel pad base compensates for uneven floor surfaces
• 3-inch base diameter provides stable footprint under load
• 5/8-11 threaded steel stud for direct installation into tapped equipment bases
• 7.25-inch overall length allows for meaningful height adjustment range
• All-steel construction suited for demanding shop and industrial environments

Compatibility

Designed as a direct-thread leveling mount for industrial machinery, equipment frames, and workstation bases with a 5/8-11 tapped mounting hole. Consult equipment documentation to confirm thread engagement depth and load requirements before installation.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics using standard hand tools. De-energize and lockout any associated equipment before positioning or adjusting leveling mounts. Thread the stud into the tapped base hole to the required engagement depth and adjust the pad height before applying full equipment load. Verify level across multiple mount points using a machinist level before final tightening.
