Gibraltar LP3-C3-G Studded Pivotal Leveling Mount 5000 Lb

Product Description

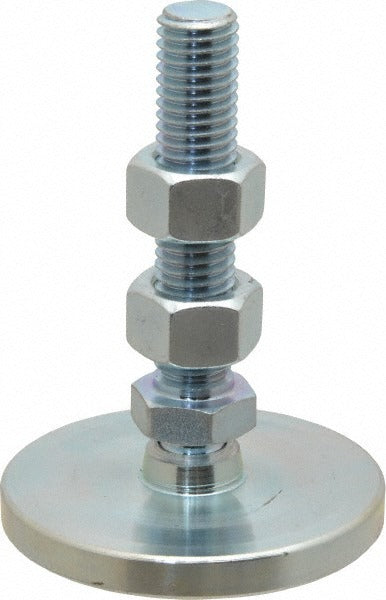

The GIBRALTAR LP3-C3-G is a studded pivotal leveling mount designed to support and level heavy equipment, machinery bases, and industrial assemblies. It features a 3-inch diameter steel pad base and a 5/8-11 threaded steel stud that adjusts to compensate for uneven surfaces. The overall length is 4.25 inches and load capacity is rated at 5,000 lb. The pivoting action of the base pad allows the foot to self-align on sloped or irregular floors, distributing load evenly and maintaining stable contact. Electricians, millwrights, HVAC installers, and general mechanical contractors use this type of mount when setting equipment on concrete or structural surfaces.

This leveling mount is suited for light industrial, commercial, and trade applications where machinery or equipment bases require leveling adjustment and firm floor contact. Typical installations include HVAC unit bases, compressor skids, pump bases, electrical enclosures, and fabricated equipment frames. The steel construction handles the mechanical loads common in mechanical rooms and utility spaces. The pivotal base pad design accommodates minor floor irregularities without shimming.

Key Features

• 5,000 lb rated load capacity for heavy equipment support
• 5/8-11 threaded steel stud for standard bolt-hole compatibility
• 3-inch diameter steel base pad for broad floor contact
• Pivotal pad design self-aligns on uneven or sloped surfaces
• 4.25-inch overall length provides leveling adjustment range
• All-steel construction resists deformation under sustained load

Compatibility

Designed as a standard replacement or new-installation leveling foot for equipment frames, machinery bases, and structural assemblies that accept a 5/8-11 threaded stud mount.

Installation Notes

Installation is typically performed by a millwright, HVAC mechanic, or licensed contractor as part of equipment base setting. De-energize and lock out any equipment before working on its mounting feet. Thread the stud into the equipment base and tighten the jam nut once the desired height and level are achieved. Verify load is distributed evenly across all mounting feet before returning equipment to service.
