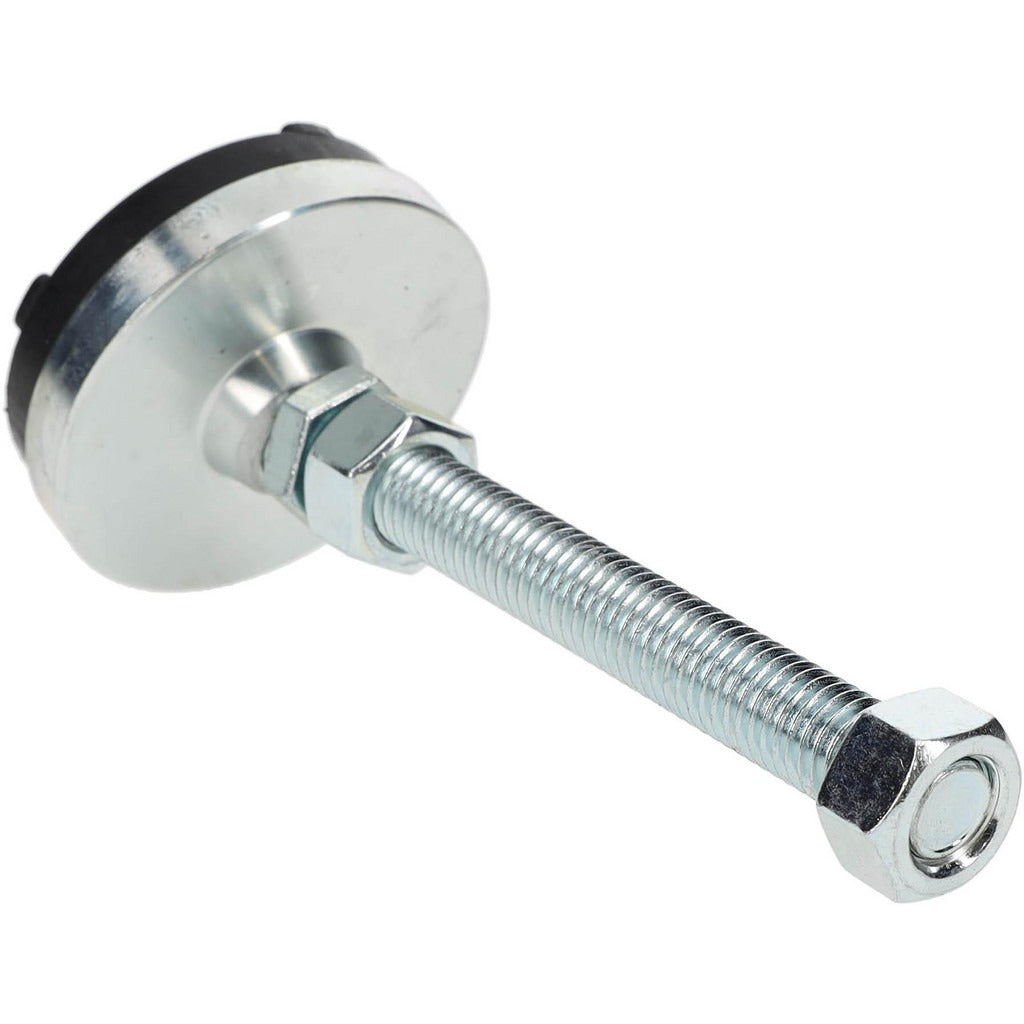

Gibraltar LP2-B4L-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP2-B4L-G is a studded pivotal leveling mount designed to support heavy equipment and machinery on uneven or hard surfaces. It uses a steel threaded stud with a 1/2-13 bolt thread size combined with a rubber pad base to provide stable, vibration-dampening contact with the floor. The mount carries a rated load capacity of 3,000 pounds and measures 2.5 inches in base diameter with an overall length of approximately 5.67 inches. Maintenance technicians and millwrights install this type of hardware during equipment positioning, alignment, and leveling tasks in industrial and commercial settings.

This leveling mount suits applications where heavy stationary equipment requires precise height or angle adjustment. Typical use cases include machine tools, compressors, pumps, workbenches, and other floor-mounted industrial equipment. The pivotal rubber pad accommodates slight angular variation between the base surface and the equipment foot, reducing stress on the stud and maintaining even load distribution across the pad. It is a single-unit item sold individually.

Key Features

• 3,000 lb rated load capacity for heavy-duty equipment support
• 1/2-13 steel threaded stud for secure anchoring to equipment feet
• Pivotal rubber pad base accommodates surface angle variation
• 2.5 inch base diameter distributes load evenly on floor surfaces
• Rubber pad contact reduces vibration transmission to structure
• Overall length of approximately 5.67 inches provides leveling range

Compatibility

Designed as a general-purpose OEM-style leveling mount for stationary industrial and commercial equipment with 1/2-13 threaded mounting feet requiring a load-rated rubber pad leveler.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using standard hand tools. De-energize and lock out equipment before adjusting or installing leveling mounts beneath operating machinery. Thread the stud fully into the equipment foot and adjust height by rotating the mount body, then verify load is evenly distributed across all mount points before returning equipment to service. Follow applicable facility and equipment manufacturer guidelines for final torque and leveling tolerances.
