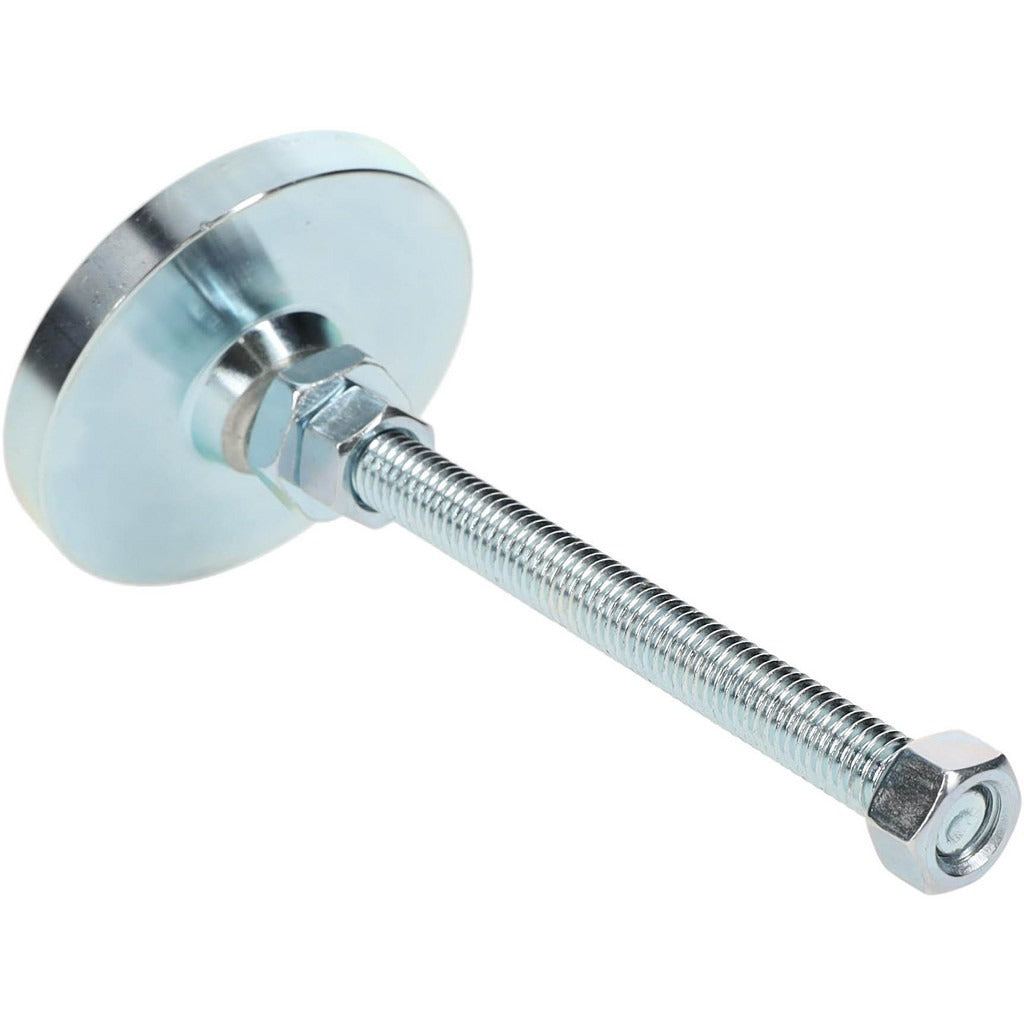

Gibraltar LP2-A4-G Studded Pivotal Leveling Mount 2000 Lb

Product Description

The GIBRALTAR LP2-A4-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial assemblies. The pivotal base allows for angle compensation on uneven floors, while the threaded steel stud provides secure attachment to the equipment leg or frame. With a rated load capacity of 2,000 pounds and a steel pad and stud construction, this mount is built for demanding shop floor, warehouse, and light industrial environments. It measures 5.25 inches in length overall with a 2.5-inch base diameter. Installation is typically performed by millwrights, maintenance technicians, or mechanical contractors during equipment setup or relocation.

This leveling mount is suited for use in industrial and commercial settings where equipment must be leveled on concrete, tile, or similar hard surfaces. Common applications include machine tool bases, workbenches, compressors, HVAC equipment skids, and other heavy stationary assemblies. The 3/8-16 bolt thread size fits standard threaded inserts and equipment legs across a wide range of machinery platforms. It ships as a single unit and is suitable for both new installations and retrofit leveling projects.

Key Features

• 2,000 lb load capacity rated for heavy stationary equipment support
• Pivotal base design compensates for minor floor irregularities and uneven surfaces
• Steel pad and steel stud construction for durability in industrial environments
• 3/8-16 threaded stud fits common equipment leg inserts and frames
• 2.5-inch base diameter distributes load across the floor contact surface
• 5.25-inch overall length provides meaningful vertical adjustment range

Compatibility

Designed as an OEM-style replacement or new-installation leveling mount for machinery, equipment frames, and industrial assemblies using 3/8-16 threaded leg inserts.

Installation Notes

Installation is typically performed by millwrights or mechanical maintenance technicians. Before installing or adjusting leveling mounts, de-energize and lock out all electrical, pneumatic, or hydraulic systems on the equipment per applicable LOTO procedures. Thread the stud into the equipment leg insert and adjust height until the assembly is level, then tighten the jam nut against the leg to secure position. Do not exceed the rated 2,000 lb load capacity per mount.
