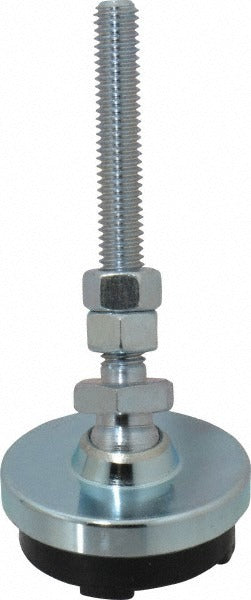

Gibraltar LP1-A3L-G Studded Pivotal Leveling Mount

Product Description

The GIBRALTAR LP1-A3L-G is a studded pivotal leveling mount designed to support and level stationary equipment, machinery bases, and structural frames. The mount features a 3/8-16 threaded steel stud, a 2-inch diameter base, and an overall length of approximately 4-43/64 inches. A rubber pad on the base reduces vibration transmission and protects flooring surfaces. Rated for a 1,500 lb load capacity, this mount is suited for industrial, mechanical, and commercial applications where precise equipment leveling and load stabilization are required. HVAC technicians, plumbers, and equipment installers commonly use leveling mounts during equipment placement and alignment.

This leveling mount is appropriate for use under condensing units, air handlers, compressors, pump bases, and other stationary mechanical equipment that requires floor-level height adjustment. The pivotal base design allows for minor angular compensation on uneven surfaces, helping achieve level positioning without shimming. It is a practical solution for both new equipment installation and retrofit leveling of existing units in residential and light commercial settings.

Key Features

• 1,500 lb rated load capacity supports heavy mechanical equipment
• 3/8-16 threaded steel stud provides secure, adjustable mounting
• 2-inch diameter base distributes load across the contact surface
• Rubber pad reduces vibration transfer and protects floor surfaces
• Pivotal base compensates for minor surface irregularities
• Compact 4-43/64 inch overall length suits tight installation clearances

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for stationary mechanical equipment with 3/8-16 threaded mounting points, including HVAC condensing units, pump bases, and light industrial machinery frames.

Installation Notes

Installation is performed by HVAC technicians, plumbers, or mechanical contractors during equipment placement or scheduled maintenance. Power down and isolate any connected equipment before repositioning or adjusting leveling mounts. Use a wrench sized for the 3/8-16 stud and verify load distribution is even across all mounts before returning equipment to service. Consult applicable mechanical codes for equipment anchor and vibration isolation requirements.
