Gibraltar LN-7-PT-G L Handle Plunger 5/8-11 Steel

Product Description

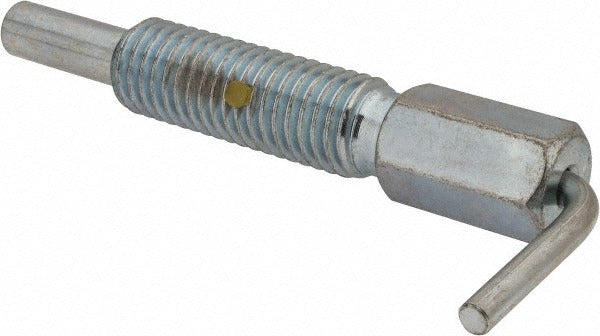

The GIBRALTAR LN-7-PT-G is a steel L handle plunger designed for use in industrial fixtures, jigs, and positioning applications requiring a reliable manual indexing or locating mechanism. The plunger features a 5/8-11 thread with a 1.82 inch thread length and a 0.38 inch plunger diameter. Initial end force is 1 pound, with a final end force of 5 pounds, making it suitable for applications that need firm positive positioning without excessive manual effort. The body measures 3.05 inches in length with a 2 inch length under the head. This component is typically installed by maintenance technicians, toolmakers, and industrial equipment assemblers.

This L handle plunger is used in manufacturing fixtures, machine tool setups, and industrial equipment where a hand-operated plunger is needed to lock or index moving components. The non-locking plunger design allows for quick retraction and release. With a 1 inch plunger projection and a 5/8-11 threaded body, it threads directly into standard tapped holes in steel or aluminum fixtures. It suits both light-duty and moderate-duty applications in production and maintenance environments.

Key Features

• 5/8-11 thread for compatibility with standard tapped fixture holes
• Non-locking plunger type with 1 inch plunger projection for quick engagement and release
• 1 pound initial to 5 pound final end force for positive, controlled positioning
• Steel construction for durability in industrial environments
• L handle design allows tool-free manual operation
• 3.05 inch body length with 2 inch length under head for deep fixture mounting

Compatibility

Designed as a standard threaded plunger for use in industrial fixtures, jigs, and positioning assemblies with 5/8-11 tapped mounting holes.

Installation Notes

Installation is performed by threading the plunger body into a pre-tapped 5/8-11 hole in the fixture or equipment housing. Ensure the mounting surface is clean and free of debris before threading in the plunger. Use appropriate hand tools to achieve secure seating without overtightening. Always de-energize or lock out any associated machinery before servicing plunger components in powered equipment.
