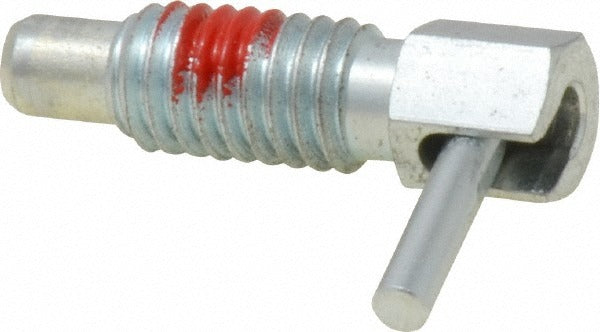

Gibraltar LL-2-PT-G Locking L Handle Plunger 3/8-16

Product Description

The GIBRALTAR LL-2-PT-G is a locking L handle plunger designed for indexing, positioning, and locking applications in industrial and mechanical assemblies. Constructed from steel, it features a 3/8-16 thread and a 0.62-inch thread length. The plunger incorporates a built-in locking element that holds the plunger in the retracted position until released, preventing unintended extension during operation. Initial end force is 0.25 pounds and final end force is 1.25 pounds, making it suitable for light-duty positioning tasks. This type of hardware is typically installed by machinists, maintenance technicians, and equipment assemblers working with fixtures, jigs, and industrial machinery.

The LL-2-PT-G is suited for use in machine tool fixtures, positioning jigs, assembly tooling, and mechanical enclosures where a compact, threaded locking plunger is required. The L-shaped handle provides a positive grip for manual engagement and disengagement without additional tooling. Its steel construction supports use in general industrial environments where moderate force retention and repeatable positioning are needed.

Key Features

• Locking element holds plunger in retracted position until manually released
• 3/8-16 thread for standard tapped hole installation
• Steel construction for durability in industrial service
• Initial end force of 0.25 pounds, final end force of 1.25 pounds for light-duty positioning
• Compact body length of 1.13 inches suitable for space-constrained assemblies
• L handle design allows tool-free manual operation

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures and machine assemblies requiring a 3/8-16 threaded locking L handle plunger with a 0.25-inch plunger diameter.

Installation Notes

Installation is performed by threading the plunger body into a tapped 3/8-16 hole in the mating component. Ensure the receiving hole is clean and free of debris before installation. Lock the plunger body at the desired position using the standard hex interface before placing the assembly into service. Always de-energize or immobilize the machine or fixture before servicing or replacing plunger hardware.
