Gibraltar LL-1-PT-G Locking L Handle Plunger 1/4-20

Product Description

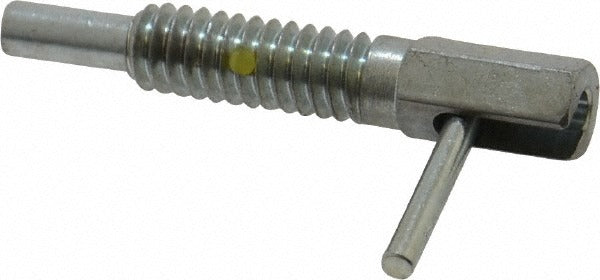

The GIBRALTAR LL-1-PT-G is a locking L handle plunger with a 1/4-20 thread and a steel construction. It is designed for use in positioning, indexing, and holding applications where a secure, lockable plunger is needed. The plunger body measures 1.25 inches in length with a thread length of 0.8 inches. The locking element keeps the plunger retracted or extended during setup and adjustment. Initial end force is 0.5 pounds, with a final end force of 2.5 pounds. Licensed tradespeople and machine maintenance technicians install this type of hardware in industrial, HVAC panel, and equipment enclosure applications.

This plunger is suited for light-duty indexing and locking tasks on jigs, fixtures, enclosures, and equipment panels. The L handle provides a low-profile, tool-free actuation point. The locking element allows the plunger to be held in the retracted position, keeping the tip clear during positioning. Applications span industrial machinery, HVAC equipment cabinets, and electrical enclosure panels where repeatable, hands-free holding is needed without tools.

Key Features

• Locking element holds plunger in retracted or extended position
• 1/4-20 thread for standard tapped-hole installation
• Steel construction for durability in industrial and equipment service environments
• Initial end force of 0.5 pounds rising to a final end force of 2.5 pounds
• Low-profile L handle allows tool-free operation in tight spaces
• Plunger projection of 0.38 inches for positive engagement

Compatibility

Designed as a standard 1/4-20 threaded locking L handle plunger for use in any application requiring a tapped hole of that thread size.

Installation Notes

Installation requires a properly tapped 1/4-20 hole in the mating component. Thread the plunger body in by hand, then use a hex wrench on the 0.25-inch hex to achieve final torque as specified by the equipment manufacturer. Verify the locking element engages and releases smoothly before returning the assembly to service. Disconnect power or de-energize the equipment before accessing internal panels or enclosures during installation.
