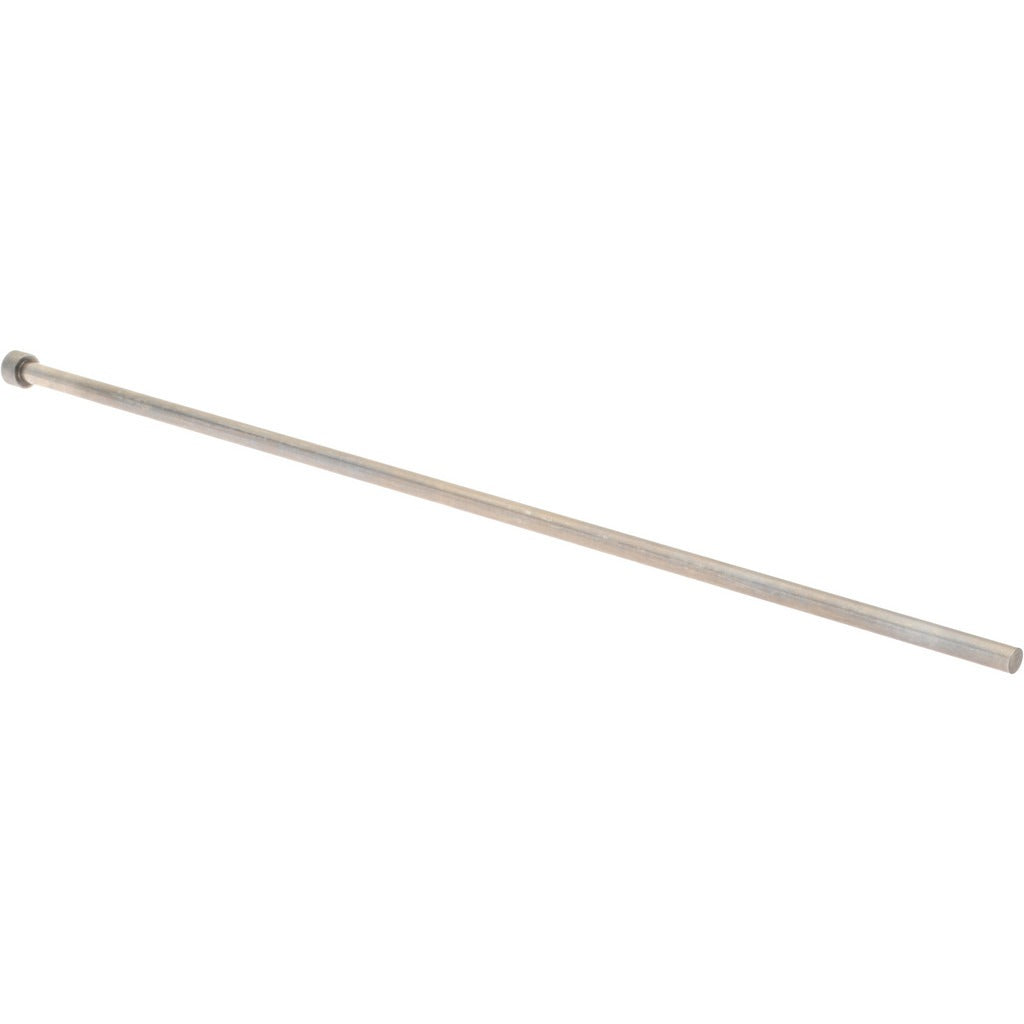

Gibraltar LEP2130-G Straight Ejector Pin 17/64 in Steel

Product Description

The GIBRALTAR LEP2130-G is a straight ejector pin designed for use in injection molds and die casting tooling. It drives molded or cast parts out of the mold cavity at the end of each cycle. The pin measures 17/64 inches in diameter with a 13.75-inch pin length and a 14-inch overall length. The head is 7/16 inches in diameter and 1/4 inch tall, providing a positive seating surface against the ejector plate. Manufactured from steel with a nitride finish, the surface treatment improves hardness and wear resistance for extended service life in high-cycle tooling environments. This component is installed by toolmakers, mold technicians, and die maintenance professionals.

This ejector pin is suited for use in injection mold bases and die casting dies where a straight ejector pin configuration is required. The 17/64-inch diameter and 14-inch overall length make it appropriate for medium-depth mold cavities in both production and prototype tooling applications. The nitride surface finish is particularly useful in abrasive or corrosive molding environments. It is sold individually and is suitable for direct replacement of worn or damaged pins during mold maintenance.

Key Features

• 17/64-inch pin diameter for precise fit in standard ejector pin bushings
• 14-inch overall length with 13.75-inch usable pin length
• 7/16-inch head diameter provides solid contact with ejector plate
• 1/4-inch head height for proper plate retention
• Steel construction with nitride finish for improved surface hardness and wear resistance
• Sold as a single piece, no minimum order beyond one unit

Compatibility

Designed as a standard straight ejector pin for use in injection mold bases and die casting tooling that accepts a 17/64-inch diameter straight ejector pin with a 7/16-inch head diameter.

Installation Notes

Installation is performed by qualified toolmakers or mold maintenance technicians. The mold or die must be fully powered down, cooled, and de-pressurized before disassembly and pin replacement. Verify the replacement pin diameter and length match the existing ejector pin bore and plate thickness before installation. Consult the mold design drawings to confirm head seating depth and plate clearance requirements.
