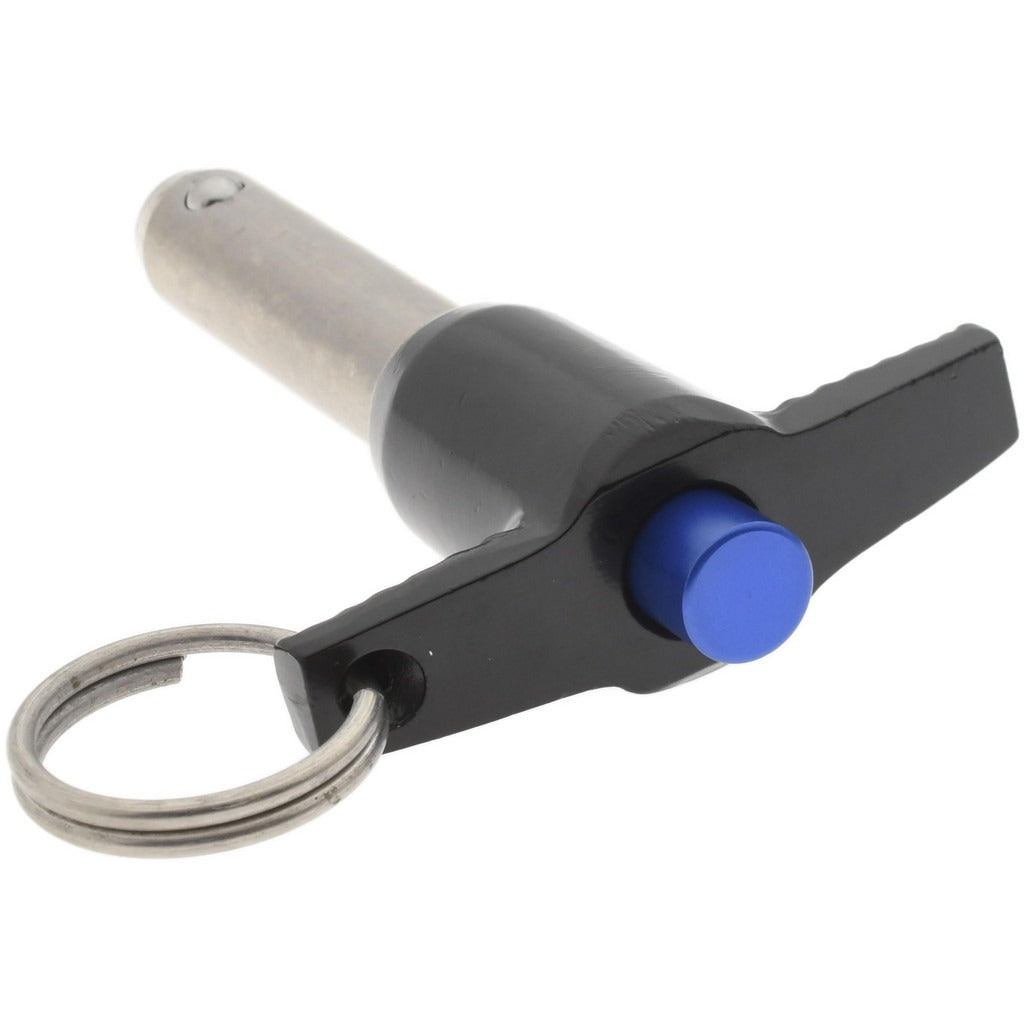

Gibraltar LBT-SS3133 Quick-release T-handle Pin 304 Ss

Product Description

The GIBRALTAR LBT-SS3133 is a T-handle quick-release pin designed for fast, tool-free removal in mechanical assemblies, jigs, fixtures, and industrial equipment. Machined from 304 stainless steel with a bright finish, it provides corrosion resistance suitable for washdown environments and outdoor applications. The pin measures 0.5 inches in diameter with a usable length of 1.5 inches. A spring-loaded ball detent mechanism locks the pin in place under load and releases with a simple pull of the T-handle. Licensed trades and maintenance technicians installing or servicing industrial or HVAC equipment frames, brackets, and panel assemblies will find this pin a reliable fastening solution.

The LBT-SS3133 is suited for use in light to medium-duty mechanical assemblies where frequent disassembly is required. Common applications include equipment panels, access doors, jig fixtures, and support bracket connections. The T-handle configuration allows for hand-tight operation without tools, making it practical in tight-clearance areas. Its 304 stainless steel construction makes it appropriate for light corrosive or humid environments such as rooftop mechanical equipment, pool equipment enclosures, and wet utility spaces.

Key Features

• Quick-release T-handle design allows tool-free installation and removal
• 304 stainless steel construction with bright finish for corrosion resistance
• 0.5 inch pin diameter with 1.5 inch usable length
• Spring-loaded ball detent provides positive locking under load
• Inch-system dimensions for straightforward compatibility with standard hardware

Compatibility

Designed as a standard-dimension quick-release pin for use in mechanical assemblies, fixtures, and equipment frames requiring a 0.5 inch diameter through-hole and 1.5 inch usable engagement length.

Installation Notes

Installation requires no special tools — align the pin with the mating hole and press until the ball detent engages. Before servicing any assembly that uses this pin, ensure equipment is powered down and de-energized per applicable NFPA 70E lockout/tagout procedures. Verify hole diameter and panel thickness match pin specifications before installation. Do not use this pin in applications exceeding its rated shear capacity or where vibration may unseat the detent without additional retention.
