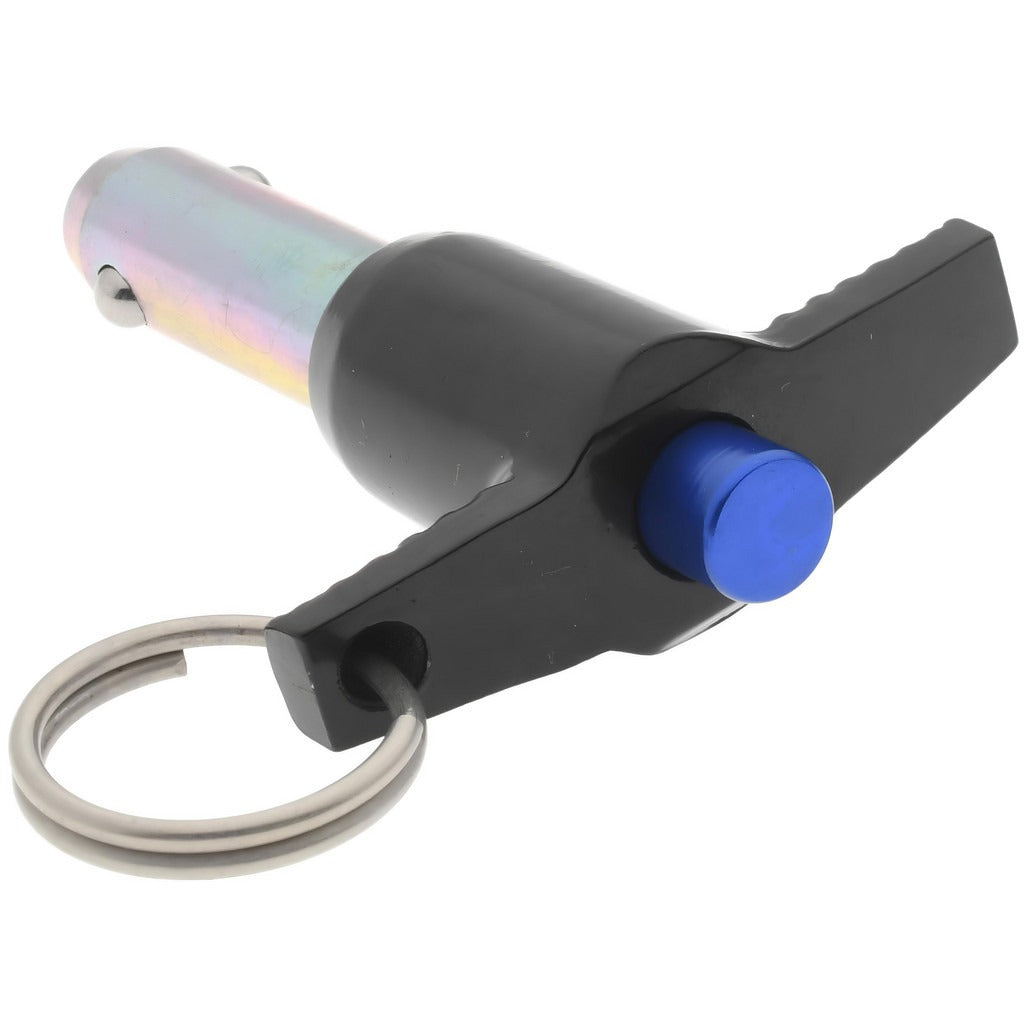

Gibraltar LBT-141 Quick-release T-handle Pin 1/2 in

Product Description

The GIBRALTAR LBT-141 is a T-handle quick-release pin designed for fast, tool-free connection and disconnection in mechanical assemblies, jigs, fixtures, and equipment mounting applications. Built from 4130 alloy steel with a zinc-plated finish, this pin offers solid corrosion resistance and structural integrity under repetitive use. It measures 0.5 inches in pin diameter with 1 inch of usable length, making it suited for compact mounting and locking applications where frequent access is required. Machinists, fabricators, and maintenance technicians typically install this type of hardware on production equipment, carts, and adjustable mechanical structures.

The LBT-141 is used in industrial and light manufacturing environments wherever a secure but quickly releasable pin connection is needed. Common applications include tooling fixtures, equipment panels, safety guards, and adjustable assemblies that require repeated removal and reinstallation without fastener tools. The T-handle design allows hand operation in confined or repetitive-access installations.

Key Features

• T-handle design allows tool-free hand operation for fast pin insertion and removal
• 0.5-inch pin diameter with 1-inch usable length suits compact locking and alignment tasks
• 4130 alloy steel construction provides strength and durability under repetitive load cycling
• Zinc-plated finish adds corrosion resistance for industrial and shop environments
• Inch measurement system for straightforward compatibility with standard imperial tooling and fixtures

Compatibility

Designed as a standard imperial quick-release T-handle pin for use in fixtures, jigs, equipment guards, and adjustable mechanical assemblies requiring a 0.5-inch pin diameter and 1-inch usable length.

Installation Notes

Installation is typically performed by hand without special tools. Ensure the receiving hole diameter is machined or drilled to match the 0.5-inch pin diameter for a proper slip fit before installation. Inspect the detent balls or locking mechanism for full engagement after insertion. Follow applicable equipment lockout and tagout procedures before servicing any assembly that uses this pin in a load-bearing or safety-critical role.
