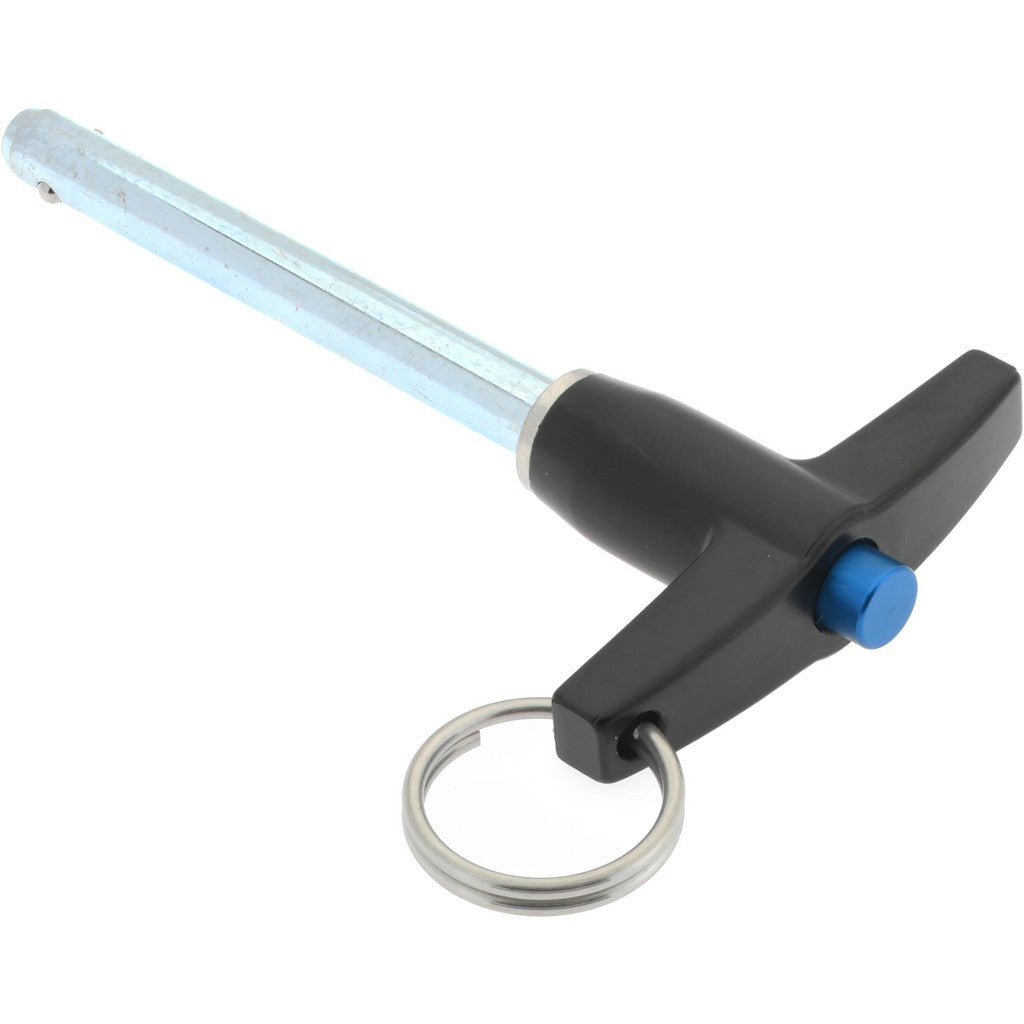

Gibraltar LBT-115 Quick-release T-handle Pin 1/4 in

Product Description

The GIBRALTAR LBT-115 is a quick-release pin with a T-handle, designed for fast, tool-free pin removal in mechanical assemblies, fixtures, and industrial equipment. It features a 0.25-inch pin diameter and 2 inches of usable length, constructed from 4130 alloy steel with a zinc-plated finish for corrosion resistance. The T-handle provides a positive grip for quick insertion and removal without tools. This pin is suited for repeated connect-and-disconnect applications in manufacturing, maintenance, and assembly environments where speed and reliability are required.

The LBT-115 is intended for use in industrial and commercial applications where a quick-connect pin is needed to secure panels, guards, linkages, or adjustable components. Typical installations include jigs, fixtures, machinery guards, and adjustable mechanical assemblies. The zinc-plated finish provides a degree of corrosion protection suitable for general shop and industrial environments. This pin ships as a single unit and is sold individually.

Key Features

• T-handle design allows tool-free insertion and removal
• 0.25-inch pin diameter with 2 inches of usable length
• 4130 alloy steel construction for strength and durability
• Zinc-plated finish for corrosion resistance
• Inch measurement system; sold as a single unit

Compatibility

Designed as a standard-dimension quick-release T-handle pin for use in mechanical assemblies, fixtures, and equipment requiring a 0.25-inch pin diameter with 2 inches of usable length.

Installation Notes

Installation requires no tools; align the pin with the mating hole and push to seat, then pull the release mechanism to remove. Ensure the receiving hole diameter is matched to the 0.25-inch pin diameter before installation. Power down or de-energize any associated machinery before inserting or removing the pin in live equipment. Inspect the pin and locking mechanism for wear or deformation before each use.
