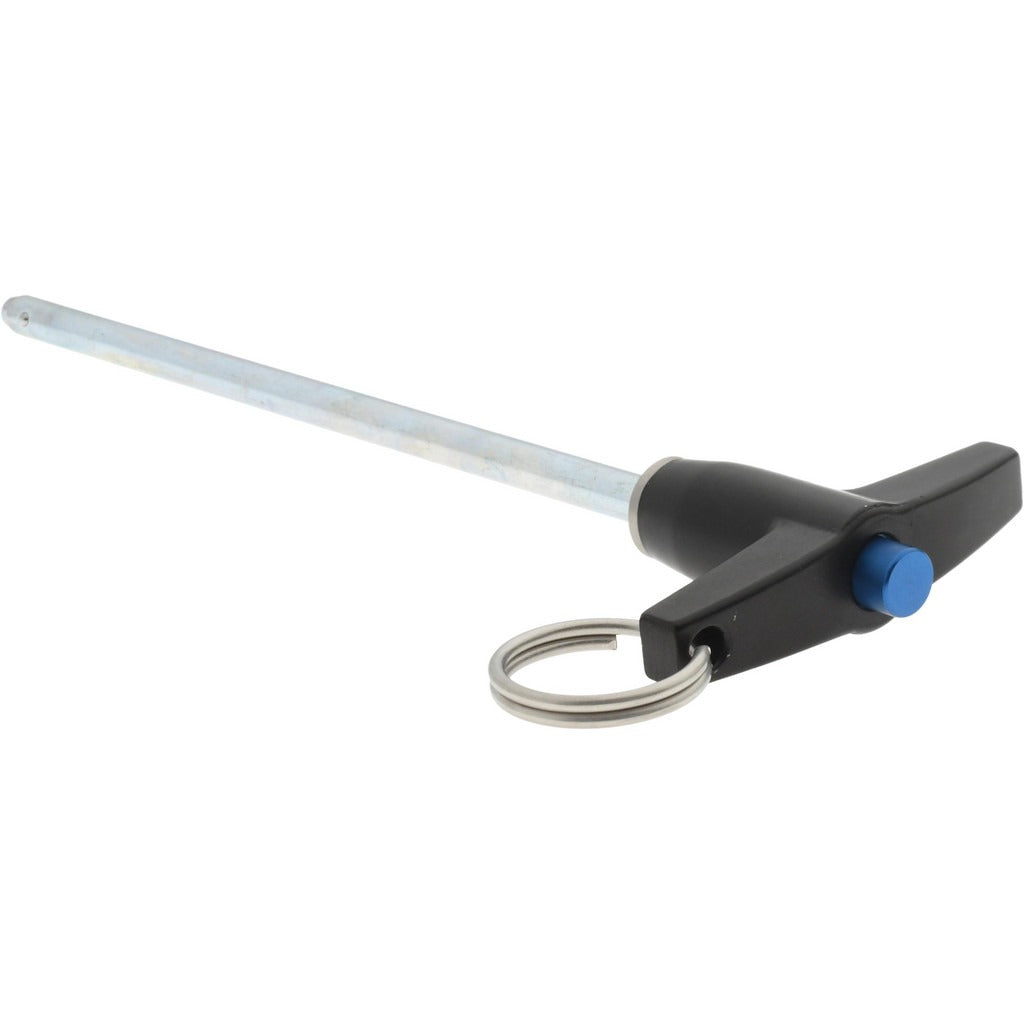

Gibraltar LBT-109 Quick-release T-handle Pin 3/16 in X 4 in

Product Description

The GIBRALTAR LBT-109 is a quick-release T-handle pin designed for fast, tool-free removal in mechanical assemblies, jigs, fixtures, and positioning applications. The pin features a 3/16 inch diameter and a 4 inch usable length, constructed from 4130 alloy steel with a zinc-plated finish for corrosion resistance. The T-handle provides a secure grip for one-handed pull release, making it practical in repetitive assembly and disassembly operations. Machinists, millwrights, fabricators, and maintenance technicians typically install and use this style of pin across light industrial and manufacturing environments.

This pin suits applications where components must be frequently repositioned, locked, or released without tools. Common uses include fixture alignment, machine guards, panel retention, and equipment setup in fabrication shops, production lines, and maintenance facilities. The zinc-plated 4130 steel construction handles moderate load and wear demands typical of these applications. Package quantity is one pin per unit.

Key Features

• Quick-release mechanism allows tool-free, one-handed pin removal
• T-handle design provides positive grip for fast pull release
• 3/16 inch pin diameter suits light-duty fastening and positioning applications
• 4 inch usable length accommodates moderate material thickness
• 4130 alloy steel construction offers strength and durability
• Zinc-plated finish provides corrosion resistance in general shop environments

Compatibility

Designed as a standard T-handle quick-release pin for use in fixtures, jigs, and mechanical assemblies requiring a 3/16 inch pin diameter and 4 inch usable length in inch-measurement applications.

Installation Notes

Installation requires a through-hole sized to accept a 3/16 inch diameter pin. Verify hole alignment and clearance before inserting. No tools are required for insertion or release under normal operating conditions. Inspect the release mechanism and pin shank for wear or deformation during routine maintenance intervals.
