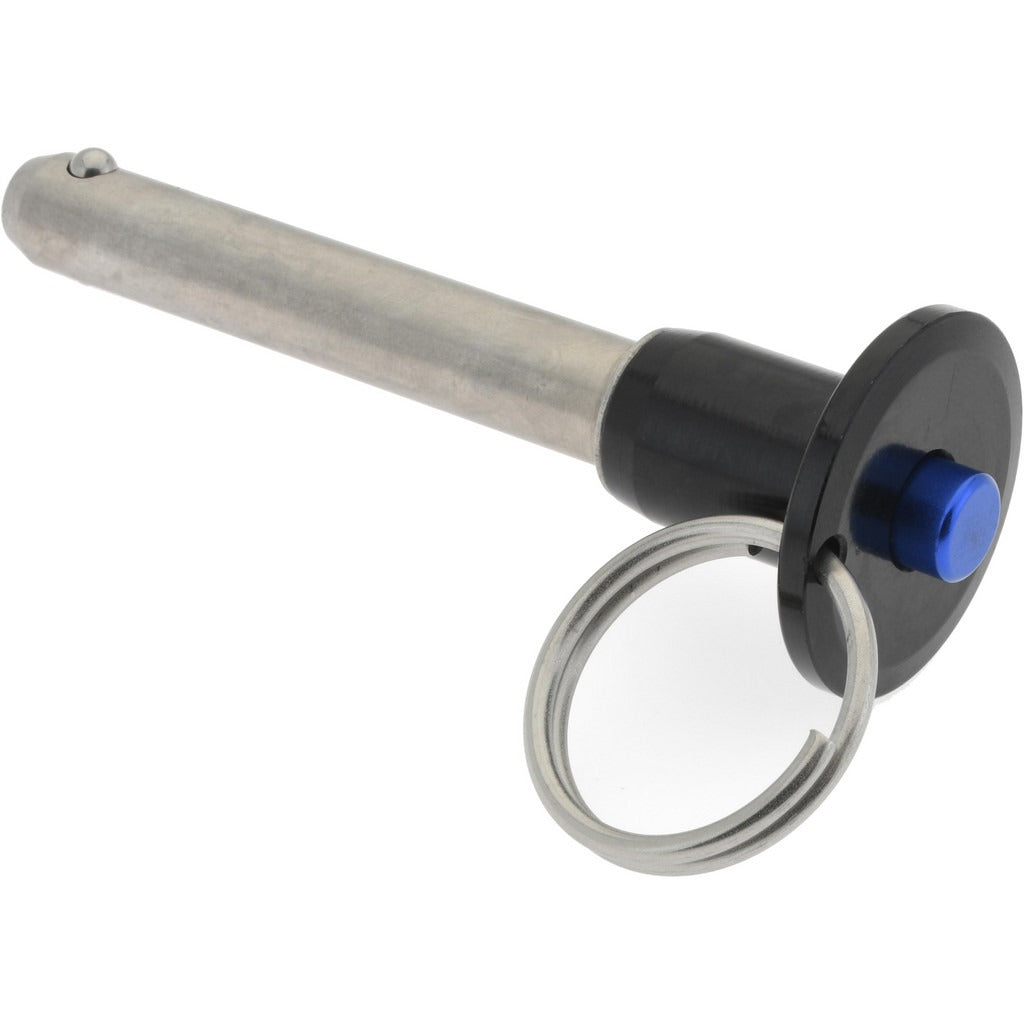

Gibraltar LBR-SS7131 Quick-release Pin 3/8 in 2 in 17-4 Ss

Product Description

The GIBRALTAR LBR-SS7131 is a button-handle quick-release pin machined from 17-4 stainless steel with a bright finish. It features a 3/8-inch pin diameter and a 2-inch usable length, making it a compact, corrosion-resistant fastening solution for applications that require frequent assembly and disassembly without tools. The button-actuated detent mechanism allows the pin to be inserted and withdrawn quickly while maintaining a secure hold under load. At 0.1 pounds, this pin is lightweight and well-suited for both light structural and mechanical positioning tasks. Machinists, millwrights, and maintenance technicians commonly specify this type of hardware for jigs, fixtures, guards, and hinged access panels.

This quick-release pin is used in industrial, agricultural, and maintenance applications where fast manual disconnect is required. Typical install scenarios include machine guards, equipment linkages, hinged doors, and tooling fixtures across light manufacturing and field service environments. The 17-4 stainless steel construction offers elevated strength and corrosion resistance compared to standard 300-series stainless, making it appropriate for wash-down areas or outdoor equipment. It is sold individually and is compatible with standard clevis-style and bracket mounting configurations that accept a 3/8-inch pin.

Key Features

• Button-actuated quick-release mechanism — no tools required for insertion or removal
• 17-4 stainless steel construction for high strength and corrosion resistance
• 3/8-inch pin diameter with 2-inch usable length
• Bright finish on pin surface
• Lightweight at 0.1 pounds — suitable for weight-sensitive assemblies
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as a direct-fit quick-release pin for clevis, bracket, and fixture applications that require a 3/8-inch diameter pin with a 2-inch usable length. Consult your equipment documentation to confirm pin diameter and usable length requirements before installation.

Installation Notes

Installation is performed by hand — no special tools are required to seat or release the pin. Verify that the receiving holes are clean and free of burrs before inserting the pin to avoid damage to the detent ball mechanism. Ensure the pin is fully seated and the button detent is engaged before applying any load. Inspect the detent ball and spring periodically in high-cycle applications to confirm proper retention.
