Gibraltar LBR-SS3127 Quick-release Pin 3/8 in 304 Stainless

Product Description

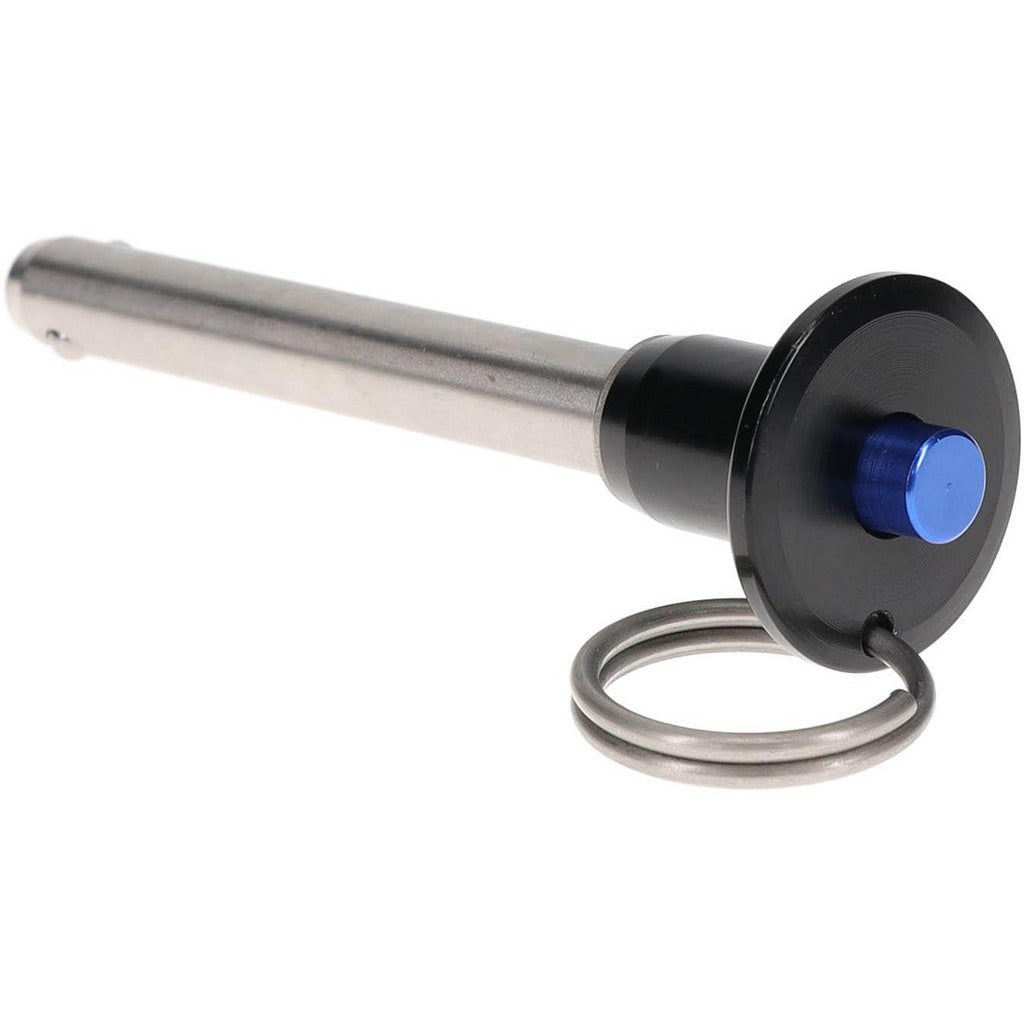

The GIBRALTAR LBR-SS3127 is a button-handle quick-release pin made from 304 stainless steel with a bright finish. It features a 3/8-inch pin diameter and a 2.5-inch usable length, making it suited for applications that require fast, tool-free removal and reinsertion of components under load or in repetitive-service environments. The 304 stainless steel construction resists corrosion in wet, chemical-exposure, or outdoor service conditions. This type of pin is commonly installed by maintenance technicians, fabricators, and trade professionals working on equipment assemblies, mounting brackets, and hinged or removable panel systems.

This quick-release pin fits applications across industrial equipment, HVAC framework assemblies, panel mounting, and general mechanical fabrication where a 3/8-inch clevis or pin-hole configuration is used. The button-handle design allows single-handed operation: press the button to retract the locking ball detent, insert or withdraw the pin, and release to lock. It is sold as a single unit and is appropriate wherever a positive-locking, removable fastener is needed in a stainless steel-compatible assembly.

Key Features

• 304 stainless steel construction with bright finish for corrosion resistance in wet or chemical environments
• 3/8-inch pin diameter for standard clevis and pin-hole fitment
• 2.5-inch usable length accommodates typical bracket and panel stack-ups
• Button-handle design enables tool-free, single-handed pin removal and insertion
• Ball-detent locking mechanism provides positive retention without secondary fasteners
• Sold individually, compatible with inch-system assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit fastener for inch-system assemblies requiring a 3/8-inch diameter quick-release pin with button-handle actuation and 2.5-inch usable length.

Installation Notes

Installation requires no special tools — align the pin with the mating hole pattern, press the button handle to retract the detent ball, insert to full depth, and release the button to engage the lock. Verify that the receiving holes are free of burrs or debris before insertion to prevent detent damage. Ensure the pin is fully seated and the detent is engaged before placing the assembly under load. Service or replacement should be performed with the connected equipment de-energized or depressurized as applicable to the host system.
