Gibraltar LBR-SS3117 Quick-release Pin 5/16 in 3 in Ss

Product Description

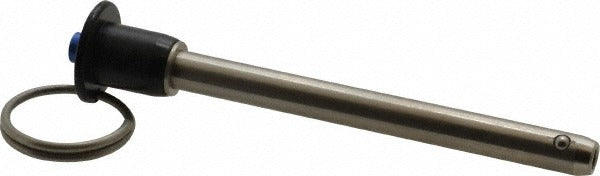

The GIBRALTAR LBR-SS3117 is a button-handle quick-release pin machined from 304 stainless steel with a bright finish. It features a 5/16-inch pin diameter and a 3-inch usable length, making it a compact, corrosion-resistant fastening solution for applications that require frequent removal and reinstallation without tools. The button-handle design allows one-hand operation: press the button to compress the locking balls, insert or withdraw the pin, and release to lock in place. This type of pin is commonly used by maintenance technicians, equipment fabricators, and field service professionals across industrial, agricultural, and general mechanical applications.

This quick-release pin is suited for use in jigs, fixtures, guards, access panels, linkage assemblies, and other mechanical subassemblies where fast, tool-free pin removal is needed during servicing or adjustment. The 304 stainless steel construction provides good resistance to rust and mild chemical exposure, making it appropriate for both indoor and outdoor environments. Sold individually, this pin is a direct-replacement or supplemental fastener option for standard 5/16-inch pin bore locations.

Key Features

• Button-handle design allows single-hand, tool-free insertion and removal
• 5/16-inch pin diameter fits standard 5/16-inch bore locations
• 3-inch usable length suits a range of panel thickness and linkage configurations
• 304 stainless steel construction resists corrosion in wet or outdoor service conditions
• Bright finish with no additional coating that could flake or obscure fit tolerances
• Sold as a single unit with no minimum order above one piece

Compatibility

Designed as a standard replacement or supplemental quick-release pin for any application requiring a 5/16-inch diameter pin with a 3-inch usable length and button-handle actuation.

Installation Notes

Installation requires no special tools beyond verifying bore diameter and usable length clearance before insertion. Depressurize, de-energize, or relieve mechanical load on the assembly before removing or installing the pin to prevent unexpected movement. Ensure the locking balls are fully seated and the button is released before applying any shear load to the pin. Inspect the pin and bore for wear or deformation at each service interval.
