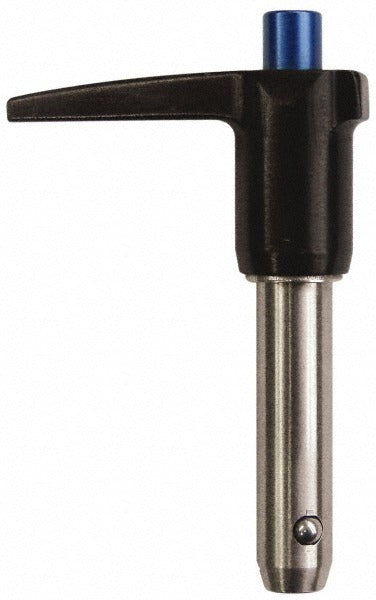

Gibraltar LBL-SS7129 Quick-release Pin 3/8in L-handle Ss

Product Description

The GIBRALTAR LBL-SS7129 is a quick-release pin with an L-handle, designed for fast, tool-free insertion and removal in mechanical assemblies, fixtures, and equipment. Built from 17-4 stainless steel with a bright finish, it delivers strong corrosion resistance and durability in demanding environments. The pin measures 0.375 inches in diameter with a 1.5-inch usable length, making it well-suited for applications where a reliable, repeatable pin-and-hole connection is required without threaded fasteners. Fabricators, millwrights, and maintenance technicians commonly install this type of pin in jigs, tooling, agricultural equipment, and industrial machinery.

This quick-release pin is intended for use in industrial and commercial applications where frequent disassembly or adjustment is required. The L-handle design provides a positive grip for fast actuation without additional tools. It is appropriate for use in fixtures, carts, enclosures, hinged assemblies, and similar mechanical connections where the pin must be seated and removed repeatedly under normal operating loads.

Key Features

• 17-4 stainless steel construction for corrosion resistance and high strength
• L-handle design allows tool-free insertion and removal
• 0.375-inch pin diameter with 1.5-inch usable length
• Bright finish for clean appearance and easy visual inspection
• Inch measurement system for compatibility with standard U.S. tooling and fixtures

Compatibility

Designed as a standard inch-series quick-release pin for use in industrial fixtures, mechanical assemblies, and equipment requiring tool-free pin connections with a 3/8-inch pin diameter hole.

Installation Notes

Installation is performed by inserting the pin through aligned holes in the assembly and actuating the release mechanism to lock or free the pin. No special tools are required for normal use, but proper hole alignment and diameter clearance should be confirmed before installation. Ensure the mating assembly is de-energized or stationary before inserting or removing the pin to prevent movement during service. Verify that the usable length is sufficient for the full material thickness of the application before installing.
