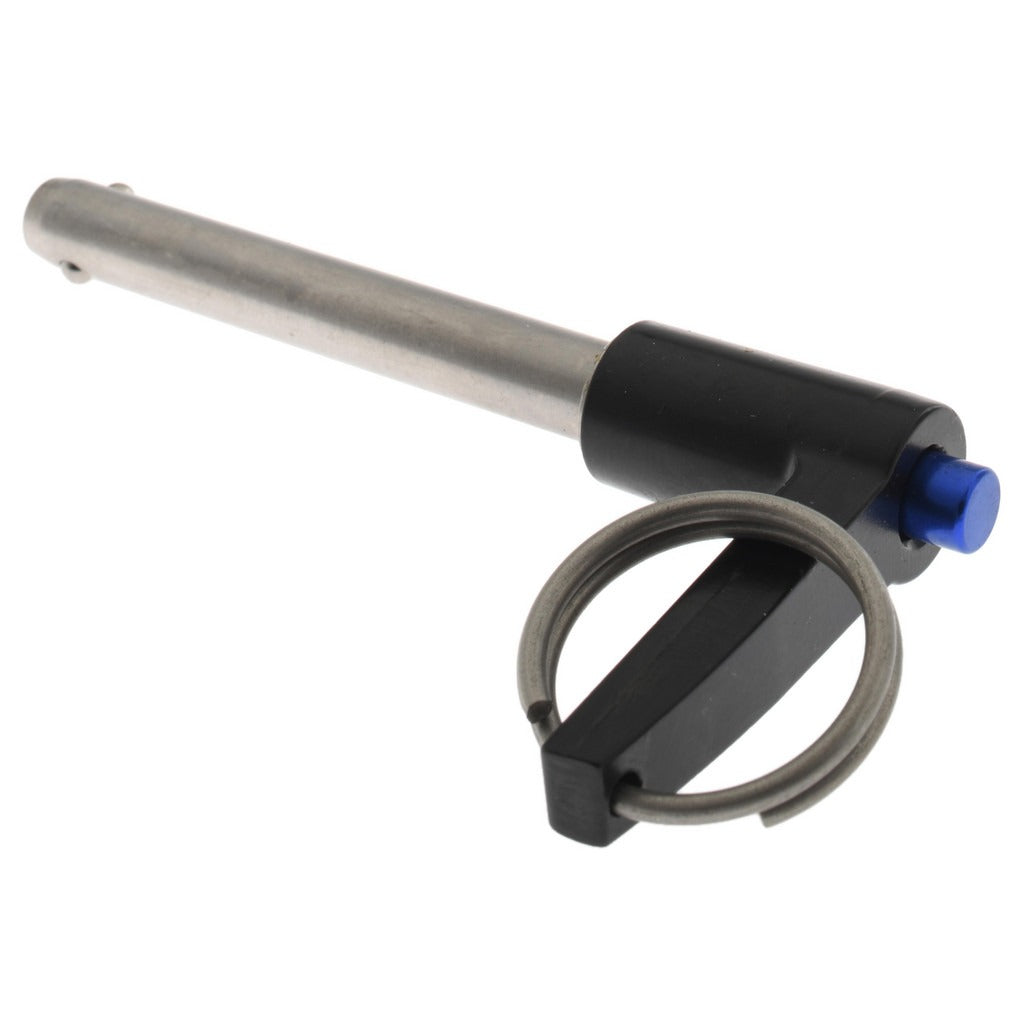

Gibraltar LBL-SS7121 Quick-release Pin 5/16 in 2 in Ss

Product Description

The GIBRALTAR LBL-SS7121 is a quick-release pin with an L-handle, designed for fast, tool-free removal in mechanical assemblies, fixtures, and industrial equipment. Machined from 17-4 stainless steel with a bright finish, this pin provides strong corrosion resistance and durability in demanding environments. The pin measures 5/16 inches in diameter with a 2 inch usable length, making it suitable for medium-duty indexing, locking, and positioning applications. It is installed by maintenance technicians, machine operators, and assembly workers across manufacturing, agricultural, and industrial service environments.

This quick-release pin is used in applications where fast, repeated pin removal is required without tools. The L-handle design allows for a secure grip during removal, even in tight clearances. Typical applications include jig and fixture assembly, equipment panels, guards, latching mechanisms, and hinged assemblies where positive retention with quick disengagement is needed. Sold individually as a single unit.

Key Features

• Quick-release mechanism allows tool-free, single-handed removal
• L-handle provides a positive grip for fast engagement and disengagement
• 17-4 stainless steel construction for corrosion resistance and high strength
• Bright finish maintains appearance in exposed or visible installations
• 5/16 inch pin diameter with 2 inch usable length for medium-duty fitment

Compatibility

Designed as a standard inch-series quick-release pin for use in jigs, fixtures, and mechanical assemblies requiring a 5/16 inch pin diameter and 2 inch usable length engagement.

Installation Notes

Quick-release pins are installed and removed by hand without special tools. Ensure the receiving hole diameter is matched to the 5/16 inch pin diameter with appropriate clearance before installation. Verify that the load and shear requirements of the application are within the rated capacity of the pin grade and diameter. Remove all energy sources and relieve any retained load on the pin before servicing or replacing it in a live assembly.
