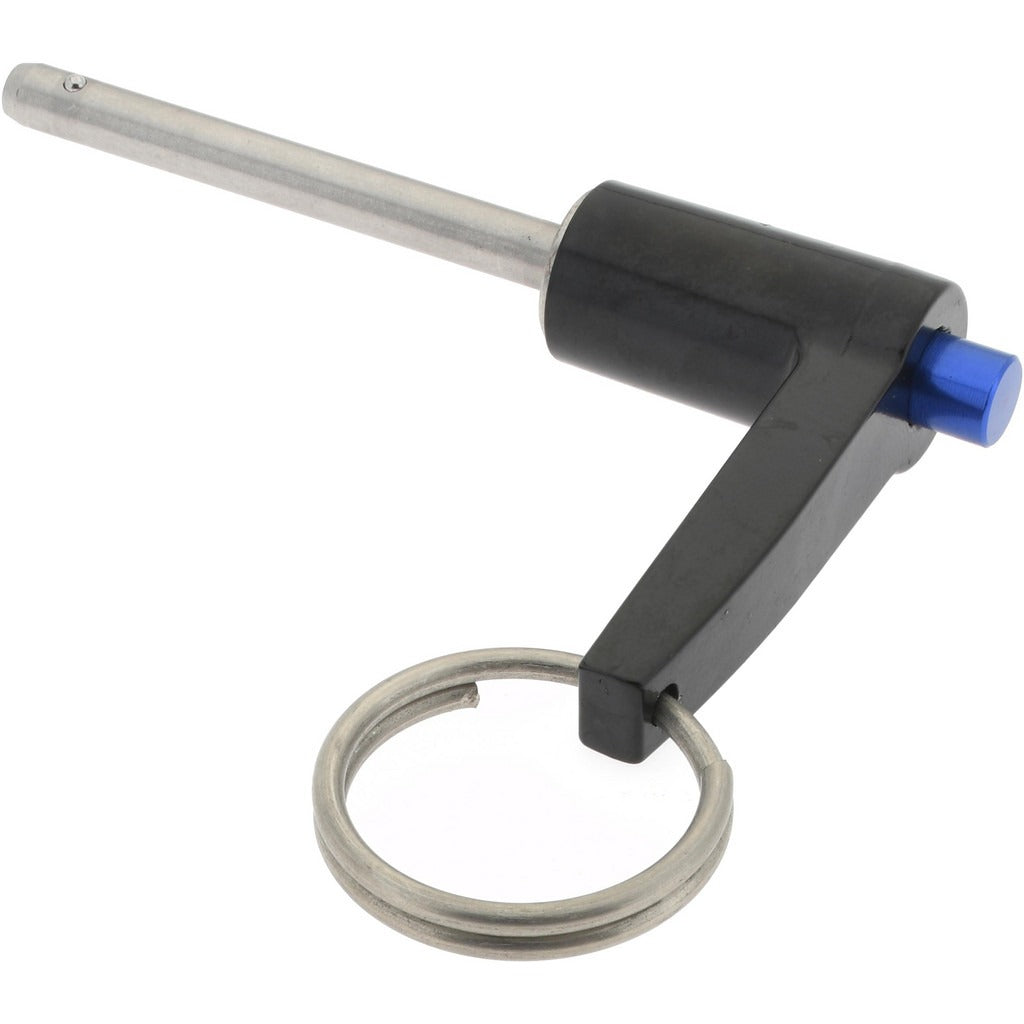

Gibraltar LBL-SS7104 Quick-release Pin 3/16 in Stainless

Product Description

The GIBRALTAR LBL-SS7104 is an L-handle quick-release pin designed for rapid, tool-free fastening and removal in mechanical assemblies, fixtures, and industrial equipment. The pin features a 3/16 inch diameter and a 1-1/2 inch usable length, making it well suited for light-duty through-pin applications where quick access and repeated removal are required. Constructed from 17-4 stainless steel with a bright finish, it offers solid corrosion resistance in environments exposed to moisture, cleaning agents, or outdoor conditions. Machinists, fabricators, maintenance technicians, and MRO professionals install this type of pin in jigs, guards, panels, and linkage assemblies.

This quick-release pin is used in industrial and commercial settings where frequent disassembly is part of normal workflow. Typical applications include positioning fixtures, hinged access panels, tooling setups, and safety guard retention. The L-handle configuration allows finger-operated actuation without tools, supporting fast changeouts on production floors, maintenance bays, and field service environments. The inch-system sizing and stainless construction make it compatible with standard domestic fabrication practices.

Key Features

• L-handle design enables tool-free, one-hand release in tight or repetitive-access applications
• 17-4 stainless steel construction provides corrosion resistance for wet, outdoor, or washdown environments
• Bright finish on pin body for clean appearance and easy visual inspection
• 3/16 inch pin diameter and 1-1/2 inch usable length for light-duty through-pin fitment
• Inch-system dimensioning for compatibility with standard domestic hardware and fabrication specs

Compatibility

Designed as a standard inch-series quick-release pin for use in jigs, fixtures, guards, panels, and mechanical assemblies requiring a 3/16 inch through-hole and approximately 1-1/2 inch grip range.

Installation Notes

Installation requires a drilled or machined through-hole sized to accept a 3/16 inch pin diameter. Ensure the mating hole is deburred and aligned before inserting the pin to avoid binding the release mechanism. No special tools are required for insertion or removal under normal operating conditions. Inspect the pin and detent mechanism periodically for wear or deformation, especially in high-cycle applications.
