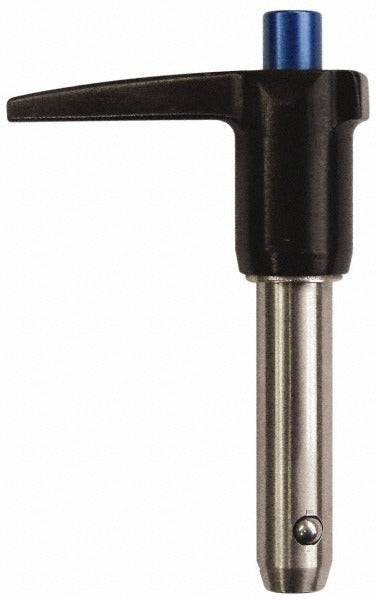

Gibraltar LBL-SS7103 Quick-release Pin L-handle Ss

Product Description

The GIBRALTAR LBL-SS7103 is an L-handle quick-release pin machined from 17-4 stainless steel with a bright finish. It features a 3/16-inch pin diameter and a 1-1/4-inch (1.25-inch) usable length, making it suited for light-duty fastening and positioning applications where tools-free removal is required. The 17-4 stainless steel alloy provides solid corrosion resistance and strength, holding up in both indoor and outdoor service environments. Maintenance technicians, fabricators, and equipment assemblers rely on quick-release pins like this one to secure guards, fixtures, jigs, and adjustable assemblies without threaded hardware.

This pin is a standard inch-system component used across a wide range of industrial, HVAC, and mechanical assembly applications. The L-handle design provides a positive grip for rapid insertion and withdrawal by hand, reducing downtime during equipment access or adjustment. Typical installations include panel retention, access door latching, pivot-point alignment fixtures, and removable component mounting on fabricated frames and enclosures.

Key Features

• L-handle design allows tools-free insertion and removal
• 17-4 stainless steel construction for corrosion resistance and durability
• Bright finish on pin body
• 3/16-inch pin diameter fits standard close-tolerance holes in light-duty assemblies
• 1.25-inch usable length suitable for thin to mid-depth panel and frame applications
• Inch measurement system — drops in as a direct replacement in standard-dimension fixtures

Compatibility

Designed as a standard inch-series quick-release pin for use in fabricated assemblies, jigs, fixtures, and equipment panels requiring tools-free fastening with a 3/16-inch diameter hole pattern.

Installation Notes

Installation requires no special tools — align the pin with the mating hole and press until the release ball engages. Before installing in a load-bearing or safety-critical application, verify that the hole diameter and material thickness fall within the rated usable length of 1.25 inches. Inspect the spring-ball detent mechanism for proper engagement after insertion. Depowering or de-energizing associated equipment before servicing panel-mounted pins is standard practice.
