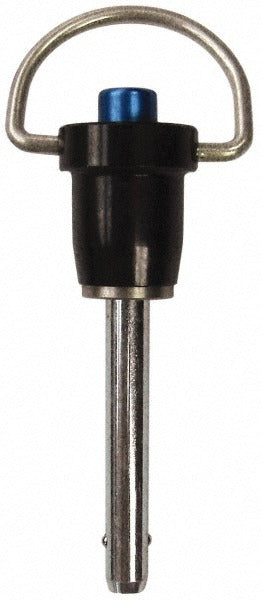

Gibraltar LBH-SS7165 Quick-release Pin 5/8 in Ring Handle

Product Description

The GIBRALTAR LBH-SS7165 is a quick-release pin with a ring handle, manufactured from 17-4 stainless steel with a bright finish. It features a 5/8 inch pin diameter and a 3 inch usable length, making it well-suited for applications that require fast, tool-free pin removal under repeated service cycles. The 17-4 grade stainless steel construction offers high strength and corrosion resistance. This pin is installed by maintenance technicians, millwrights, and equipment service professionals working on machinery, fixtures, and assemblies where quick disconnection of components is required.

This quick-release pin is used in industrial, mechanical, and fabrication environments where clevis connections, linkages, hinges, or mounting brackets need to be secured and released without tools. The ring handle allows one-handed operation, which is practical in confined or high-frequency service situations. At 0.41 pounds, it is a lightweight single-piece fastener suited for both light and moderate load applications.

Key Features

• 17-4 stainless steel construction for high tensile strength and corrosion resistance
• 5/8 inch pin diameter for reliable fitment in standard clevis and pin-mount applications
• 3 inch usable length accommodates a range of assembly thicknesses
• Ring handle design enables tool-free, one-handed installation and removal
• Bright finish for easy visual inspection and clean appearance
• Single-piece design with no small loose components

Compatibility

Designed as a direct-fit replacement or standard-service quick-release pin for clevis assemblies, linkages, hinges, and mounting fixtures requiring a 5/8 inch pin diameter with a 3 inch usable length.

Installation Notes

Installation and removal require no tools due to the integrated ring handle. Ensure the receiving hole diameter is matched to the 5/8 inch pin diameter before installation. Inspect the pin, detent ball, and ring mechanism for wear or deformation prior to each use. Depressurize or de-energize any connected assembly before removing or inserting the pin.
