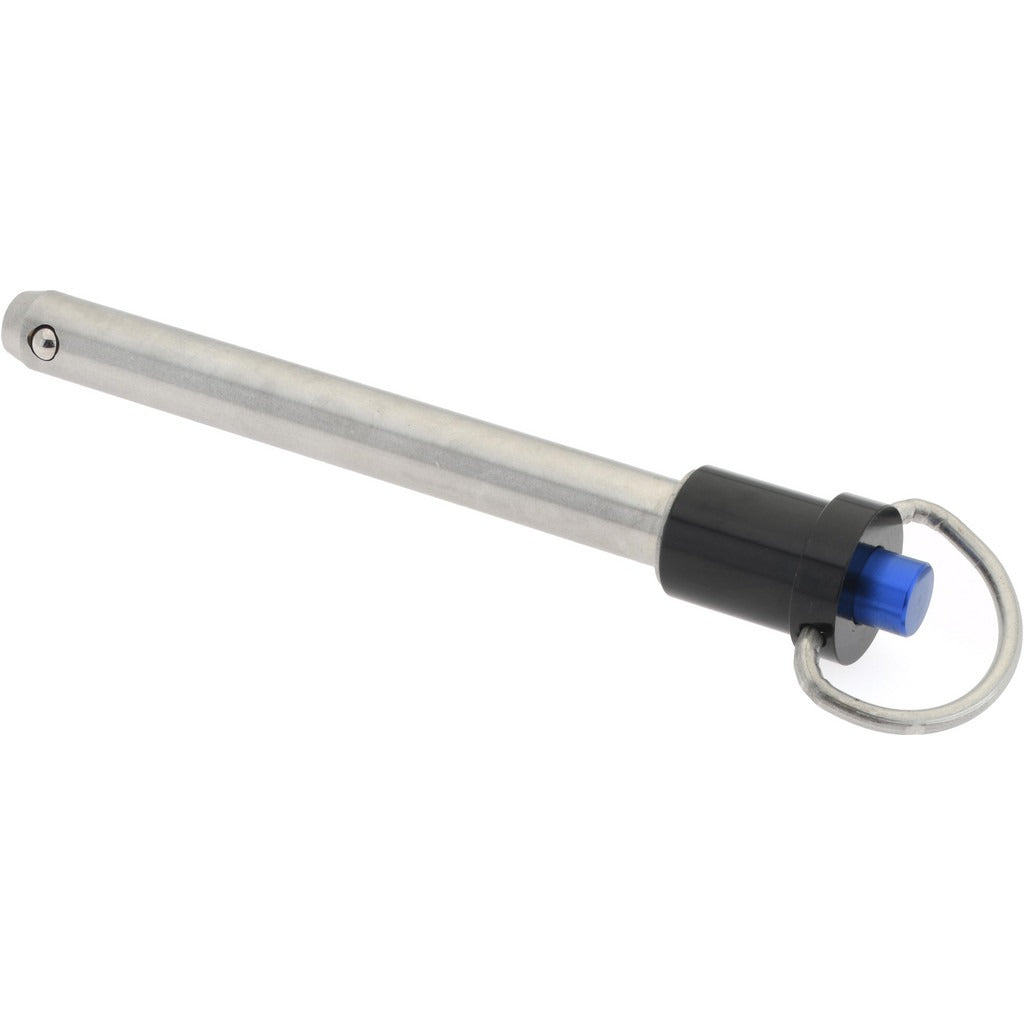

Gibraltar LBH-SS7134 Quick-release Pin 3/8 in Ring Handle

Product Description

The GIBRALTAR LBH-SS7134 is a ring-handle quick-release pin designed for fast, tool-free removal in mechanical assemblies, jigs, fixtures, and industrial equipment. The pin measures 3/8 inch in diameter with a 3-inch usable length and is manufactured from 17-4 stainless steel with a bright finish. This grade of stainless steel provides strong resistance to corrosion and moderate resistance to wear, making it suitable for washdown environments, outdoor equipment, and applications where carbon steel would corrode. Machinists, fabricators, and maintenance technicians install this type of pin where repeated disassembly and reassembly is required without tools.

This pin is used in commercial and industrial applications including machine guarding, tooling fixtures, agricultural equipment, material handling systems, and maintenance access panels. The ring handle allows finger-pull release in tight spaces without a separate tool. It is an inch-dimensioned component and is sized for use in through-holes or clevis linkages requiring a 3/8-inch pin.

Key Features

• Ring handle enables fast, tool-free pin removal with one hand
• 3/8 inch pin diameter fits standard clevis and fixture bore sizes
• 3-inch usable length accommodates moderate material thickness
• 17-4 stainless steel construction resists corrosion in wet or outdoor environments
• Bright finish provides clean appearance and corrosion protection
• Lightweight at 0.13 pounds — suitable for frequent handling and repeated cycling

Compatibility

Designed as a standard inch-series quick-release pin for use in fixtures, jigs, clevis linkages, and equipment panels requiring a 3/8-inch diameter through-hole and a minimum 3-inch depth of engagement.

Installation Notes

Install this pin by aligning the through-holes in the assembly and pressing the pin through until the retaining detent engages. Verify the detent clicks fully into position before loading the joint. No tools are required for installation or removal. Inspect the detent ball and spring mechanism periodically for wear, especially in high-cycle applications.
