Gibraltar LBH-134 Quick-release Pin 3/8 in Ring Handle

Product Description

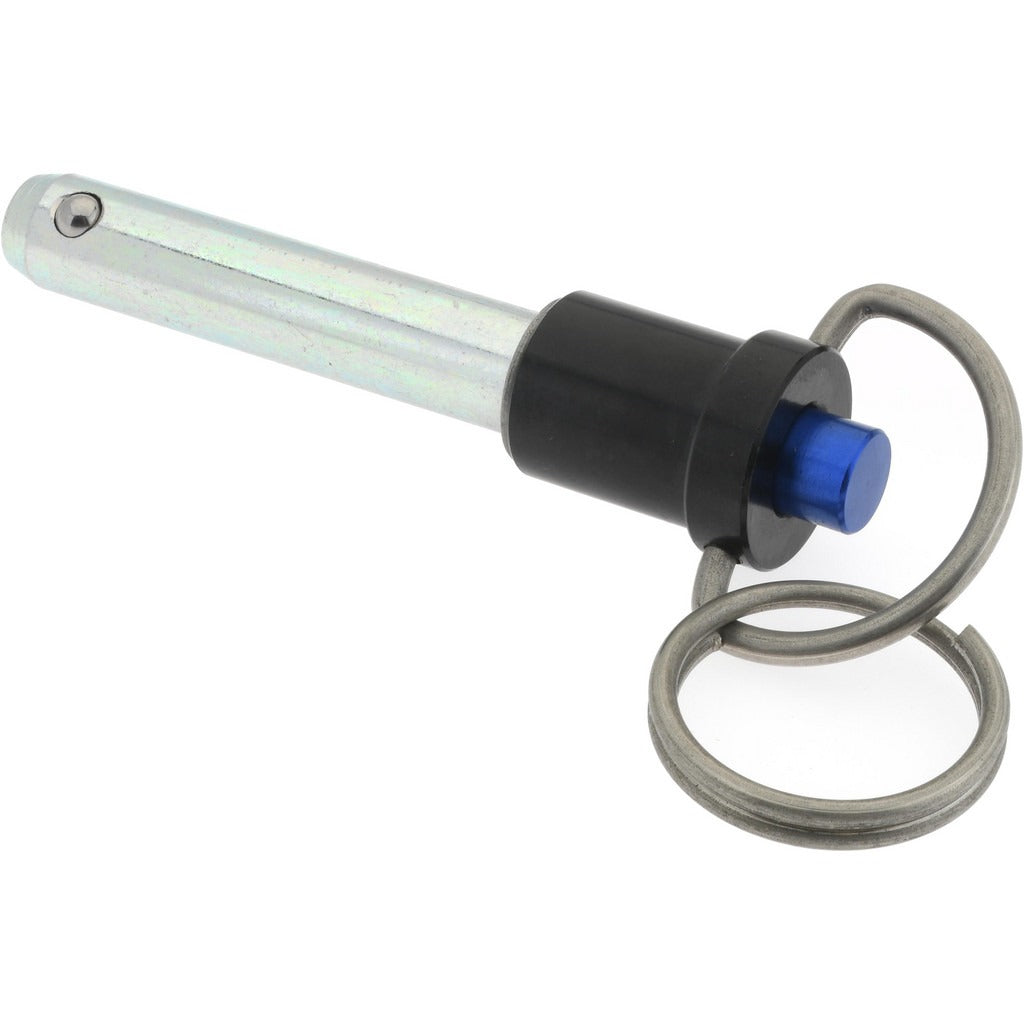

The GIBRALTAR LBH-134 is a ring-handle quick-release pin machined from 4130 alloy steel with a zinc-plated finish. It is designed for fast, tool-free insertion and removal in fixtures, jigs, machinery guards, and mechanical assemblies where repeated access or adjustment is required. The pin measures 3/8 inches in diameter with a 1.5 inches usable length, making it well suited for light- to medium-duty clamping and retention applications. The ring handle provides a positive grip for quick actuation without additional tools. Installation and removal require no fasteners, reducing service time in high-cycle environments.

This quick-release pin is used in industrial and trade settings wherever a fast-disconnect fastener is needed. Typical applications include machine guarding panels, material handling equipment, tooling fixtures, and maintenance access points. It is equally appropriate for fabrication shops, maintenance departments, and field service work where components must be frequently removed and reinstalled. The compact 0.09-pound weight keeps overall assembly mass low.

Key Features

• 4130 alloy steel construction for strength in mechanical retention applications
• Zinc-plated finish provides corrosion resistance in shop and light outdoor environments
• Ring handle allows tool-free, one-handed actuation
• 3/8 inch pin diameter fits standard clevis and bracket bores
• 1.5 inches usable length accommodates typical panel and fixture thicknesses
• Lightweight at 0.09 pounds, suitable for weight-sensitive assemblies

Compatibility

Designed as a standard inch-series quick-release pin for use in fixtures, jigs, machinery guards, and mechanical assemblies requiring a 3/8 inch diameter retention pin with a 1.5 inch usable length.

Installation Notes

De-energize or lock out any machinery before installing or removing this pin from powered equipment per applicable OSHA lockout/tagout procedures. Verify that the receiving bore diameter and panel thickness are compatible with the pin diameter and usable length before installation. No tools are required for insertion or removal under normal operating conditions. Inspect the pin and detent mechanism periodically for wear or deformation in high-cycle applications.
