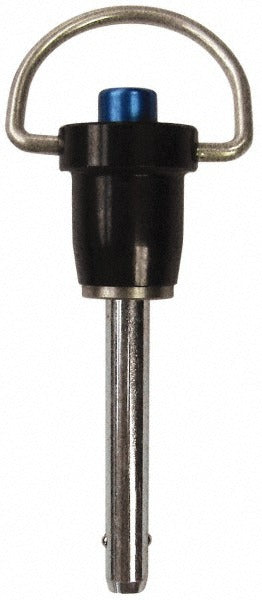

Gibraltar LBH-131 Quick-release Pin 3/8 in Ring Handle

Product Description

The GIBRALTAR LBH-131 is a quick-release pin with a ring handle, designed for fast, tool-free removal in mechanical assemblies, jigs, fixtures, and equipment linkages. The pin features a 3/8-inch diameter and 0.75 inches of usable length, making it suited for light- to medium-duty applications where rapid disassembly and reassembly is required. Constructed from 4130 alloy steel with a zinc-plated finish, it offers solid corrosion resistance and durability in industrial and shop environments. Maintenance technicians, fabricators, and equipment assemblers commonly install this type of pin in clevis linkages, safety guards, and removable panels.

This quick-release pin is appropriate for use in manufacturing, fabrication shops, agricultural equipment, and general mechanical assemblies where repeatable, hand-operable pinning is needed. The ring handle provides a positive grip for fast pin extraction without tools. Its inch-system dimensions align with standard hardware applications across a wide range of equipment and structural configurations. The compact overall envelope suits confined mounting points.

Key Features

• Ring handle design enables tool-free, one-hand pin removal
• 3/8-inch pin diameter with 0.75 inches of usable length
• 4130 alloy steel construction for strength in cyclically loaded applications
• Zinc-plated finish provides corrosion resistance in shop and light outdoor environments
• Inch-system measurement standard for compatibility with common hardware configurations
• Lightweight at 0.07 pounds, minimizing added load in linkage assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit quick-release pin for clevis assemblies, fixtures, jigs, and removable mechanical panels using 3/8-inch pin bores with up to 0.75 inches of grip length.

Installation Notes

Quick-release pins of this type are installed by hand without special tooling; ensure the receiving bore is clean and free of burrs before insertion. Verify the pin diameter and usable length match the application bore and panel thickness before fitting. Inspect the retention clip or ball-detent mechanism for proper function before returning equipment to service. Follow any applicable equipment manufacturer guidelines regarding pin preload and load direction.
