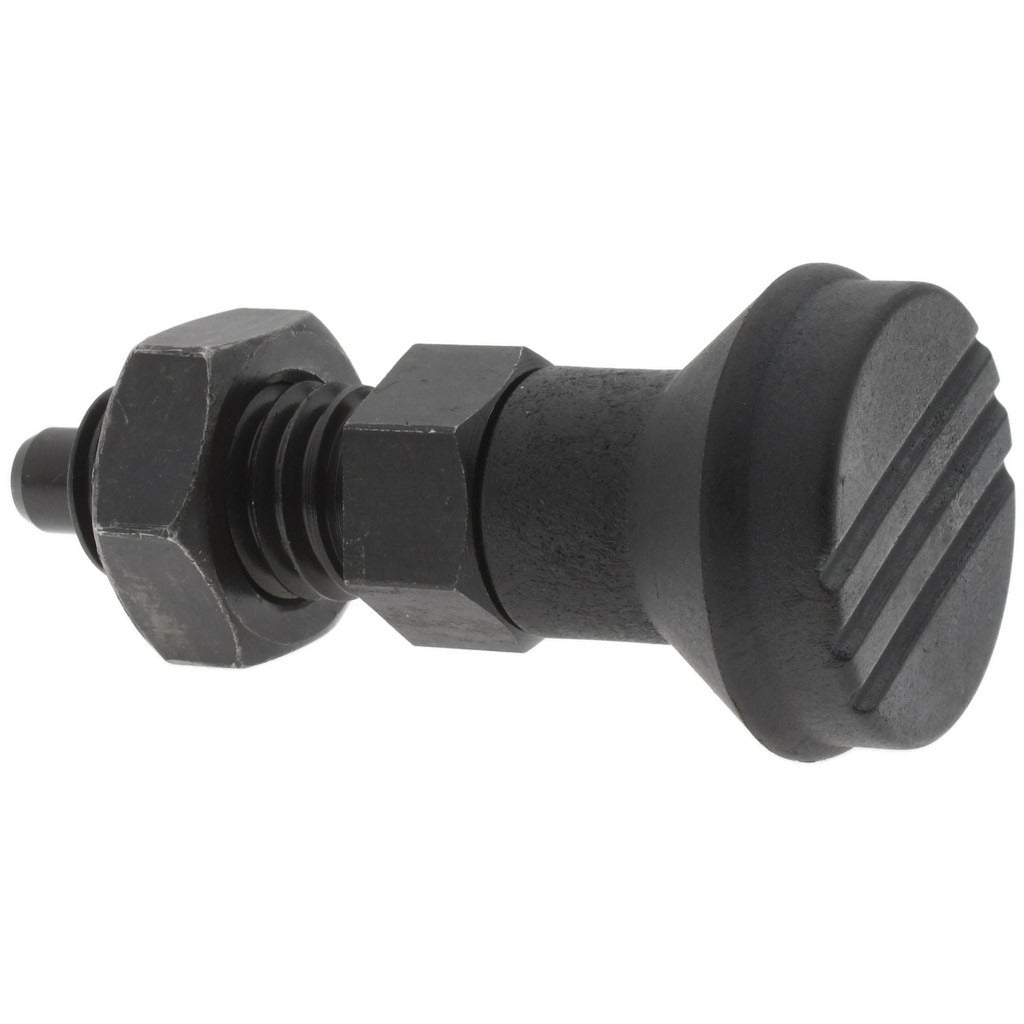

Gibraltar IPG-119-G Indexing Plunger Knob Handle 5/8-11

Product Description

The GIBRALTAR IPG-119-G is a non-locking indexing plunger with a knob handle, designed for positioning and locating applications in industrial and mechanical assemblies. It features a 5/8-11 thread size with a 23 mm (0.906 inches) thread length and an 8 mm (0.315 inches) plunger diameter. The overall length is 74 mm (2.913 inches), and the body length measures 26 mm (1.024 inches). Built from steel, this Style B plunger delivers an initial end force of 15 N and a final end force of 35 N. A lock nut is included. Installed by machinists, millwrights, and maintenance technicians, this plunger suits repetitive indexing setups where a hand-operable, spring-loaded locating pin is required.

This indexing plunger is suited for use in jigs, fixtures, machine tools, and industrial equipment where repeatable positioning is needed without tooling. The knob handle allows hand operation for frequent adjustments. The included lock nut secures the plunger body against rotation or migration once the installation position is set. The steel construction handles the mechanical loads typical of light-duty to medium-duty indexing applications in shop and manufacturing environments.

Key Features

• Style B indexing plunger with knob handle for hand-operable positioning
• Non-locking plunger type for easy, tool-free withdrawal and re-engagement
• 5/8-11 thread size with 23 mm (0.906 inches) thread length
• 8 mm (0.315 inches) plunger diameter and projection
• Initial end force of 15 N; final end force of 35 N
• Lock nut included for secure body positioning
• Steel construction for durability in industrial use

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, and machine tool assemblies requiring a 5/8-11 threaded non-locking indexing plunger with a knob handle.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using standard hand tools. Thread the plunger body into the tapped hole to the desired depth, then secure the lock nut against the mounting surface to prevent rotation. Ensure the mating locating hole is aligned and sized to accept the 8 mm plunger diameter before final tightening. Power down or de-energize any equipment before servicing assemblies that contain this plunger.
