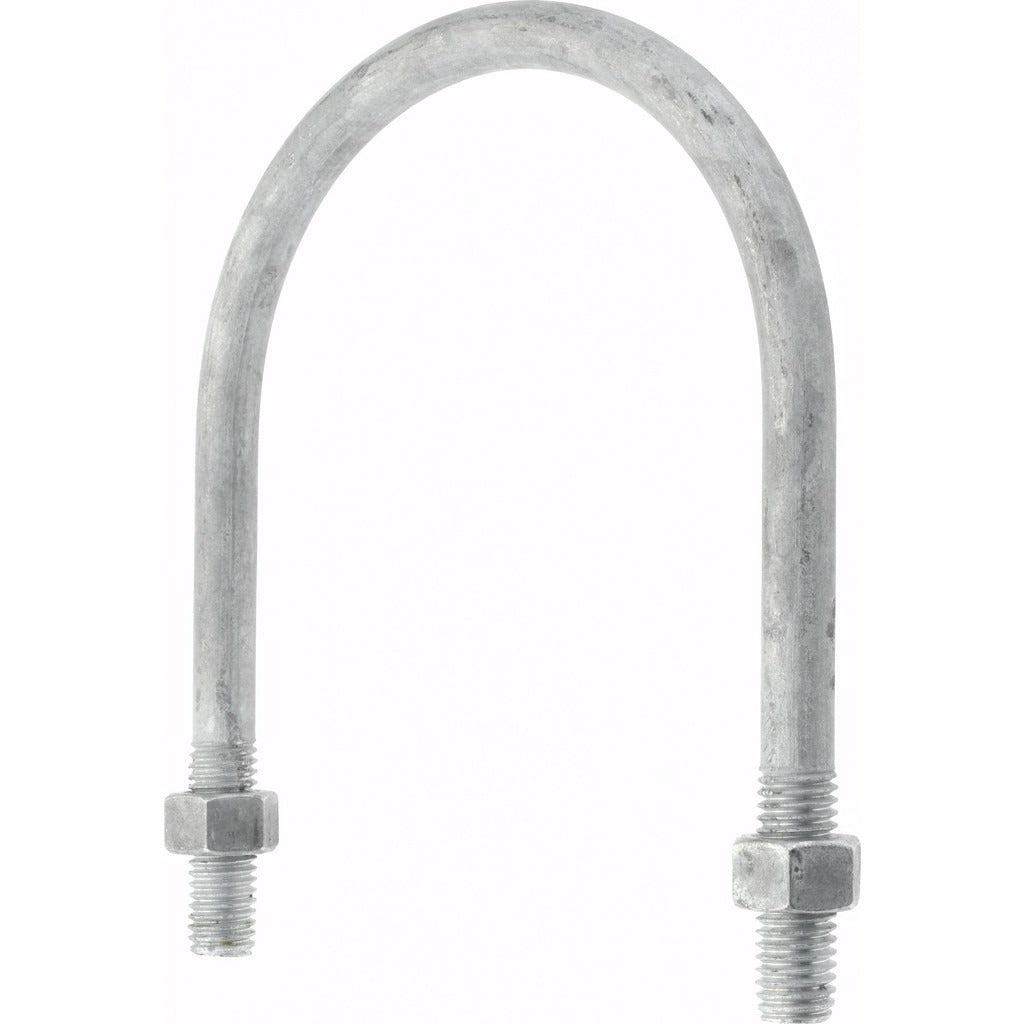

Gibraltar GIB53113 Round U-bolt 1/2-13 Unc 4 Inch Pipe

Product Description

The GIBRALTAR GIB53113 is a round U-bolt designed to secure 4-inch pipe in mechanical, plumbing, and HVAC piping systems. Manufactured from C-1010 steel with a hot galvanized finish, it resists corrosion in both indoor and outdoor installations. The bolt features a 1/2-13 UNC thread size with a 1.5-inch thread length and an overall length of 6 inches. The 4.5-inch width accommodates standard 4-inch pipe OD. Two nuts are included. This U-bolt is installed without a mount plate, making it suitable for applications where the fastener is anchored directly to structural steel, strut channel, or framing. Plumbers, pipefitters, and HVAC mechanics are the typical installers.

This U-bolt is used in residential and commercial piping support applications where 4-inch pipe must be anchored to overhead structure, wall framing, or support channel. Typical uses include drain, waste, and vent (DWV) pipe support, HVAC refrigerant line set support, conduit support, and general mechanical piping. The hot galvanized finish makes it appropriate for damp locations, crawlspaces, and outdoor-adjacent environments where bare steel would corrode prematurely. The included nuts eliminate the need to source separate hardware on the job.

Key Features

• Fits 4-inch nominal pipe with a 4.5-inch interior width
• C-1010 steel construction with hot galvanized corrosion-resistant finish
• 1/2-13 UNC thread, 1.5-inch thread length, 6-inch overall length
• Round bend profile for consistent pipe contact and secure clamping
• Includes two hex nuts — no separate hardware required
• No mount plate — installs directly to strut, beam, or structural support

Compatibility

Designed for use with 4-inch nominal pipe in standard inch-measurement piping support applications, including DWV, mechanical, and HVAC systems.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or HVAC mechanics following applicable IPC or IFGC support-spacing requirements. Ensure the support structure is rated for the combined load of the pipe, fluid, and insulation before fastening. Tighten nuts evenly to achieve uniform clamping without distorting the pipe wall. Do not overtighten on plastic or thin-wall pipe without using a protective sleeve or liner.
