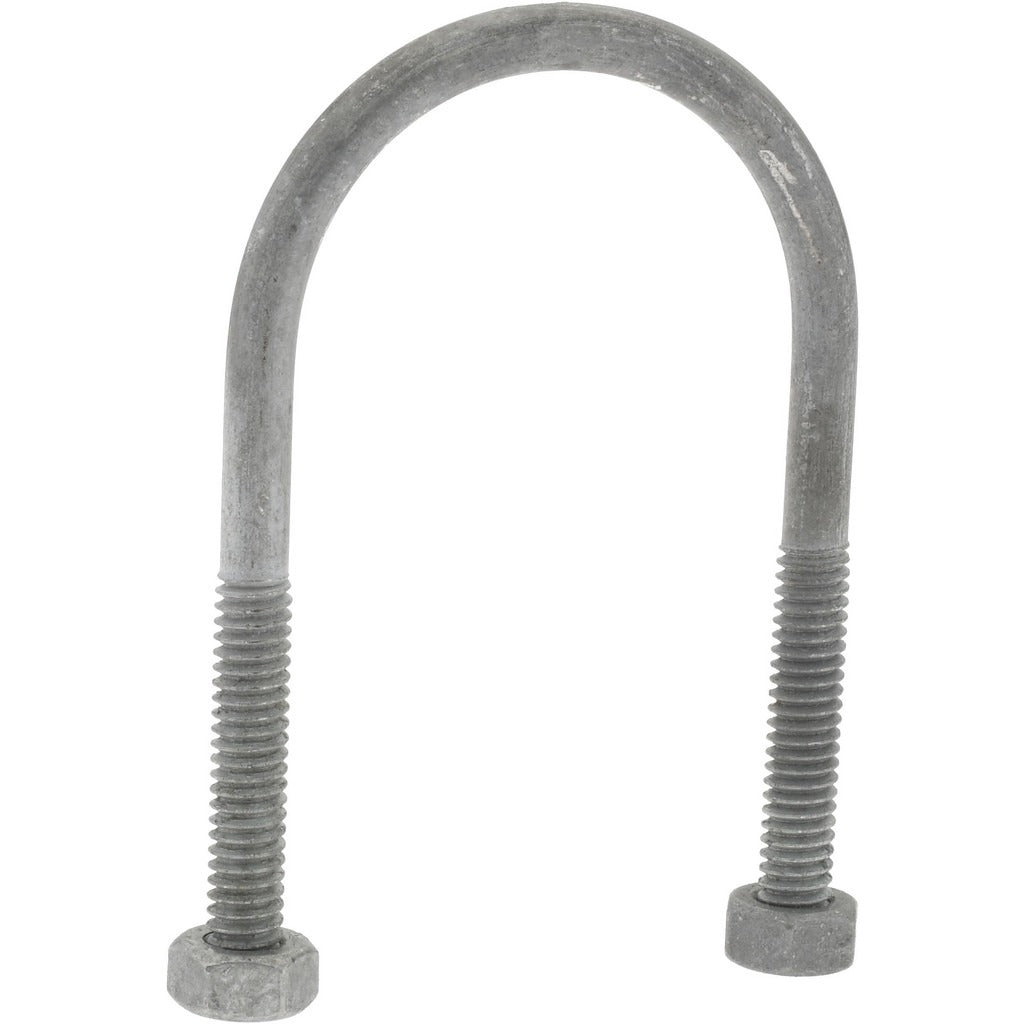

Gibraltar GIB53032 Round U-bolt 1/4-20 Unc Steel Hot Galvanized

Product Description

The GIBRALTAR GIB53032 is a round U-bolt designed to secure pipe to structural supports in mechanical, plumbing, and HVAC piping systems. Built from C-1010 steel with a hot galvanized finish, this fastener resists corrosion in exposed or damp service environments. It carries a 1/4-20 UNC thread with a 1-3/8 inch thread length and an overall length of 3 inches. Width across the inside of the bend measures 1-3/4 inches, sized to fit 1-1/4 inch pipe. Two nuts are included. The unit ships without a mount plate. Plumbers, pipefitters, and HVAC mechanics use this type of fastener for pipe support and hanging applications.

This U-bolt is intended for use with 1-1/4 inch pipe in residential and light commercial installations. Common applications include supporting copper, black iron, galvanized steel, and similar round pipe in mechanical rooms, utility spaces, and overhead pipe runs. The hot galvanized finish makes it appropriate for installations where moisture exposure is a factor. It is sold individually.

Key Features

• Round bend profile sized for 1-1/4 inch pipe with 1-3/4 inch interior width
• 1/4-20 UNC thread standard with 1-3/8 inch thread length
• C-1010 steel construction with hot galvanized corrosion-resistant finish
• Overall length of 3 inches
• Includes two nuts — no additional hardware required for basic installation
• Sold without mount plate for use with field-supplied backing or strut

Compatibility

Designed as an OEM-style replacement and standard-fitment U-bolt for 1-1/4 inch round pipe support applications in plumbing and mechanical piping systems.

Installation Notes

Installation is typically performed by licensed plumbers or pipefitters in accordance with applicable mechanical and plumbing codes such as the IPC or IFGC. Shut off the relevant piping system and depressurize or drain as needed before repositioning or replacing pipe supports. Use appropriately rated backing plate or strut channel when mounting to structure. Do not overtighten the nuts against plastic-lined or soft pipe materials without a protective saddle.
