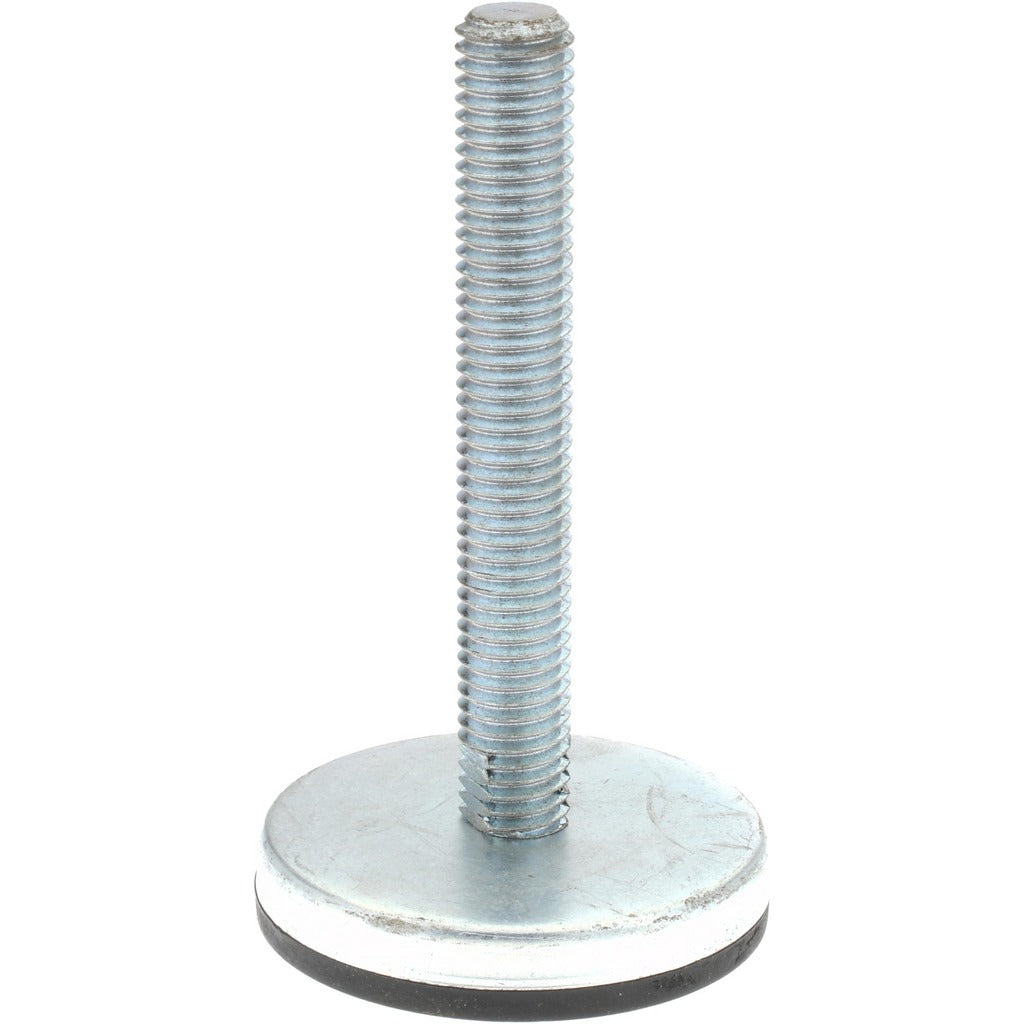

Gibraltar G013-EL-G Leveling Mount 500 Lb

Product Description

The GIBRALTAR G013-EL-G is a leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and fabricated assemblies. It features a 5/8-11 bolt thread size and a 4.0-inch thread length that allows for precise height adjustment and leveling on uneven or imperfect surfaces. The base diameter measures 2.8 inches, distributing load across a broad footprint to minimize floor stress. With a rated load capacity of 500 lb, it is suited for light-to-medium industrial and commercial equipment installations. Machinists, millwrights, and fabricators typically install these mounts during equipment alignment and commissioning work.

The G013-EL-G leveling mount is commonly used in equipment mounting applications where floor-level adjustment is required. Typical installations include machine bases, workbenches, conveyor supports, storage racks, and industrial enclosures. It is appropriate for both new installations and retrofit leveling of existing equipment where thread-adjustable feet are needed to compensate for floor irregularities or to achieve precise levelness before final anchoring.

Key Features

• 500 lb static load capacity for light-to-medium equipment support
• 5/8-11 bolt thread size for compatibility with standard fastener hardware
• 4.0-inch thread length provides wide range of height adjustment
• 2.8-inch base diameter distributes load and resists tipping
• Compact form factor suitable for tight equipment base clearances

Compatibility

Designed as a standard thread-adjustable leveling mount for use with equipment frames, machine bases, and fabricated assemblies that accept a 5/8-11 threaded leveling foot.

Installation Notes

Leveling mounts of this type are installed by machinists, millwrights, or equipment technicians during machine setup and alignment procedures. Thread the mount into the equipment base until the desired height and level are achieved, then lock in position if a jam nut is used. Ensure the mounting surface can support the full rated load before final positioning. Always de-energize and lock out connected equipment before performing leveling or repositioning work.
