Gibraltar DTS-3-G Tapped Pivotal Leveling Mount 5/8-11

Product Description

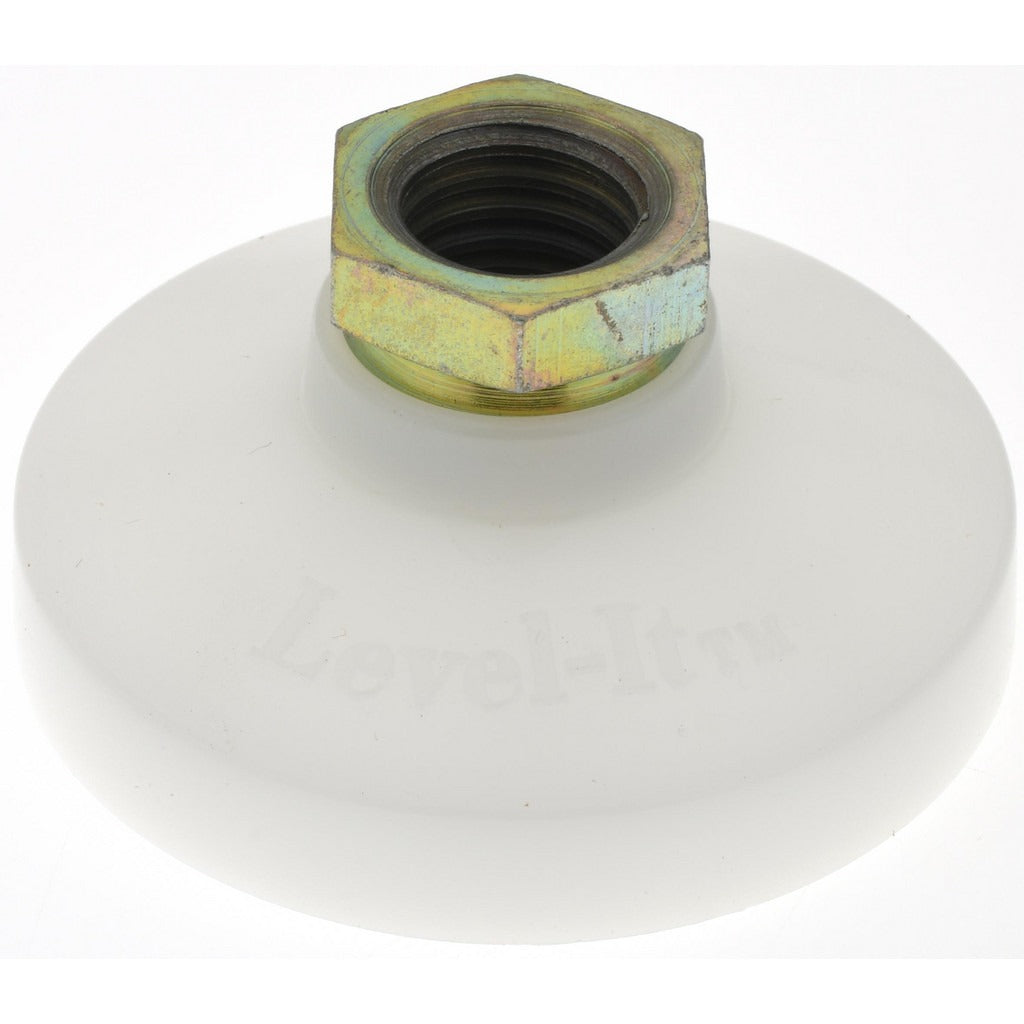

The GIBRALTAR DTS-3-G is a tapped pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment bases, and fabricated assemblies. The pivotal pad design allows the mount to self-align to uneven floor surfaces, distributing load evenly and reducing stress concentrations at the contact point. Rated at 1,200 lb load capacity with a 2.5-inch base diameter and an overall length of 1.25 inches, this mount uses a 5/8-11 threaded stud for secure installation into tapped holes in machine frames or base plates. Both the pad and stud are constructed from steel for durability in industrial and commercial environments. Maintenance technicians, millwrights, and equipment installers work with this type of hardware.

This leveling mount is suited for industrial machinery installation, fabrication shops, production equipment bases, and commercial HVAC or mechanical equipment that requires floor-level adjustment and vibration isolation. The 5/8-11 thread size makes it compatible with standard tapped mounting holes found on a wide range of equipment bases. The pivotal action accommodates floors that are not perfectly level without requiring shimming or custom fabrication work.

Key Features

• 1,200 lb load capacity for heavy equipment support
• Pivotal pad self-aligns to uneven or sloped floor surfaces
• 5/8-11 threaded stud fits standard tapped base plate holes
• 2.5-inch base diameter provides stable floor contact area
• Steel pad and steel stud construction for industrial durability
• Compact 1.25-inch overall length suits low-profile mounting applications

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for machinery, equipment frames, and fabricated bases that use a 5/8-11 tapped mounting point.

Installation Notes

Installation is typically performed by millwrights or equipment technicians during machinery setup or relocation. De-energize and lock out all power to the equipment before lifting or repositioning. Thread the stud into the tapped hole in the equipment base using a 7/8-inch hex wrench, and adjust height as needed before tightening to secure the mount position. Do not exceed the rated 1,200 lb load capacity per mount.
