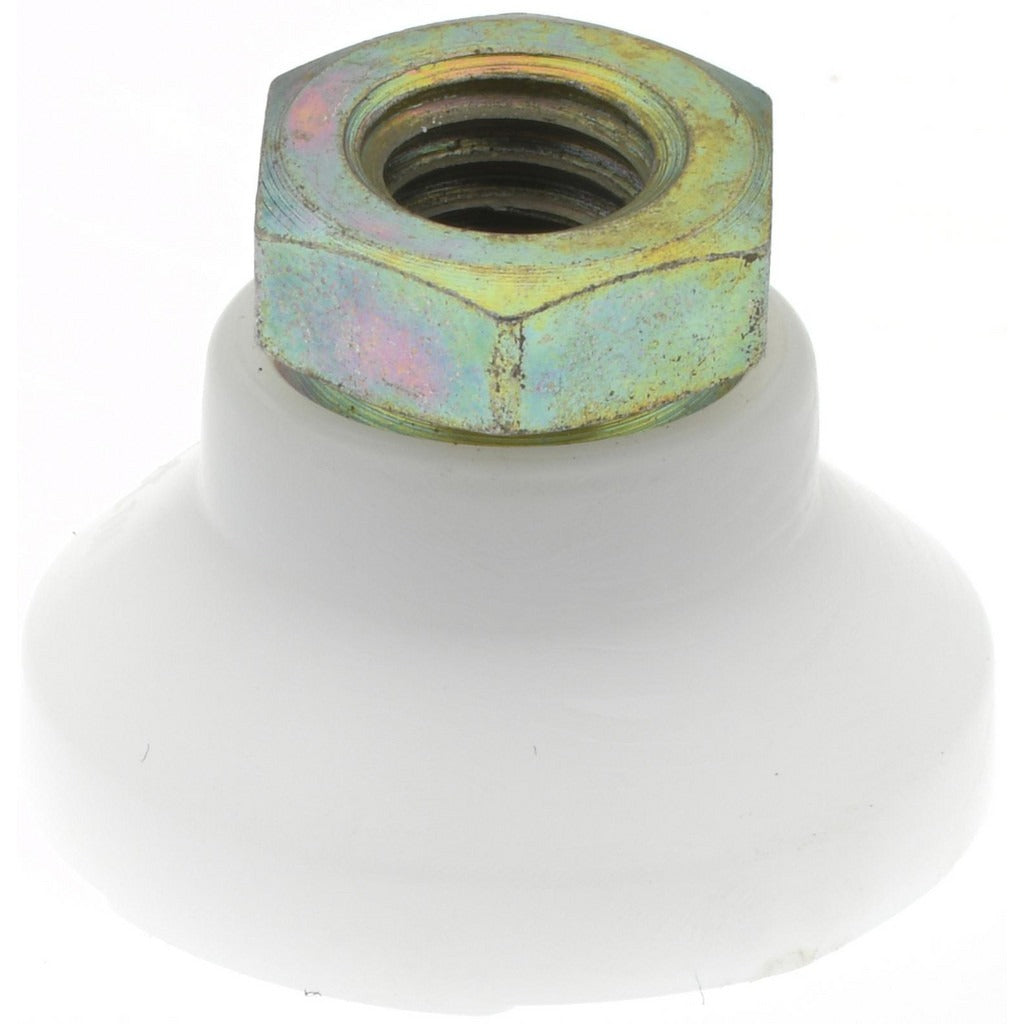

Gibraltar DTS-1-G Tapped Pivotal Leveling Mount 3/8-16

Product Description

The GIBRALTAR DTS-1-G is a tapped pivotal leveling mount designed for industrial and commercial equipment leveling applications. The pivoting pad allows angular adjustment to compensate for uneven mounting surfaces, keeping equipment stable and properly aligned. Constructed with a steel stud and steel pad, this mount handles a static load capacity of 300 pounds. The 3/8-16 threaded stud integrates directly into tapped mounting holes on machine bases, frames, or enclosures. With a compact overall length of 7/8 inch and a base diameter of 1-1/4 inches, it suits tight clearance installations. Maintenance technicians and equipment installers use this hardware to level production machinery, enclosures, and support structures.

This leveling mount is suited for light-duty to medium-duty stationary equipment installations in industrial, commercial, and mechanical room environments. It is used wherever a threaded mounting point requires height and angle adjustment to account for floor irregularities or surface variation. The pivoting steel pad maintains full contact with the floor even when the stud is not perfectly perpendicular, distributing the load evenly and reducing point stress on flooring surfaces.

Key Features

• Pivotal pad design compensates for angled or uneven mounting surfaces
• 300 lb static load capacity per mount
• 3/8-16 tapped thread for direct integration into machine base mounting holes
• Steel stud and steel pad construction for durability in industrial environments
• Compact 7/8 inch overall length suits tight clearance applications
• 1-1/4 inch base diameter provides stable floor contact footprint

Compatibility

Designed as an OEM-style leveling mount for equipment frames, machine bases, and enclosures with 3/8-16 tapped mounting points requiring adjustable leveling support.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or equipment installers. Thread the stud into the tapped hole on the equipment base and adjust height until the equipment is level, then lock in position per the equipment manufacturer's guidance. A 5/8 inch hex wrench or open-end wrench is used to turn the stud during adjustment. Ensure the mating threaded hole is clean and free of debris before installation to prevent cross-threading or improper seating.
