Gibraltar DCIM32-127 Die Spring Medium-duty Blue

Product Description

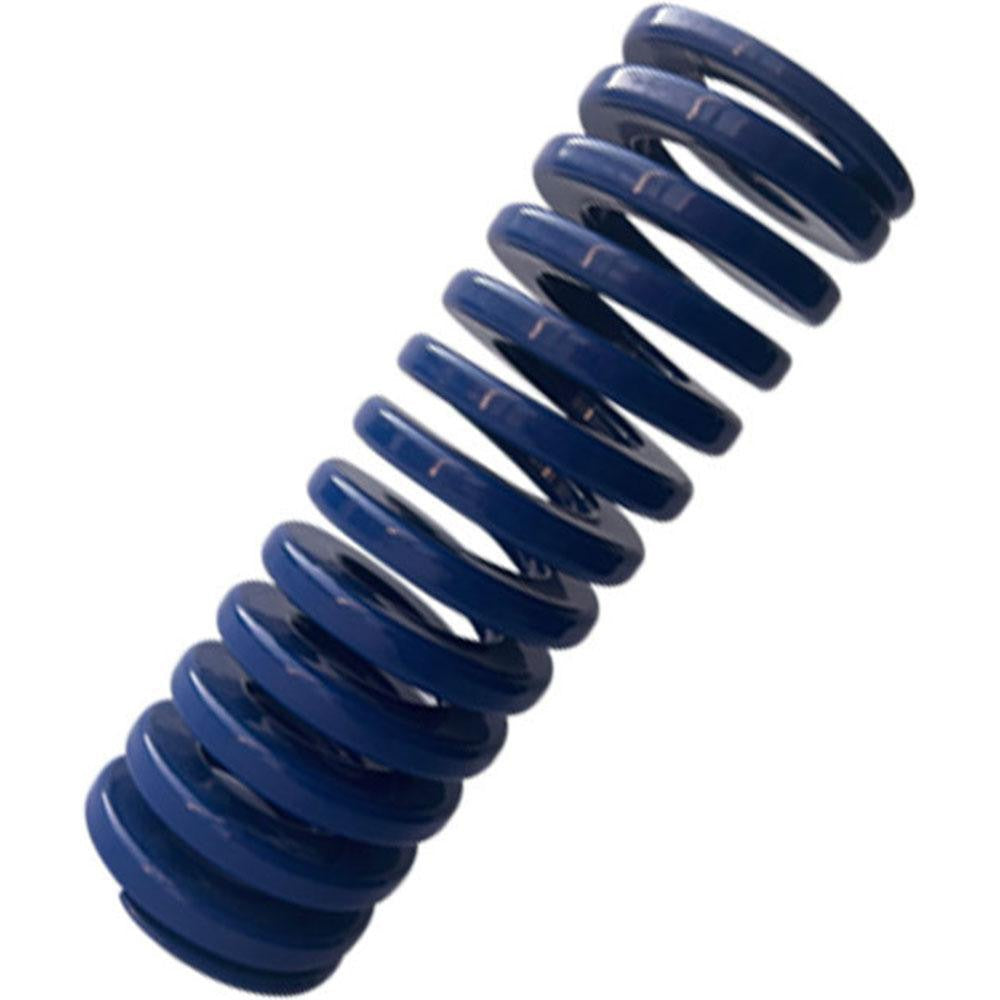

The GIBRALTAR DCIM32-127 is a medium-duty die spring designed for use in stamping dies, presses, and industrial tooling applications. Built from chromium alloy steel with a trapezoidal wire cross-section, it delivers a maximum deflection load of 531.00 pounds over a maximum deflection of 2.2300 inches. The free length is 5 inches, with a 1-1/4 inch hole diameter and a 5/8 inch rod diameter. The blue color coding identifies the medium-duty load rating at a glance, consistent with international die spring color standards. This part weighs approximately 0.58 pounds and is intended for installation by toolmakers, die setters, and maintenance machinists in production environments.

The DCIM32-127 is suited for standard die and mold applications requiring repeatable, controlled spring force. It fits within tooling assemblies where a 1-1/4 inch bore accommodates the outer diameter and a 5/8 inch guide rod supports axial alignment. Typical installations include punch and die sets, injection mold components, and fixture clamping systems in both light manufacturing and automotive tooling environments. The spring rate of 238.00 pounds per inch provides predictable load progression through the stroke. This part ships individually and is sold as a single unit.

Key Features

• Chromium alloy steel construction with trapezoidal wire shape for high load capacity in a compact envelope
• Medium-duty blue color coding for quick visual identification per international die spring standards
• Maximum deflection load of 531.00 pounds with a spring rate of 238.00 pounds per inch
• 5 inch free length with 2.2300 inches of maximum deflection travel
• Meets NAAMS, ISO 10243, and ISO 9001:2015 standards
• Compatible with 5/8 inch guide rods and 1-1/4 inch bore tooling

Compatibility

Designed as a direct-fit replacement or new-build component for die and mold assemblies using a 1-1/4 inch hole diameter and 5/8 inch rod diameter with a 5 inch free length requirement, conforming to NAAMS and ISO 10243 dimensional standards.

Installation Notes

Installation is performed by qualified toolmakers or die maintenance technicians. The guide rod and bore should be free of burrs and properly lubricated before seating the spring to prevent premature wear. Ensure the die set or press is fully de-energized and pressure is relieved before replacing springs. Do not compress beyond the rated maximum deflection of 2.2300 inches, as solid contact will damage the spring and surrounding tooling.
