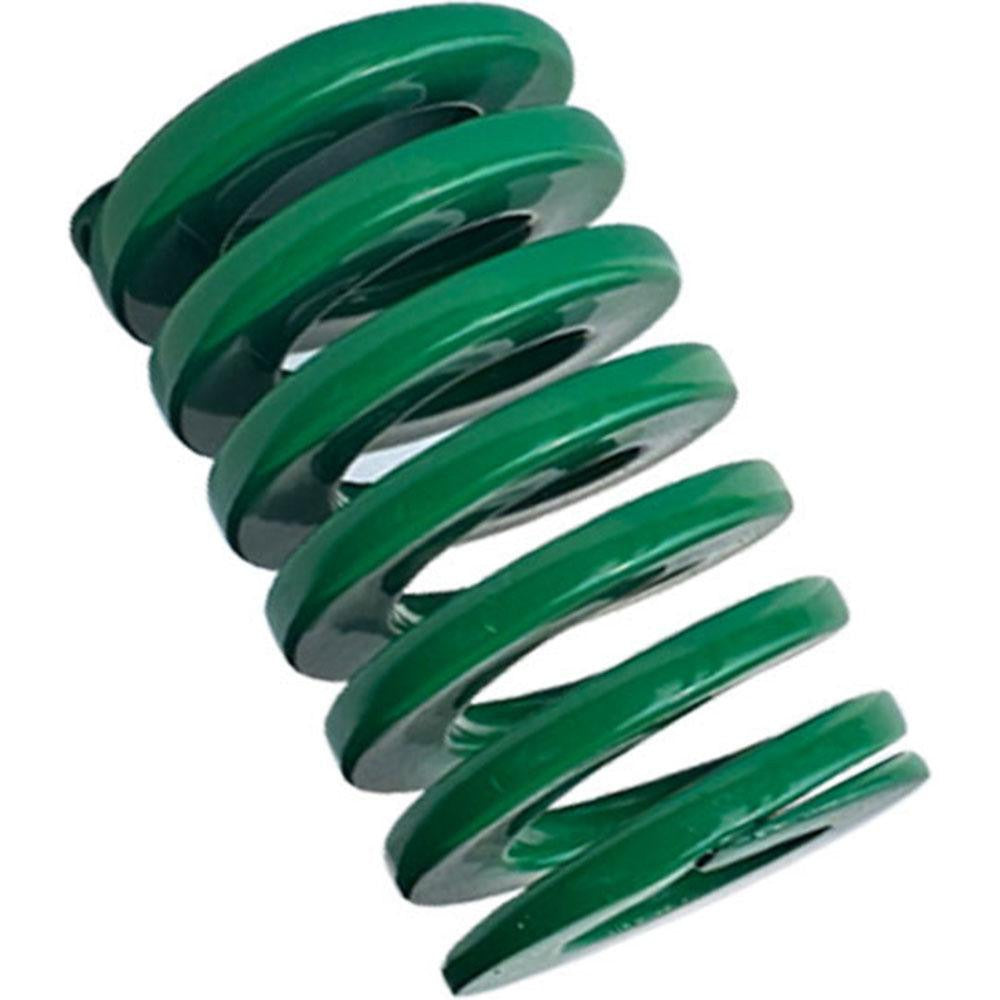

Gibraltar DCIL25-38 Die Spring Light Duty Green

Product Description

The GIBRALTAR DCIL25-38 is a light-duty die spring designed for use in stamping dies, molds, and precision tooling fixtures. It features a 1 inch hole diameter, a 0.5 inch rod diameter, and a 1.5 inch free length. Wound from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers a rated maximum deflection load of 300 pounds over a maximum deflection distance of 0.81 inches. The green color coding identifies the light-duty load rating, making it easy to sort and identify in a toolroom or die shop environment. Toolmakers, die setters, and precision machinists are the primary installers of this component.

This die spring suits residential and commercial tooling applications where controlled spring force is needed inside stamping dies, injection molds, jigs, and fixtures. It is well suited for applications requiring consistent return force with moderate stroke. The 1.5 inch free length and 0.5 inch rod diameter make it compatible with standard die set pocket dimensions common in light-duty tooling designs. No specific OEM equipment compatibility is stated by the supplier; consult your die or mold drawing for confirmation of fit.

Key Features

• Trapezoidal wire cross-section for higher load capacity relative to wire volume compared to round wire springs
• Chromium alloy steel construction for durability under repeated compression cycles
• Green color coding denotes light-duty rating for quick visual identification
• Maximum deflection load of 300 pounds at 0.81 inches of travel
• Spring rate of 369 pounds per inch for predictable, linear force output
• Meets NAAMS, ISO 10243, and ISO 9001:2015 standards

Compatibility

Designed as an OEM-style replacement or new-installation die spring for light-duty stamping dies, molds, and tooling fixtures requiring a 1 inch hole diameter and 0.5 inch rod diameter configuration.

Installation Notes

Die springs are installed by toolmakers or die maintenance technicians in a machine shop or press room environment. Always relieve all press tonnage and lock out the press ram before accessing the die set. Ensure the spring pocket depth and rod clearance match the compressed length at maximum load of 0.81 inches to prevent coil bind. Never exceed the rated maximum deflection, as over-compression will reduce spring fatigue life and can cause premature failure.
