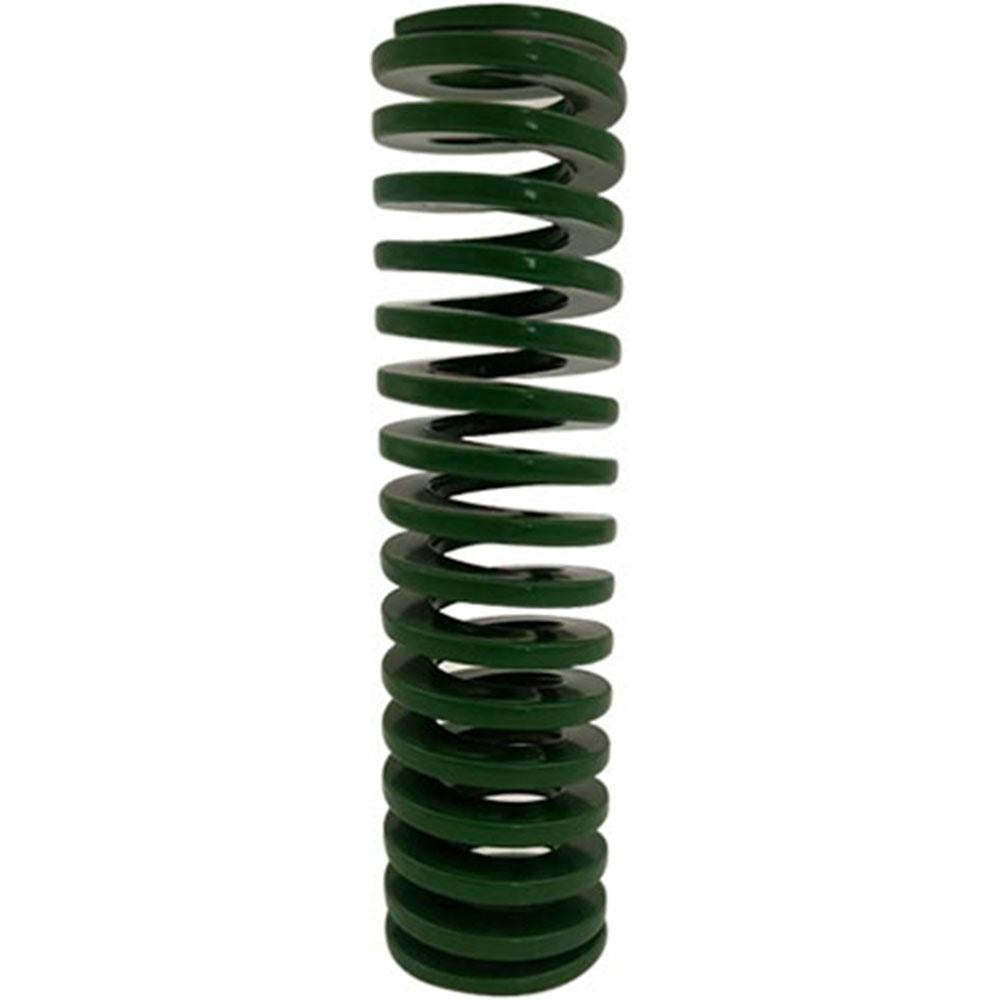

Gibraltar DCIL25-114 Die Spring Light-duty Green

Product Description

The GIBRALTAR DCIL25-114 is a light-duty die spring designed for use in stamping dies, molds, and tooling fixtures where consistent, reliable spring force is required. It features a 1-inch hole diameter, a 0.5-inch rod diameter, and a free length of 4.5 inches. The spring is wound from chromium alloy steel with a trapezoidal wire cross-section, which increases contact area and improves load distribution compared to round wire. A maximum deflection load of 257 pounds and a maximum deflection of 2.42 inches define the operating envelope. The green color coding indicates light-duty classification under ISO 10243. Toolmakers, die setters, and press shop technicians are the primary installers.

This spring is suited for light-load tooling applications in stamping, injection mold tooling, and general fixture work. The 4.5-inch free length and 0.5-inch rod diameter make it a practical fit for standard die sets and mold bases where a light-duty return force is needed. It is sold individually and is stocked as a replacement or web-only SKU for maintenance and repair of existing tooling assemblies. The trapezoidal wire profile and chromium alloy steel construction are well matched to cyclic loading environments common in production stamping operations.

Key Features

• Light-duty classification with a maximum deflection load of 257 pounds
• Trapezoidal wire cross-section for improved load distribution and longer fatigue life
• Chromium alloy steel construction for consistent performance under cyclic loading
• Green color coding per ISO 10243 light-duty standard for quick visual identification
• Meets NAAMS and ISO 10243 dimensional standards, and manufactured under ISO 9001:2015 registered quality system
• Maximum deflection of 2.42 inches with a spring rate of 106 pounds per inch

Compatibility

Designed as an OEM-style replacement light-duty die spring for standard stamping dies, mold bases, and tooling fixtures that accept a 1-inch hole diameter and 0.5-inch rod diameter spring per NAAMS and ISO 10243 specifications.

Installation Notes

Die springs are installed and serviced by toolmakers or press maintenance technicians. Always de-energize and lock out the press or machine before removing or installing die springs. Inspect the mating rod and housing bore for wear or damage before installing a replacement spring. Never compress a die spring beyond its rated maximum deflection, as over-compression can cause permanent set or coil clash and reduce spring life.
