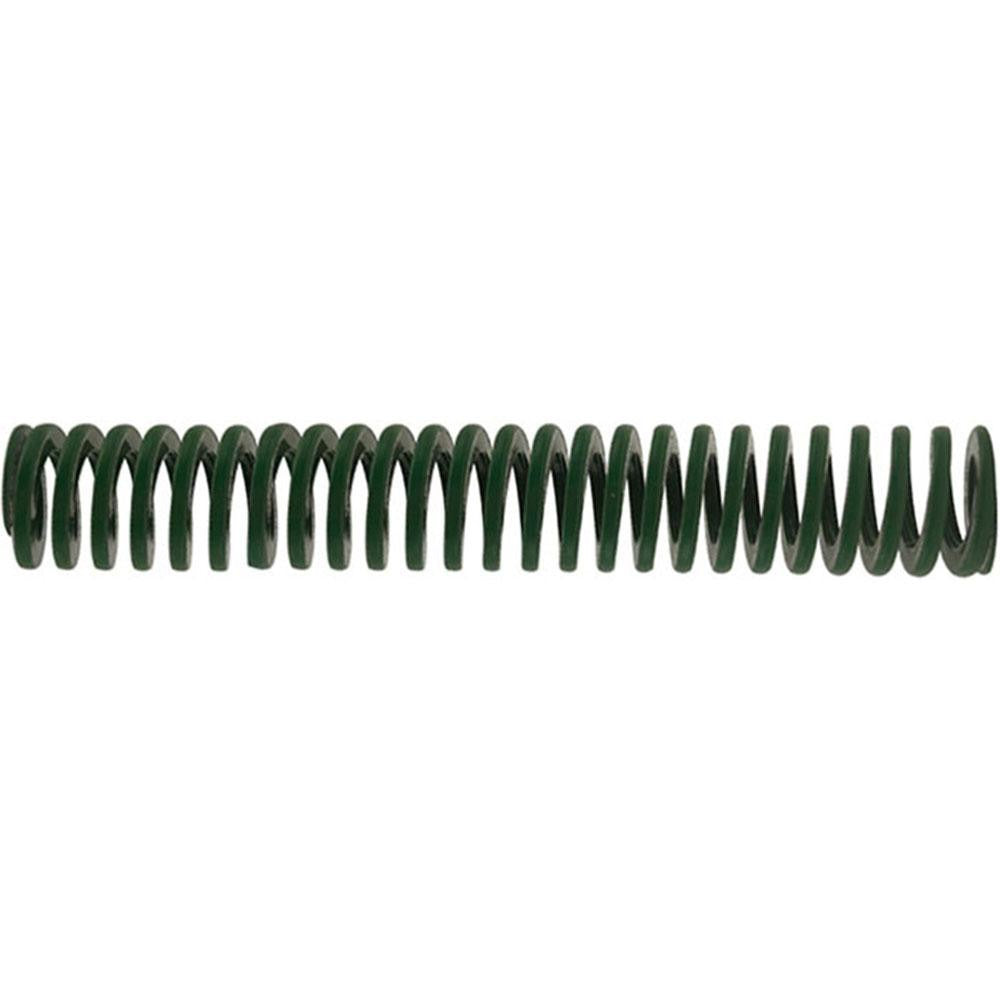

Gibraltar DCIL10-76 Die Spring 3/8 in Light-duty Green

Product Description

The GIBRALTAR DCIL10-76 is a light-duty die spring designed for use in tooling, stamping dies, and industrial press applications. Built from chromium alloy steel with a trapezoidal wire cross-section, this spring delivers a maximum deflection load of 41.00 pounds and a maximum deflection of 1.71 inches over a 3-inch free length. The green color coding follows the ISO 10243 international standard for light-duty classification, making identification straightforward during tooling setup and maintenance. It weighs approximately 0.02 pounds and is sold individually. This component is typically installed and serviced by tool-and-die technicians, maintenance machinists, and industrial equipment specialists.

This die spring suits light-duty applications in stamping dies, injection molds, jigs, and fixtures where consistent return force and controlled deflection are required. The 3/8-inch hole diameter and 3/16-inch rod diameter dimensions make it compatible with standard light-duty die spring cavities and guide rods in production tooling environments. It is suited for both original equipment builds and maintenance replacement in manufacturing and industrial settings.

Key Features

• Light-duty classification with green color coding per ISO 10243 international standard
• Trapezoidal wire shape for higher load capacity relative to round wire in the same envelope
• Chromium alloy steel construction for fatigue resistance under cyclic loading
• Spring rate of 24.00 pounds per inch for predictable, linear deflection behavior
• Meets NAAMS and ISO 10243 standards; manufactured under ISO 9001:2015 registered quality system
• Compact 3-inch free length compresses to 1.71 inches at maximum load

Compatibility

Designed as an OEM-style replacement or build-specification die spring for light-duty tooling applications requiring a 3/8-inch hole diameter, 3/16-inch rod diameter, and 3-inch free length in standard die spring pockets.

Installation Notes

Installation and replacement should be performed by qualified tool-and-die technicians or maintenance personnel with the press or tooling fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Verify that the mating guide rod diameter and spring pocket bore match the 3/16-inch rod and 3/8-inch hole specifications before installation. Do not exceed the rated maximum deflection of 1.71 inches, as over-compression will reduce service life and may cause premature failure. Inspect the spring seat and guide rod for wear or damage before reinstalling.
