Gibraltar CP4284-G Soft Core Pin 15/32 in Steel

Product Description

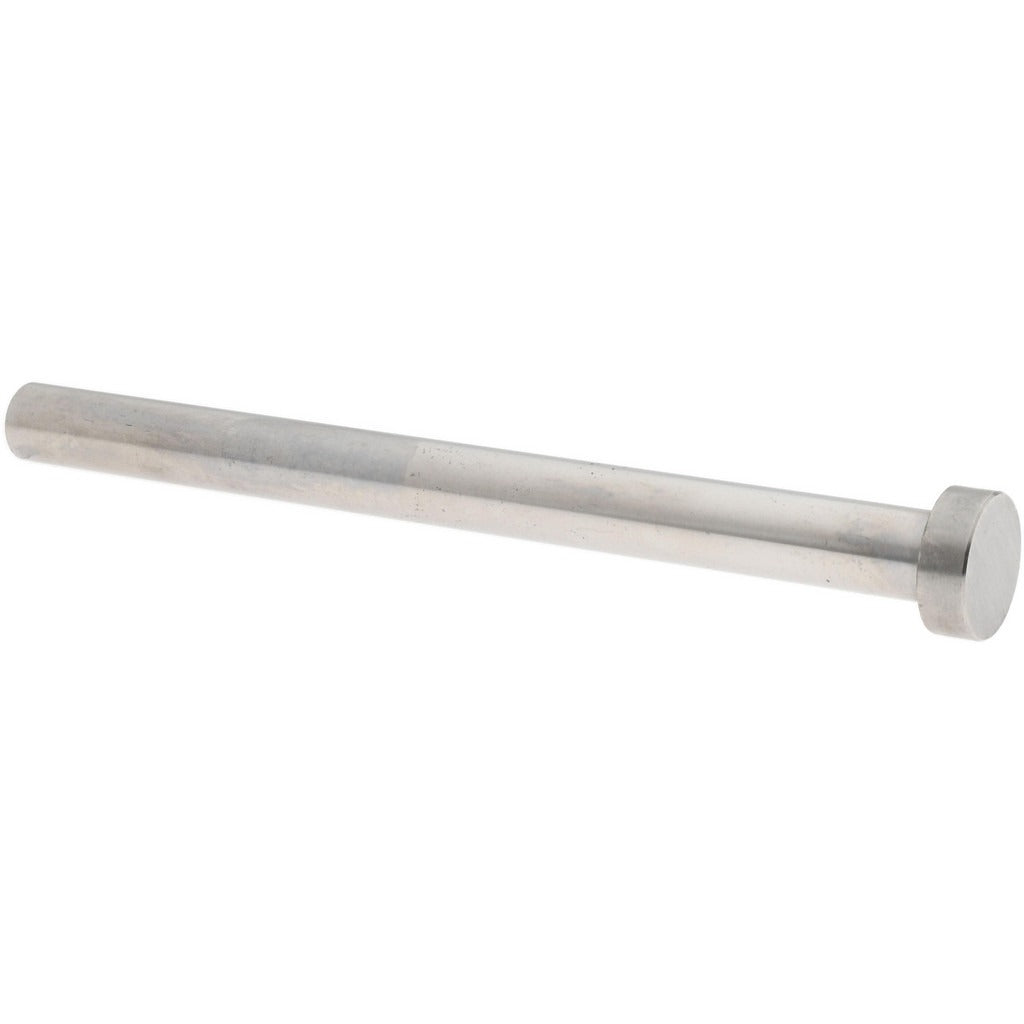

The GIBRALTAR CP4284-G is a soft core pin designed for use in tooling, fixturing, and workholding applications across machine shops and fabrication environments. With a pin diameter of 15/32 inches and an overall length of 6 inches, this pin is manufactured from steel and features a soft hardness rating, making it suitable for applications where controlled deformation or minimal marring of mating components is required. The 3/4-inch head diameter and 1/4-inch head height provide positive seating against workpiece surfaces. Licensed machinists, tool and die makers, and industrial maintenance technicians are the primary installers and users of this component.

This soft core pin is suited for production tooling, jig and fixture setups, and general-purpose industrial assembly applications. The soft hardness classification makes it appropriate for use in locations where repeated removal and reinstallation are expected, or where interference fit tolerances require a more forgiving pin material. It is a single-piece component sold individually and is compatible with standard pin-retention bores sized to accept a 15/32-inch diameter pin.

Key Features

• Pin diameter of 15/32 inches for precise fit in standard tooling bores
• Overall length of 6 inches with a usable pin length of 5.75 inches
• Soft core hardness rating allows controlled fit and easier field removal
• Steel construction provides durability in industrial fixturing environments
• 3/4-inch head diameter with 1/4-inch head height for positive shoulder seating
• Sold as a single unit, no minimum bundle required

Compatibility

Designed as a standard soft core pin for use in tooling, jig, fixture, and workholding setups that require a 15/32-inch diameter pin bore.

Installation Notes

Installation is typically performed by machinists or tool and die technicians using a pin press or soft-faced mallet. Ensure the mating bore is clean and free of debris before insertion. Because this pin carries a soft hardness rating, avoid using hardened driving tools that may deform the head. Follow applicable shop safety procedures and de-energize or lock out any machinery before servicing associated tooling or fixtures.
