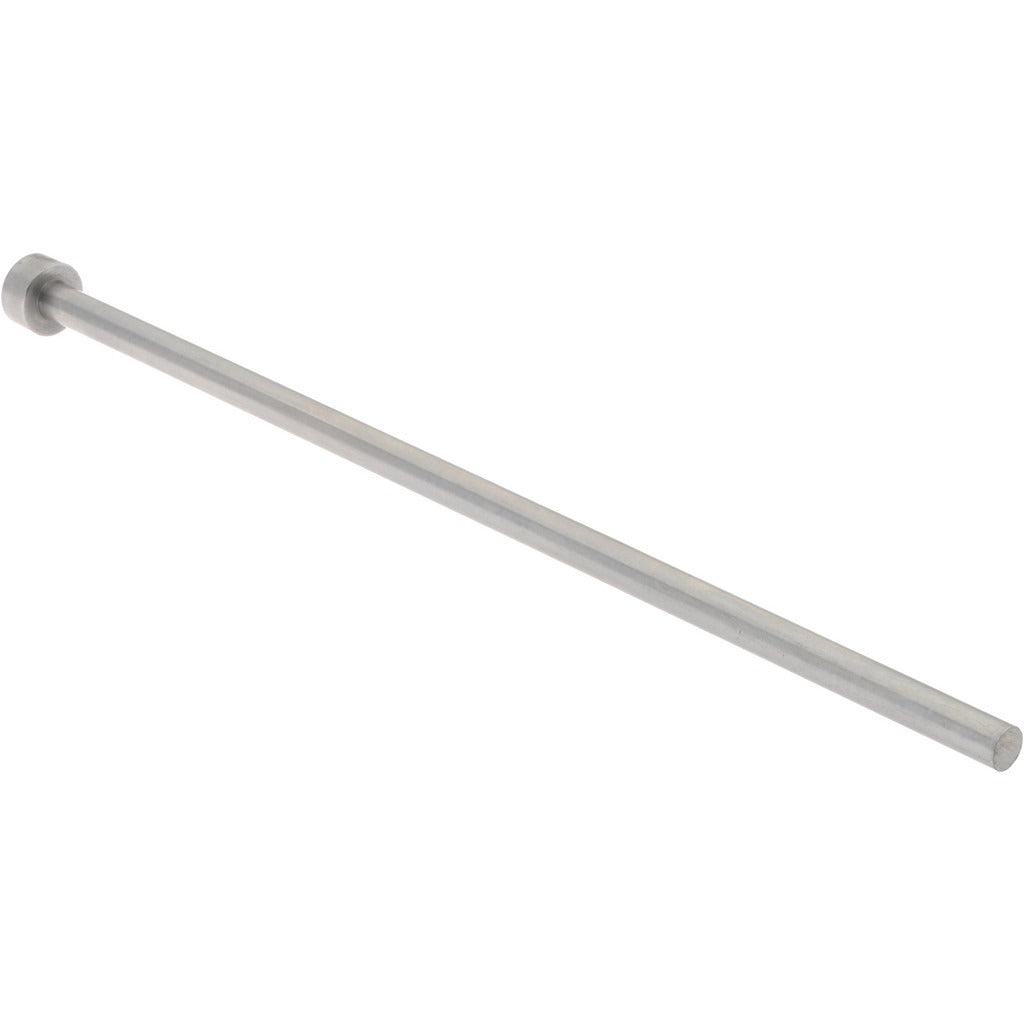

Gibraltar CP4254-G Soft Core Pin 3/16 in 6 in Oal Steel

Product Description

The GIBRALTAR CP4254-G is a soft core pin designed for use in punch press tooling, jig and fixture work, and general industrial assembly applications. This pin features a 3/16 inch pin diameter, a 6 inch overall length, and a 3/8 inch head diameter with a 3/16 inch head height. The pin length measures 5.812 inches. Constructed from steel with a soft hardness rating, this pin is suited for applications where the pin is intended to yield or shear under load rather than transfer force to surrounding toolwork components. It is installed by toolmakers, machinists, and maintenance mechanics working with press-fit or locating pin assemblies.

Soft core pins are commonly used in die sets, locating fixtures, and tool and die assemblies where a replaceable or sacrificial pin is required. The soft core construction allows the pin to absorb impact or overload conditions, protecting more expensive tooling components. This pin is appropriate for light to medium duty industrial environments in both production shop and maintenance repair contexts.

Key Features

• 3/16 inch pin diameter for precise locating and alignment applications
• 6 inch overall length accommodates deeper fixture and die set installations
• 3/8 inch head diameter provides a positive seating surface
• Soft steel construction designed to yield under overload, protecting surrounding tooling
• 5.812 inch usable pin length below the head

Compatibility

Designed as an OEM-style replacement or standard component for industrial punch press tooling, die sets, and locating fixture assemblies requiring a 3/16 inch soft core pin with a 6 inch overall length.

Installation Notes

Soft core pins are typically installed and serviced by toolmakers or maintenance mechanics using standard press-fit or hand-drive methods appropriate to the fixture design. Ensure the receiving bore is clean and dimensionally correct before installation to avoid damage to the pin or workpiece. Do not substitute a hardened pin where a soft core pin is specified, as this can cause unintended force transfer and damage to surrounding tooling components. Follow applicable shop safety procedures when working with press equipment or striking tools.
