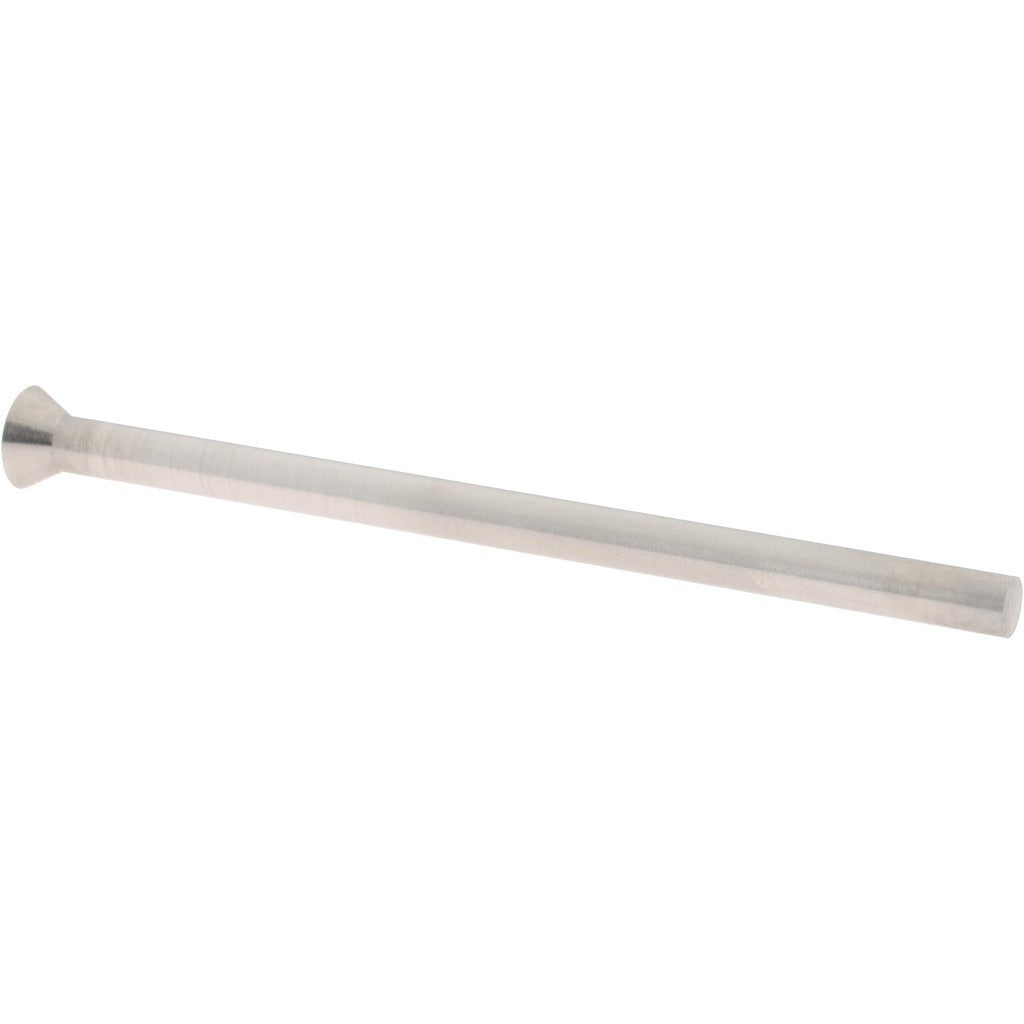

Gibraltar CP-1094 Conical Pin 0.14in Hss Nitride

Product Description

The GIBRALTAR CP-1094 is a conical pin machined from high speed steel with a nitride finish. It features a 0.14 inch pin diameter, a 0.252 inch head diameter, and a 0.1764 inch head height, with an overall length of 2.5 inches. The conical head geometry provides precise locating and retention force in tooling fixtures, jigs, and workholding assemblies. The nitride surface treatment improves wear resistance and surface hardness. This pin is intended for use by toolmakers, machinists, and maintenance technicians working on precision fixturing applications.

The CP-1094 is suited for use in machine shop environments where accurate part location and repeatable positioning are required. It fits standard conical pin bores in fixture plates, jig bodies, and production tooling. The high speed steel construction holds up under repeated insertion and removal cycles common in production or maintenance settings. Sold individually, this pin is appropriate for bench-level tooling repair or new fixture builds requiring a small-diameter conical locating element.

Key Features

• Conical pin geometry for precise locating and positive retention in fixture assemblies
• High speed steel construction for durability and resistance to wear
• Nitride finish improves surface hardness and reduces friction during installation and removal
• 0.14 inch pin diameter suits small-bore tooling applications
• 0.252 inch head diameter provides a positive seating shoulder
• 2.5 inch overall length accommodates standard fixture plate depths

Compatibility

Designed as an OEM-style replacement or direct-use conical locating pin for precision tooling fixtures and jig plates requiring a 0.14 inch pin diameter conical pin.

Installation Notes

Installation is typically performed by a toolmaker or machinist. Ensure the mating bore is clean and free of debris before pressing or driving the pin into position. Use appropriate hand tools or an arbor press to seat the pin without damaging the head or bore geometry. Follow applicable shop safety procedures when working with precision tooling components.
