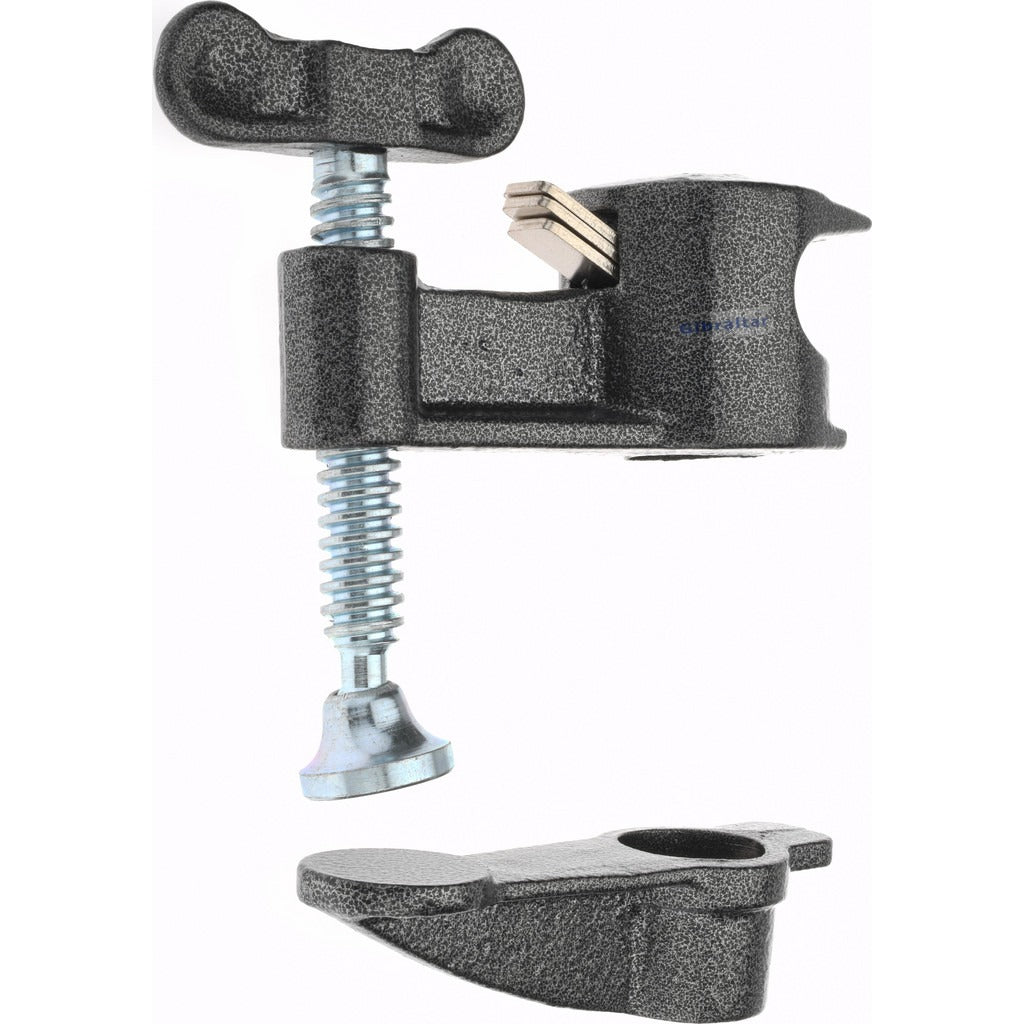

Gibraltar CCM00416 Deep Throat Pipe Clamp 0.75 in Pipe

Product Description

The GIBRALTAR CCM00416 is a deep throat pipe clamp designed to secure 0.75-inch pipe in applications where standard throat-depth clamps cannot reach. With a 2.5-inch throat depth and a 2.5-inch clamp face, this clamp provides a firm, stable grip on pipe that sits set back from a mounting surface or within a recessed channel. It weighs 3.1 pounds, indicating heavy-duty construction suited for demanding mechanical, plumbing, and HVAC support applications. Licensed plumbers, pipefitters, and mechanical contractors are the primary installers of this type of hardware.

This deep throat pipe clamp is used where pipe routing requires clearance between the pipe centerline and the mounting substrate — such as when pipe runs parallel to a structural member, inside a cabinet enclosure, or along a recessed wall chase. The extended 2.5-inch throat depth accommodates insulated pipe or pipe that passes over obstructions. It is appropriate for residential and light commercial mechanical systems requiring secure pipe support at standard 0.75-inch pipe sizing.

Key Features

• Deep throat design with 2.5-inch throat depth for recessed or offset pipe mounting
• 2.5-inch clamp face provides broad contact area for stable pipe support
• Fits 0.75-inch pipe — a common size in residential and light commercial plumbing and HVAC
• Heavyweight construction at 3.1 pounds for durable, long-term support
• Single-piece packaging suitable for individual repair and retrofit jobs

Compatibility

Designed as an OEM-style replacement and standard-fit pipe clamp for 0.75-inch pipe in residential and light commercial plumbing, mechanical, and HVAC piping systems.

Installation Notes

Installation is performed by licensed plumbers, pipefitters, or mechanical contractors following applicable IPC and IFGC support-spacing requirements. Shut off the relevant water, gas, or fluid supply line before adjusting or repositioning any pipe support hardware. Ensure the mounting surface is structurally sound and that fastener selection is appropriate for the substrate material. Do not overtighten the clamp face hardware, as excessive force can deform the pipe wall or pipe insulation.
