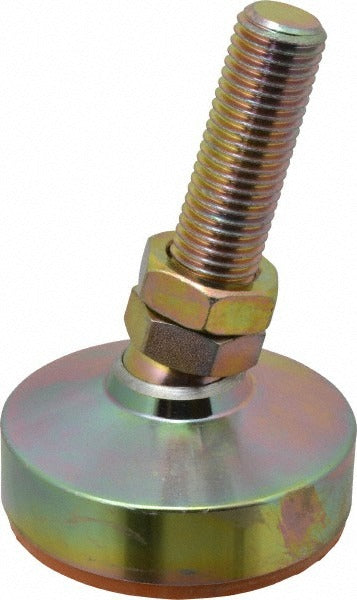

Gibraltar BSW-5H-G Studded Leveling Mount 1-8 Thread

Product Description

The GIBRALTAR BSW-5H-G is a heavy-duty studded leveling mount designed for industrial and commercial machine leveling applications. It features a 1-8 thread size, a zinc stud, and a zinc pad, delivering a rated load capacity of 11,800 pounds. The overall length is 6 inches, and the base diameter measures 4 inches, making it suitable for equipment that demands stable, adjustable floor support. Millwrights, maintenance technicians, and mechanical contractors install this type of mount beneath machinery, production equipment, and fabrication tables to achieve precise leveling on concrete or finished floors.

This studded leveling mount is intended for use in manufacturing facilities, mechanical rooms, and industrial production environments where heavy equipment must be leveled and stabilized. The zinc construction on both the stud and pad provides corrosion resistance appropriate for indoor industrial settings. Its 1-8 thread pitch allows for incremental height adjustment, and the 1-3/8 inch hex size accommodates standard wrench tooling during setup and periodic re-leveling.

Key Features

• 11,800 lb rated load capacity for heavy industrial equipment support
• 1-8 thread size with 1-3/8 inch hex for standard wrench fitment
• 4 inch base diameter distributes load across a broad footprint
• Zinc stud and zinc pad construction for corrosion resistance in indoor environments
• 3-1/2 inch stud length with 6 inch overall length for generous height adjustment range

Compatibility

Designed as an OEM-style replacement or direct-install leveling mount for industrial machinery, fabrication equipment, and production tables requiring a 1-8 threaded studded mount with a 4 inch base diameter.

Installation Notes

Installation is typically performed by millwrights or maintenance mechanics using a wrench sized for the 1-3/8 inch hex. Ensure the mounting surface or equipment foot is drilled and tapped to the correct 1-8 thread specification before installation. Confirm the combined load across all mounts does not exceed the per-mount rated capacity. Follow applicable machinery installation codes and the equipment manufacturer guidelines when leveling production equipment.
